Description
SPECIFICATIONS:
COOLER SPECIFICATION |
|
Socket compatibility |
Intel LGA1851, LGA1700, LGA1200, LGA1156, LGA1155, LGA1151, LGA1150 and AMD AM5, AM4 (Current socket compatibility applies to all coolers purchased since Q2 2022. For older coolers, please refer to this chart.) |
Height (without fan) |
160 mm |
Width (without fan) |
150 mm |
Depth (without fan) |
135 mm |
Weight (without fan) |
980 g |
Height (with fan) |
165 mm |
Width (with fan) |
150 mm |
Depth (with fan) |
161 mm |
Weight (with fan) |
1320 g |
Material |
Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating |
NSPR |
183 |
Max. TDP |
see NSPR |
Fan compatibility |
140x150x25 (with 120mm mounting holes), 140x140x25 (with 120mm mounting holes), 120x120x25 |

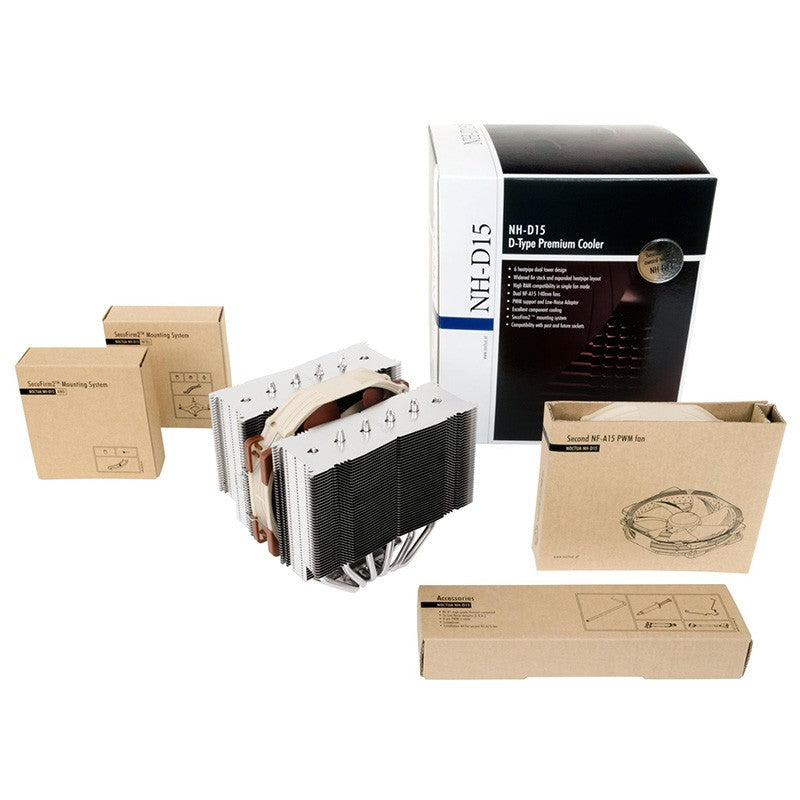

Scope of delivery |
2x NF-A15 PWM premium fan 2x NA-RC7 Low-Noise Adaptor (L.N.A) NA-YC1 4-pin PWM splitter cable NT-H1 high-grade thermal compound SecuFirm2™ mounting kit Noctua metal case-badge |
FAN SPECIFICATION |
|
Model |
2x Noctua NF-A15 PWM |
Bearing |
SSO2 |
Max. rotational speed (+/- 10%) |
1500 RPM |
Max. rotational speed with L.N.A. (+/- 10%) |
1200 RPM |
Min. rotational speed @ 20% PWM (+/-20%) |
300 RPM |
Max. airflow |
140,2 m/h |
Max. airflow with L.N.A. |
115,5 m/h |
Max. acoustical noise |
24,6 dB(A) |
Max. acoustical noise with L.N.A. |
19,2 dB(A) |
Voltage range |
12 V |
MTTF |
> 150.000 h |
