Description
SPECIFICATIONS:
Size |
140x140x25 mm |
Mounting hole spacing |
124.5x124.5 mm |
Connector & pin-configuration |
4-pin PWM |
Cable length |
20cm + 30cm NA-EC1 extension cable |
Bearing |
SSO2 |
Blade geometry |
A-Series with Flow Acceleration Channels |
Frame technology |
AAO (Advanced Acoustic Optimisation) |
Material |
Sterrox® LCP |
Rotational speed (+/- 10%) |
1500 RPM |
Rotational speed with L.N.A. (+/- 10%) |
1250 RPM |
Airflow |
155.6 m/h |
Airflow with L.N.A. |
127.1 m/h |
Acoustical noise |
24.8 dB(A) |
Acoustical noise with L.N.A. |
19.7 dB(A) |
Static pressure |
2.56 mm H₂O |
Static pressure with L.N.A. |
1.3 mm H₂O |
Input power (max.) |
2.28 W |
Max. input current |
0.19 A |
Operating voltage |
12 V |
MTTF |
> 150,000 h |

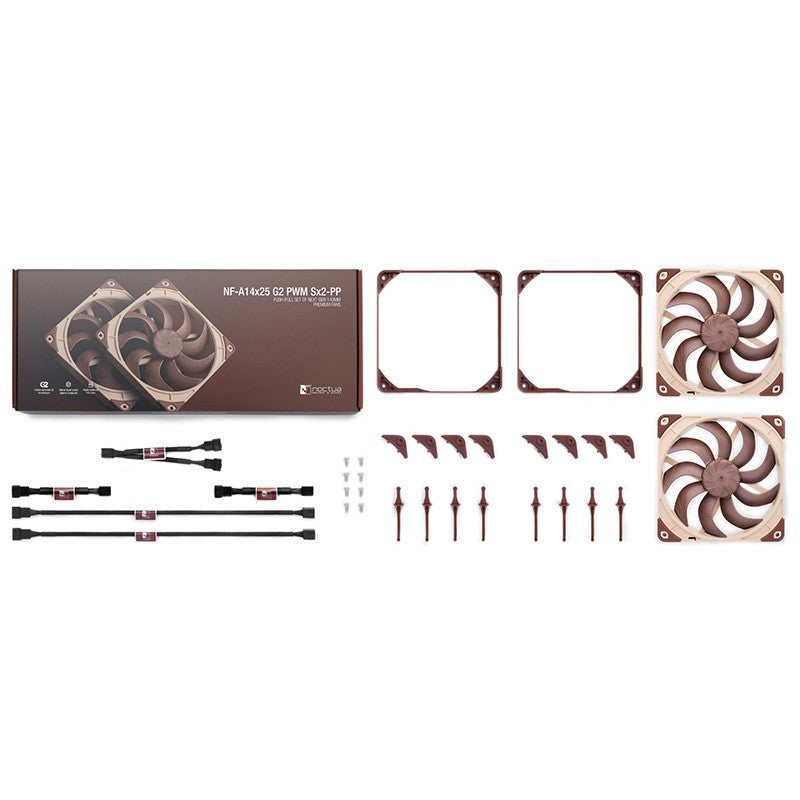

Scope of delivery |
NF-A14x25 G2 PWM PPA NF-A14x25 G2 PWM PPB 2x NA-RC16 Low-Noise Adaptor (L.N.A.) NA-YC1 4-pin PWM splitter cable 2x NA-EC1 30cm extension cable 8x NA-AV2 anti-vibration mounts 2x NA-AVG2-LR anti-vibration gasket for water cooling radiators 8x NA-AVP1-LR load-relief anti-vibration pads Fan screws |
