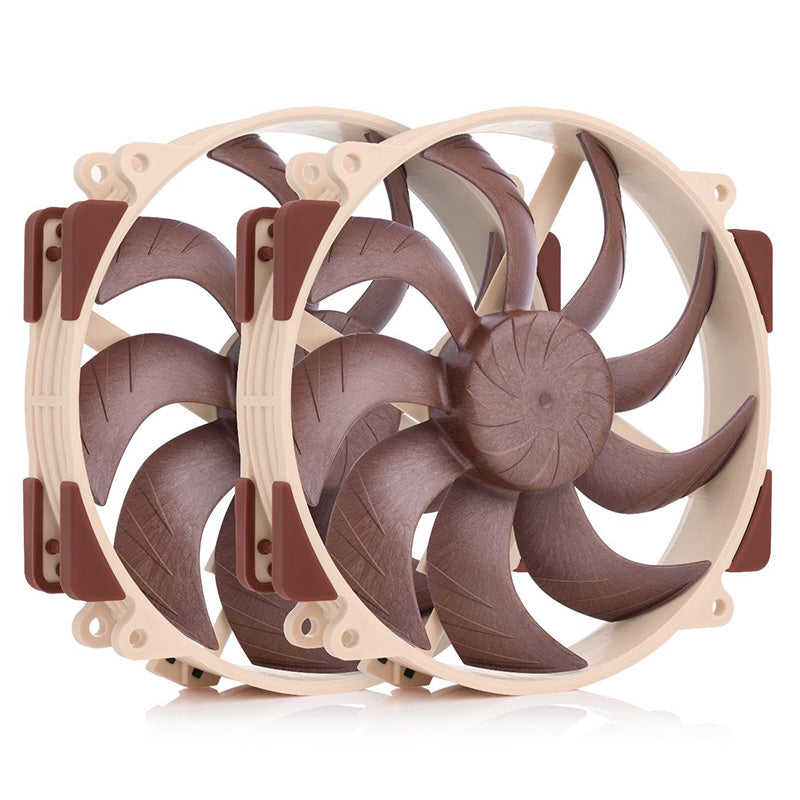

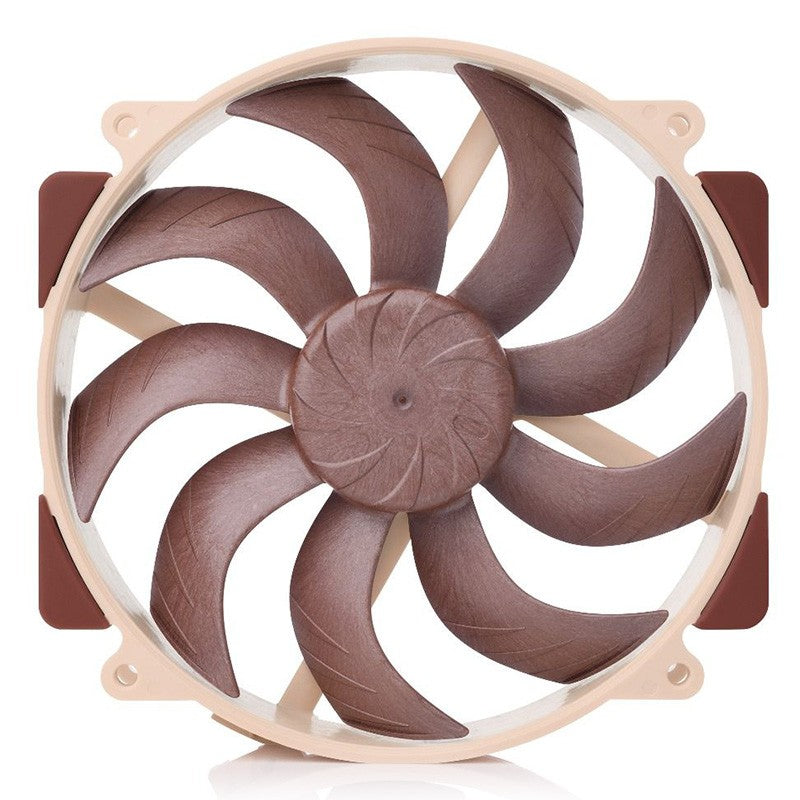

Noctua NF-A14x25r G2 140mm 4-pin PWM Fan - 2 Pcs Push-Pull Set

Mounting hole spacing

105x105 mm

Connector & pin-configuration

4-pin PWM

Cable length

20cm + 30cm NA-EC1 extension cable

Bearing

SSO2

Blade geometry

Progressive-Bend impeller

Frame technology

AAO (Advanced Acoustic Optimisation)

Material

Sterrox® LCP

Rotational speed (+/- 10%)

1500 RPM

Rotational speed with L.N.A. (+/- 10%)

1250 RPM

Airflow

155,6 m/h

Airflow with L.N.A.

127,1 m/h

Acoustical noise

24,8 dB(A)

Acoustical noise with L.N.A.

19,7 dB(A)

Static pressure

2,56 mm H₂O

Static pressure with L.N.A.

1,3 mm H₂O

Input power (max.)

2,28 W

Max. input current

0,19 A

Operating voltage

12 V

Voltage PWM signal

5 V

MTTF

> 150.000 h

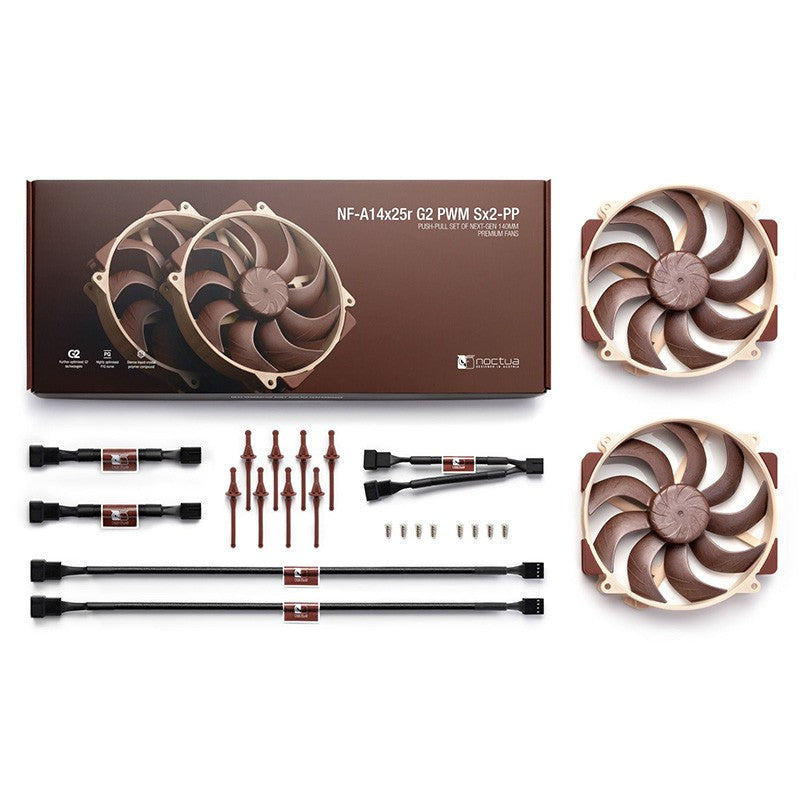

Scope of delivery

NF-A14x25r G2 PWM PPA

NF-A14x25r G2 PWM PPB

2x NA-RC16 Low-Noise Adaptor (L.N.A.)

NA-YC1 4-pin PWM splitter cable

2x NA-EC1 30cm extension cable

8x NA-AV2 anti-vibration mounts

Fan screws
