Description
SPECIFICATIONS:
COOLER SPECIFICATION |
|
Socket Compatibility |
Intel LGA2066, LGA2011-0 & LGA2011-3 (Square ILM), LGA1700 (included since Q4 2021, older coolers require NM-i17xx-MP78), LGA1200, LGA1156, LGA1155, LGA1151, LGA1150 & AMD AM2, AM2+, AM3, AM3+, FM1, FM2, FM2+ (Backplate Required), AM4, AM5 |
Height (Without Fan) |
158 mm |
Width (Without Fan) |
125 mm |
Depth (Without Fan) |
45 mm |
Weight (Without Fan) |
580 g |
Height (With Fan) |
158 mm |
Width (With Fan) |
125 mm |
Depth (With Fan) |
71 mm |
Weight (With Fan) |
755 g |
Material |
Copper (Base and Heat-Pipes), Aluminium (Cooling Fins), Soldered Joints & Nickel Plating |
NSPR |
129 |
Fan Compatibility |
120x120x25 |
Scope of Delivery |

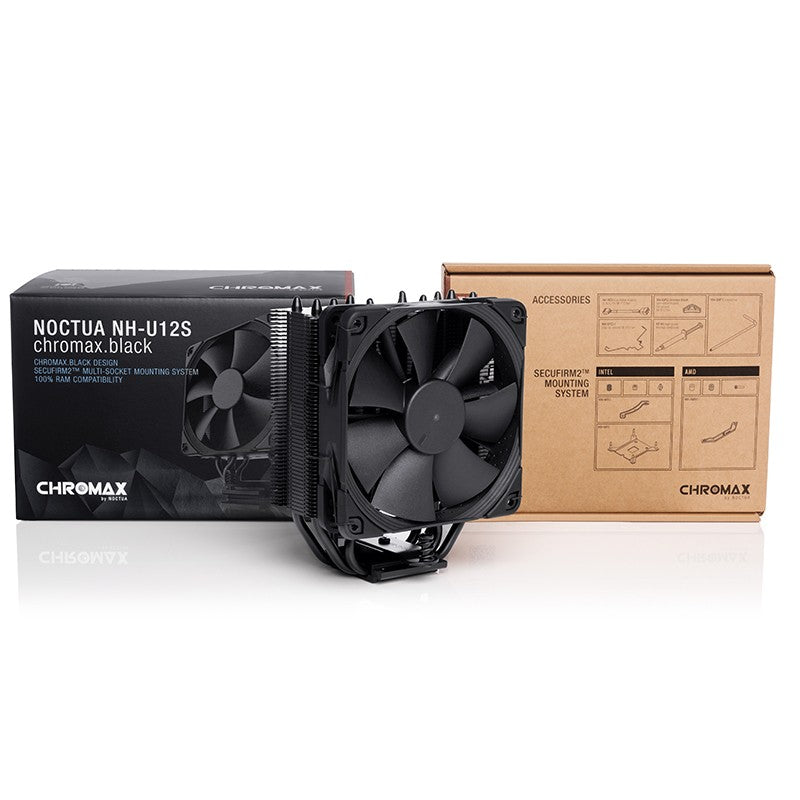

Black NH-U12S Heatsink NF-F12 PWM Chromax.Black Premium Fan Low-Noise Adaptor (L.N.A.) NT-H1 High-Grade Thermal Compound Black SecuFirm2™ Mounting Kit Black Anti-Vibration Pads and Fan-Clips for Second NF-F12 Noctua Metal Case-Badge |
FAN SPECIFICATION |
|
Bearing |
SSO2 |
Max Rotational Speed (+/- 10%) |
1500 RPM |
Max Rotational Speed with L.N.A. (+/- 10%) |
1200 RPM |
Min. Rotational Speed (PWM, +/-20%) |
300 RPM |
Max. Airflow |
93,4 m/h |
Max. Airflow with L.N.A. |
74,3 m/h |
Max. Acoustical Noise |
22,4 dB(A) |
Max. Acoustical Noise with L.N.A. |
18,6 dB(A) |
Voltage Range |
12 V |
MTTF |
> 150.000 h |
