Description
SPECIFICATIONS:

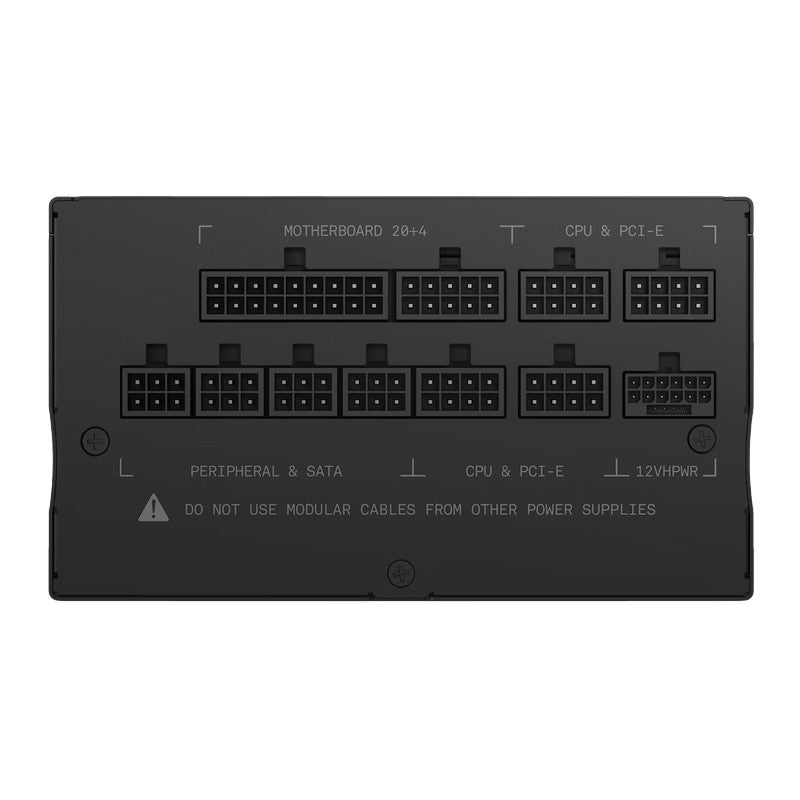

Output connectors |
24-pin ATX power:1 4+4-pin CPU power:1 8-pin CPU Cable :1 6+2-pin PCIe power :2 16-pin (12+4) 12VHPWR PCIe Cable:1 SATA power :8 Peripherals :4 |
Cable specs |
24-pin ATX power:600 mm, Nylon sleeving 4+4-pin CPU power:700 mm, Nylon sleeving 8-Pin CPU Power Cable:700mm, Nylon sleeving 6+2-pin PCIe power:650 + 150 mm, Nylon sleeving 16-Pin (12+4) 12VHPWR PCIe Cable:650mm, Nylon sleeving SATA power:500 + 150 mm Peripherals:500 + 150 mm |
AC input rating |
100 - 240Vac:14A-7A 50Hz-60Hz |
DC output rating |
+3.3V and +5V:22A (120W) +12V:100A (1200W) -12V:0.3A (3.6W) 5Vsb:3A (15W) Total:1200W |
Operation |
PF Correction:Active @0.96 MTBF:100,000 hours Temperature:0 - 50 °C (derating from 100% to 80% from 40 °C to 50 °C) |
Energy efficiency |
Rating:80 Plus Gold 20% loading:87.5% @115Vac 50% loading:90.5% @115Vac 100% loading:87.5% @115Vac |

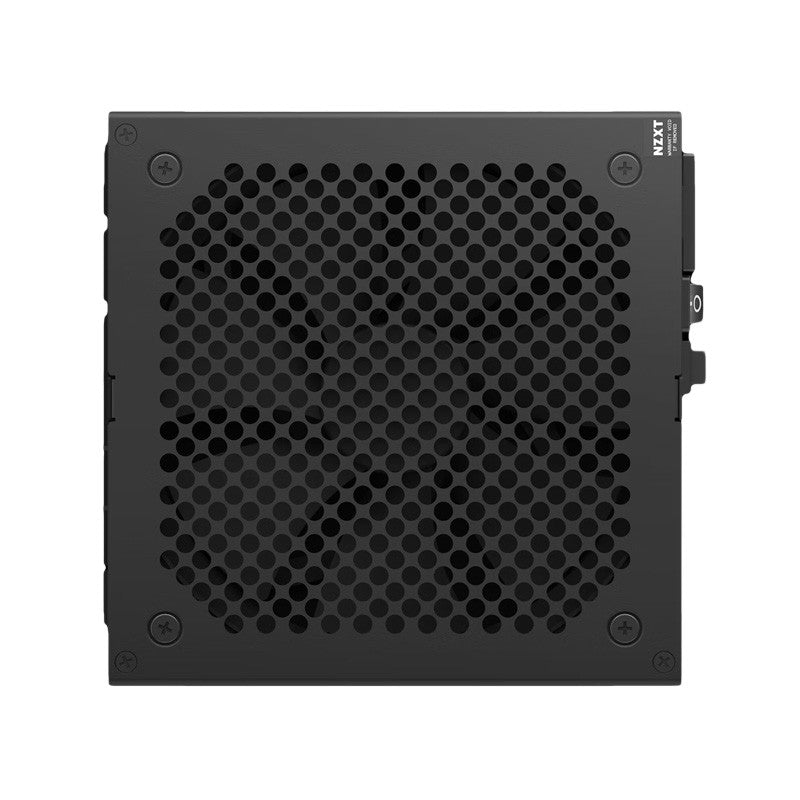

Fan specs |
Dimensions:135 x 135 x 25 mm Speed:0-2300 ± 10% RPM Airflow:93.02 CFM (Tpy.) Noise:44.5 dBA max Bearing:Fluid Dynamic Bearing (FDB) |
General |
Dimensions:150 x 150 x 86mm Material(s):Steel, PCB and Plastic Compliance Standard:ATX12V v3.0 / EPS12V v2.92 Regulation & Certification:cTUV-SUDus / CUL (UL60950/62368-1) / TUV / (EN60950/62368-1) / CB/ (IEC 950/62368-1) / CCC / CEC /BSMI / RCM / EAC / CE / LVD / UKCA |
