Description
SPECIFICATIONS:
Key Specs |
Motherboard Support:E-ATX (Up to 277 mm wide), ATX, Micro-ATX, Mini-ITX Enclosure Type:Mid-Tower Case Material:SGCC Steel, Ultra-Clear Tempered Glass (White), Dark Tinted Tempered Glass (Black) |
Dimensions |
Height (with feet):465 mm / 18.31 in Width:225 mm / 8.86 in Depth:430 mm / 16.93 in Weight:7.63 kg / 16.82 lb |
Compatibility & Clearance |
CPU Cooler Height:Up to 170 mm GPU Length:Up to 410 mm PSU Length:Up to 200 mm Cable Management:Up to 28.7 mm Top Radiator:Up to 240 mm (280 mm with low-profile memory) Top Mounted 140mm / 280mm Radiator & Fan Combined Thickness:Up to 55 mm |
Front Ports |
USB 3.2 Type-A:1 USB 3.2 Type-C:1 Headset Audio Jack:1 |
Expansion Slots |
Standard:7 Vertical:0 |
Drive Bays |
2.5":2 3.5":1 |
Fan Support |

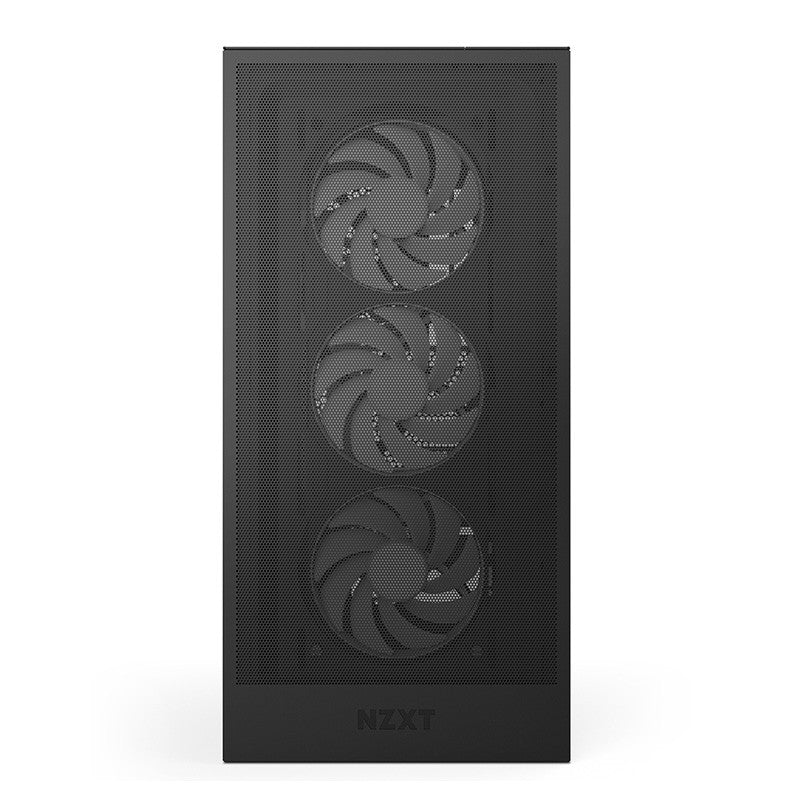

Front:3 x 120 mm / 2 x 140 mm (1 x F360 RGB Core Case Version included) Top:2 x 120 mm / 2 x 140 mm Bottom:2 x 120 mm Rear:1 x 120 mm (1 x F120Q Case Version included) |
Radiator Support |
Front:Up to 360 mm Top:Up to 240 mm (280mm with low-profile memory only) |
Fan Specs |
Model:F360 RGB Core (Case Version) Speed:1,700 ± 200 RPM Airflow:50.1 CFM Static:1.27 mm-H?O Noise:23.3 dBA Fan Connector:3-pin |
Fan Specs |
Model:F120Q (Case Version) Speed:1,350 ± 150 RPM Airflow:60.2 CFM Static:1.05 mm-H?O Noise:24.1 dBA Fan Connector:3-pin |
Inside the Box |
H5 Flow RGB 1 x F360 RGB Core (CV) 1 x F120Q (CV) 1 x Installation accessories 1 x User guide |
