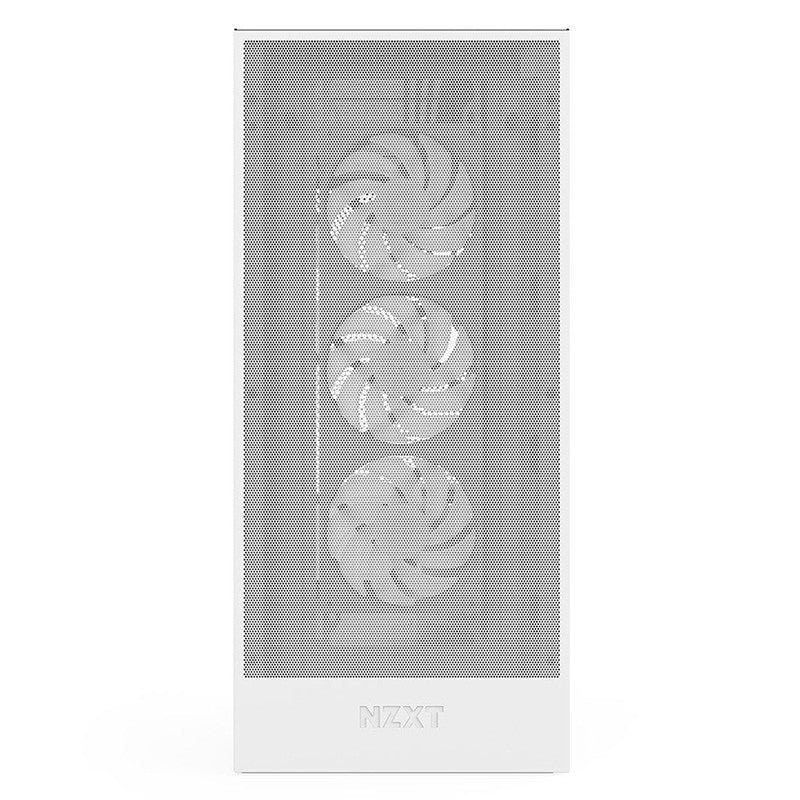

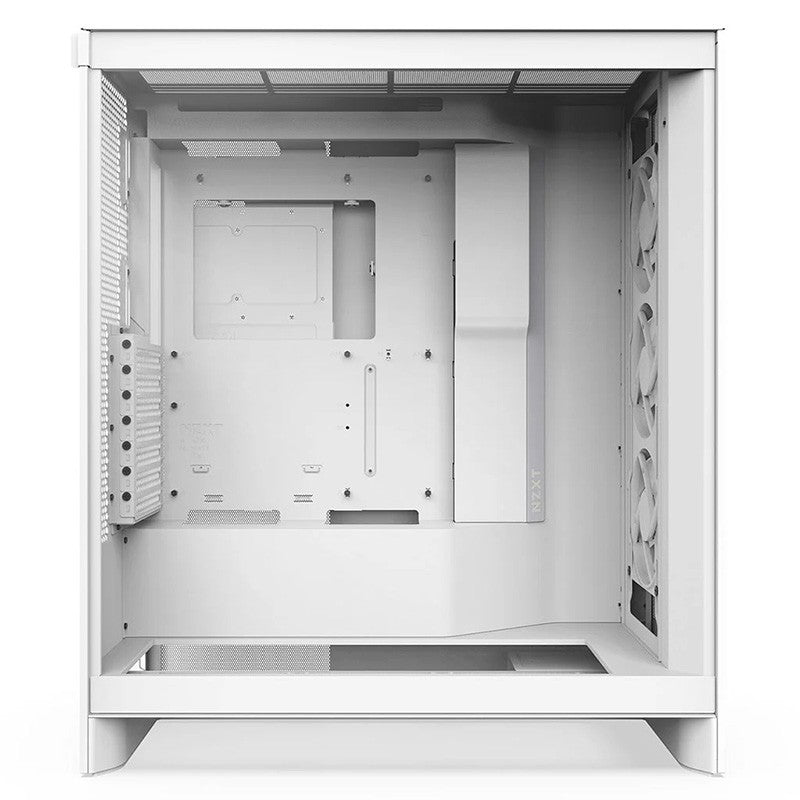

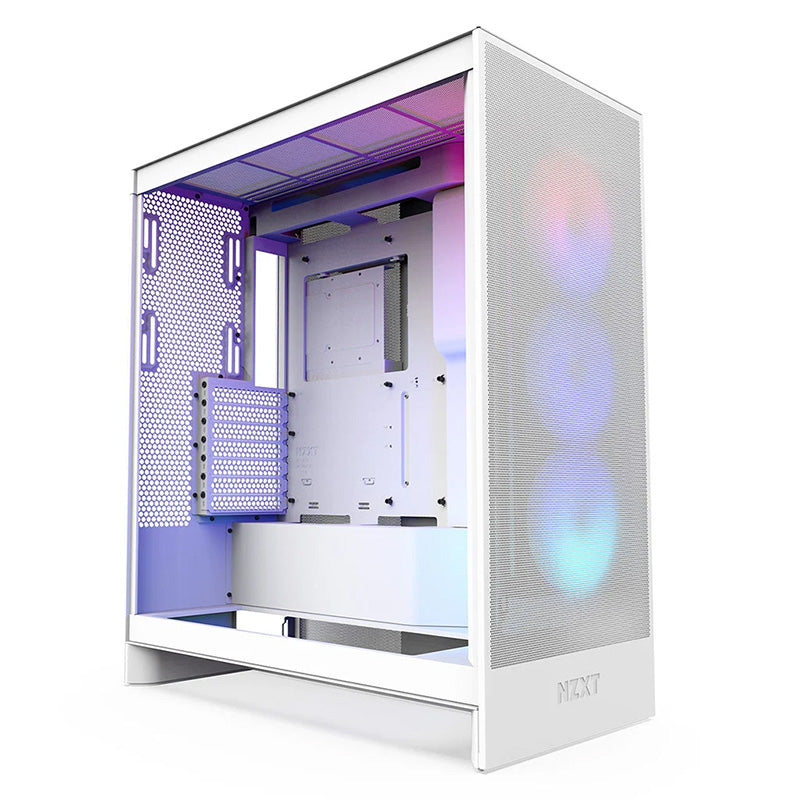

NZXT H7 Flow RGB Mid Tower ATX Case White

Dimensions

Height:505mm (With Feet)

Width:230mm

Depth:480mm

Weight:10.05 kg

Compatibility & clearance

Max CPU Cooler Clearance:Up to 185mm

Max GPU Clearance:Up to 400mm

Front Radiator Clearance:60mm

Top Radiator Clearance:30mm

Cable Management:18-23mm

I/O ports

USB 3.2 Gen 1 Type-A:2

USB 3.2 Gen 2 Type-C:1

Headset Audio Jack:1

Expansion slots

Standard:7

Vertical:0

Drive bays

2.5":4+2

3.5":2

Fan support

Front:3 x 120mm / 3 x 140mm

(3 x F Series RGB Core 140mm (Case Version) included)

Top:3 x 120mm / 2 x 140mm

Rear:1 x 120mm / 1 x 140mm

(1 x F Series Quiet 120mm (Case Version) included)

Filters:All Air Intakes

Radiator support

Front:Up to 360mm with Push/Pull

Top:Up to 360mm

Rear:Up to 140mm

Fan specs

Model:F120Q Airflow Fan

Speed:1200 ± 120RPM

Airflow:62.18 CFM

Static:1.05 mm - H2O

Noise:25.1 dBA

Fan Connector:3-pin

Fan specs

Model:F140 RGB Core Fan

Speed:1200 ± 120RPM

Airflow:61.74 CFM

Static:2.06 mm - H2O

Noise:29.05 dBA

Fan Connector:3-pin
