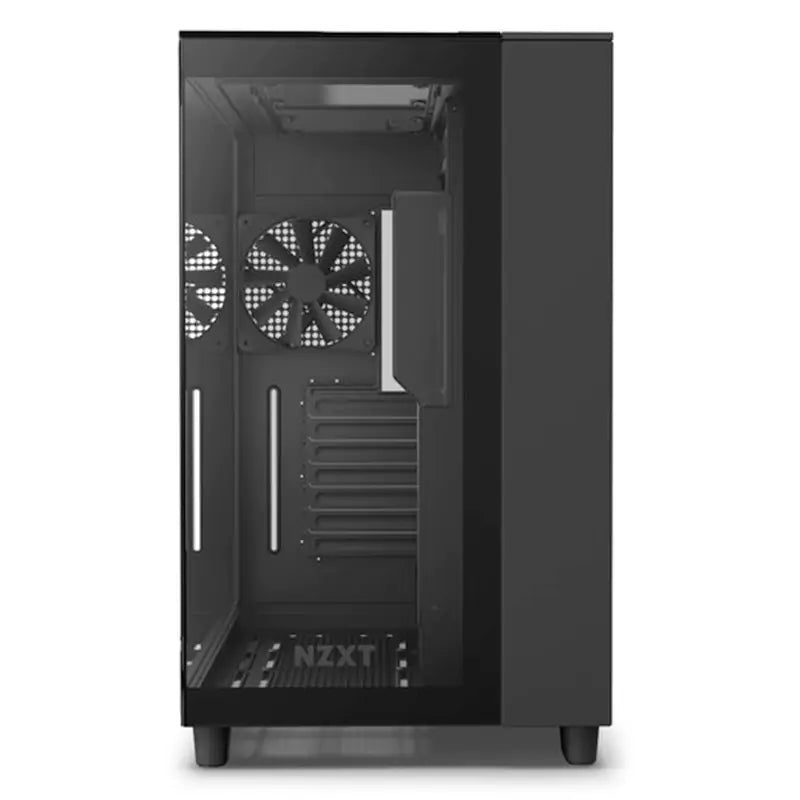

NZXT H9 Elite Edition Tempered Glass Mid-Tower ATX Case - Black

Motherboard Support

Mini-ITX, Micro-ATX, ATX

Enclosure Type

Mid-Tower

Case Material

SGCC Steel, Dark Tinted Tempered Glass

DIMENSIONS

Height

495mm (With Feet)

Width

290mm

Depth

466mm

Weight

13.1 kg

COMPATIBILITY & CLEARANCE

CPU Cooler Clearance

Up to 165mm

GPU Clearance

Up to 435mm

PSU Clearance

200mm

Cable Management

91mm

FRONT I/O PORTS

USB 3.2 Gen 1 Type-A

2

USB 3.2 Gen 2 Type-C

1

Headset Audio Jack

1

EXPANSION SLOTS

Standard

7

Vertical

0

DRIVE BAYS

2.5"

4+2

3.5"

2

FAN SUPPORT

Side

3 x 120mm

Top

3 x 120mm / 2 x 140mm

Bottom

3 x 120mm / 2 x 140mm

Rear

1 x 120mm

Filters

All Air Intakes

RADIATOR SUPPORT

Side

Up to 360mm

Top

Up to 360mm

Bottom

Up to 360mm

Rear

Up to 120mm

FAN SPECS

Model

F120Q (Case Version)

Speed

1200 ± 240RPM

Airflow

62.18 CFM

Static

1.05 mm - H2O

Noise

25.1 dBA

Fan Connector

3-pin

FAN SPECS

Model

F120RGB Duo

Speed

500 ± 1800RPM

Airflow

48.58 CFM

Static

2.42mm - H2O

Noise

29 dBA

Fan Connector

4-pin

OTHERS

Inside the Box

H9 Elite Case

1 x Front I/O split cables

3 x 120mm RGB Duo Fan

1 x 120mm Quiet Airflow Fan (Case Version)

1 x RGB and Fan Controller

Installation Accessories

Manual
