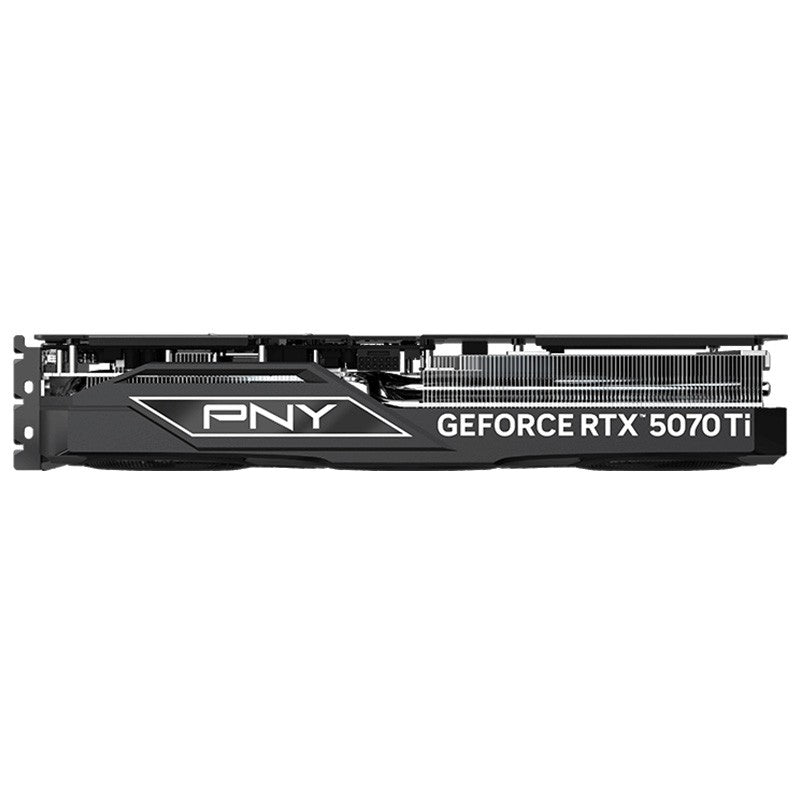

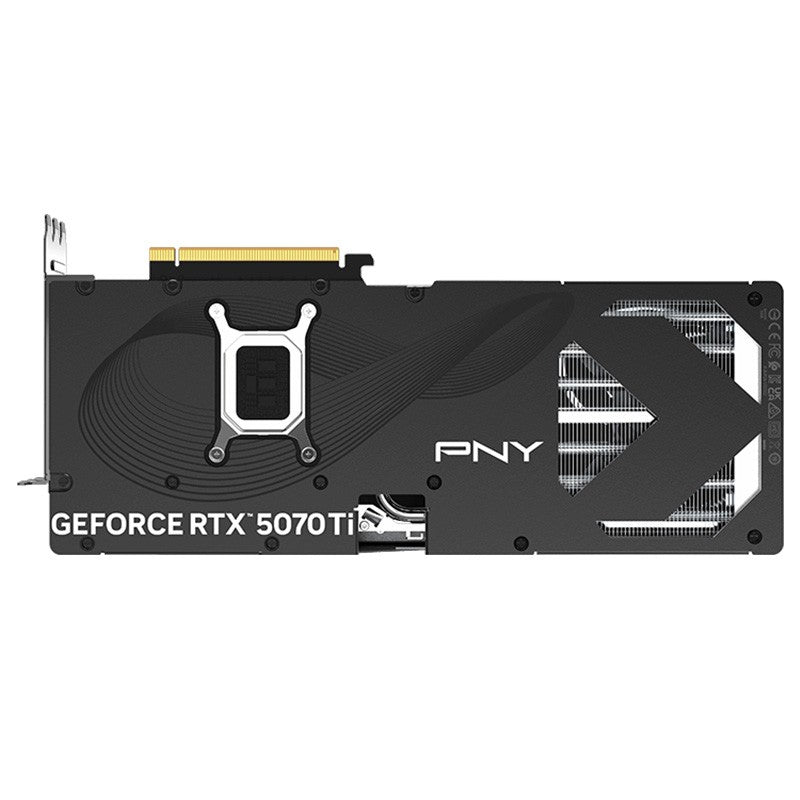

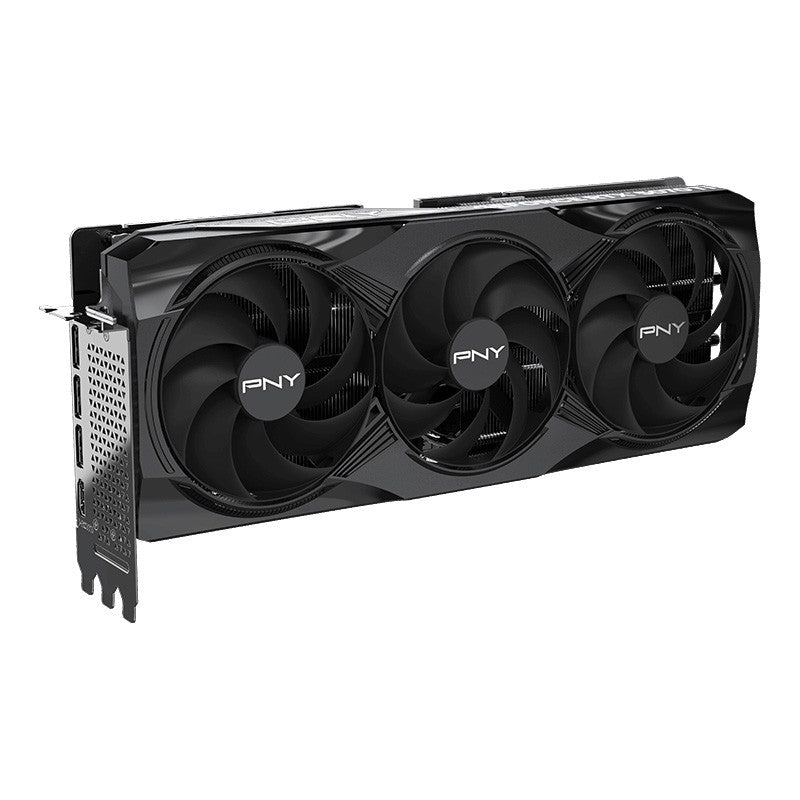

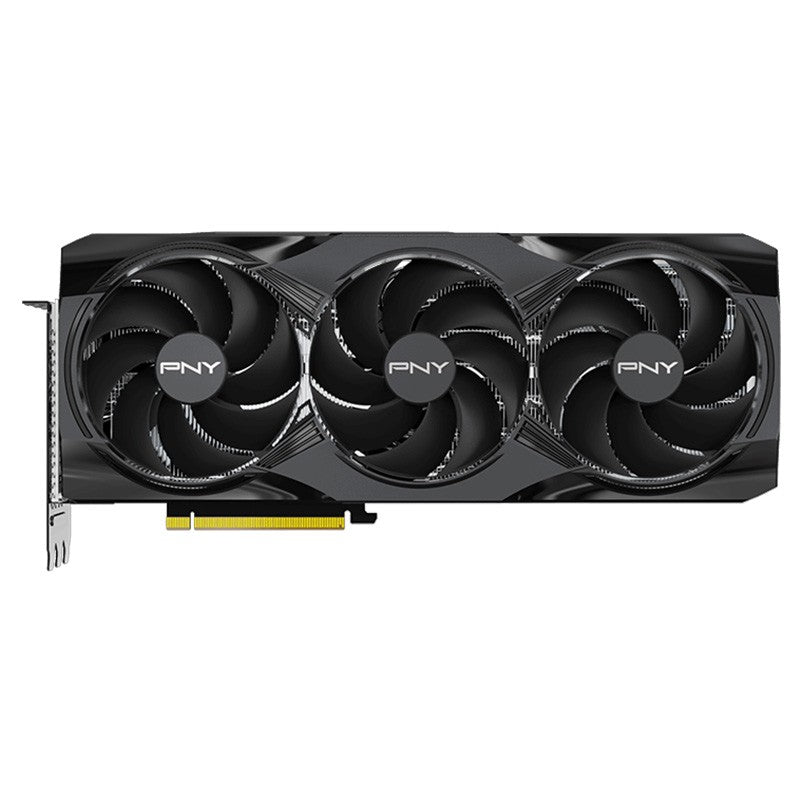

PNY GeForce RTX 5070 Ti Triple Fan Plus OC 16G Graphics Card

CUDA® Cores

8,960

Clock Speed

2295 GHz

Boost Speed

2572 GHz

Memory Speed (Gbps)

28

Memory Size

16GB GDDR7

Memory Interface

256-bit

Memory Bandwidth (GB/sec)

Up to 896

TDP

300 W

NVLink

Not Supported

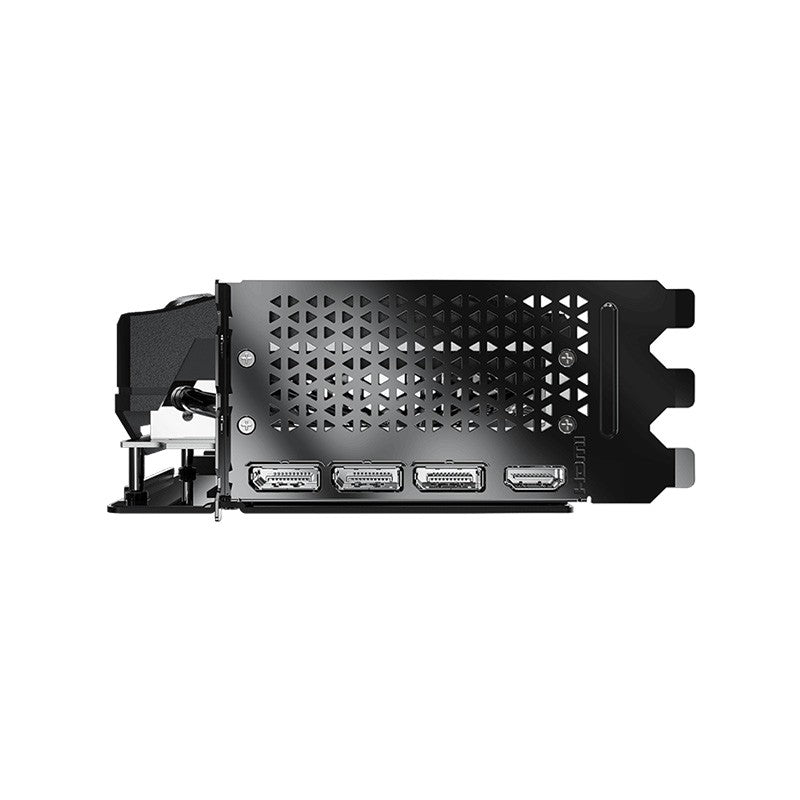

Outputs

DisplayPort 2.1b (x3), HDMI® 2.1b

Multi-Screen

4

Resolution

4K at 480Hz or 8K at 165Hz with DSC*

* Up to 4K 12-bit HDR at 480Hz with DP 2.1b + DSC or HDMI® 2.1b +DSC. Up to 8K 12-bit HDR at 165Hz with DP 2.1b + DSC. Up to 8K 12-bit HDR at 120Hz With HDMI® 2.1b + DSC. With dual DP 2.1b + DSC, up to 8K HDR at 100Hz

Power Input

16-pin (One 16-pin to Three 8-pin)

Bus Type

PCI-Express 5.0 x16

Card Dimensions

12.93" x 5.42" x 2.35"; 3 Slot

Box Dimensions

15.94" x 7.83" x 4.06"

System Requirements

PCI Express-compliant motherboard with one 3-width x16 graphics slot

Three 8-pin supplementary power connectors

750 W or greater system power supply*

Microsoft Windows® 11 64-bit, Windows 10 (November 2018 or later) 64-bit, Linux 64-bit

Internet connection*

* Minimum is based on a PC configured with a Ryzen 9 5900X processor. Power requirements can be different depending on system configuration.

* Graphics Card driver is not included in the box; GeForce Experience will download the latest GeForce driver from the Internet after install.

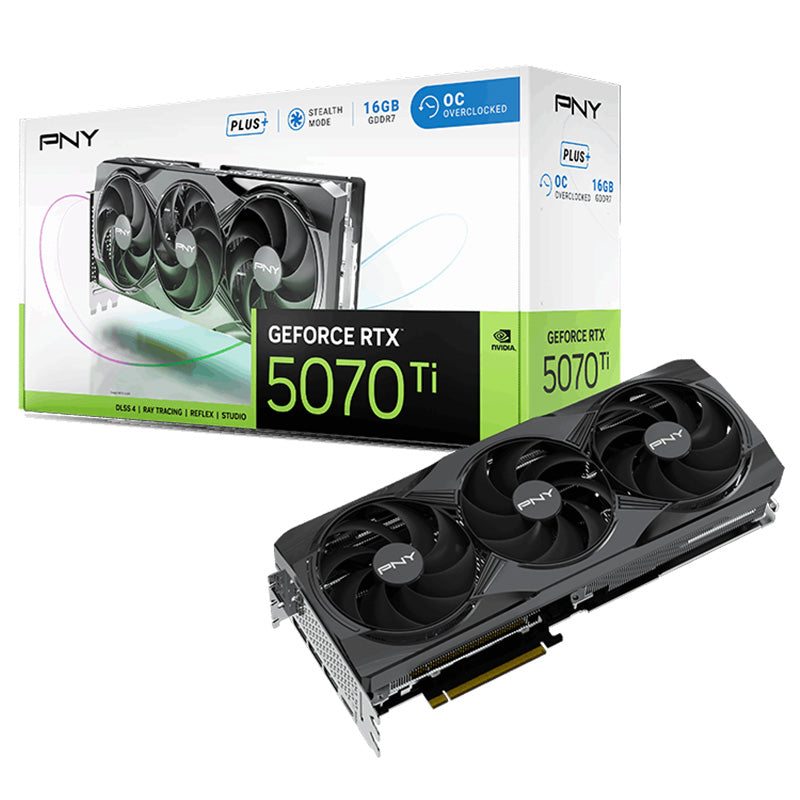

Package Contents

PNY GeForce RTX™ 5070 Ti OC Triple Fan Plus

1 x Auxiliary Power Cable

1x GPU Support Kit
