Description
SPECIFICATIONS:
Architecture |
Blackwell |
CUDA® Cores |
6,144 |
Base Clock Speed |
2.16 GHz |
Memory Speed (Gbps) |
28 |
Memory Size |
12GB GDDR7 |
Memory Interface |
192-bit |
Memory Bandwidth (GB/sec) |
Up to 672 |
TDP |
250 W |
NVLink |
Not Supported |

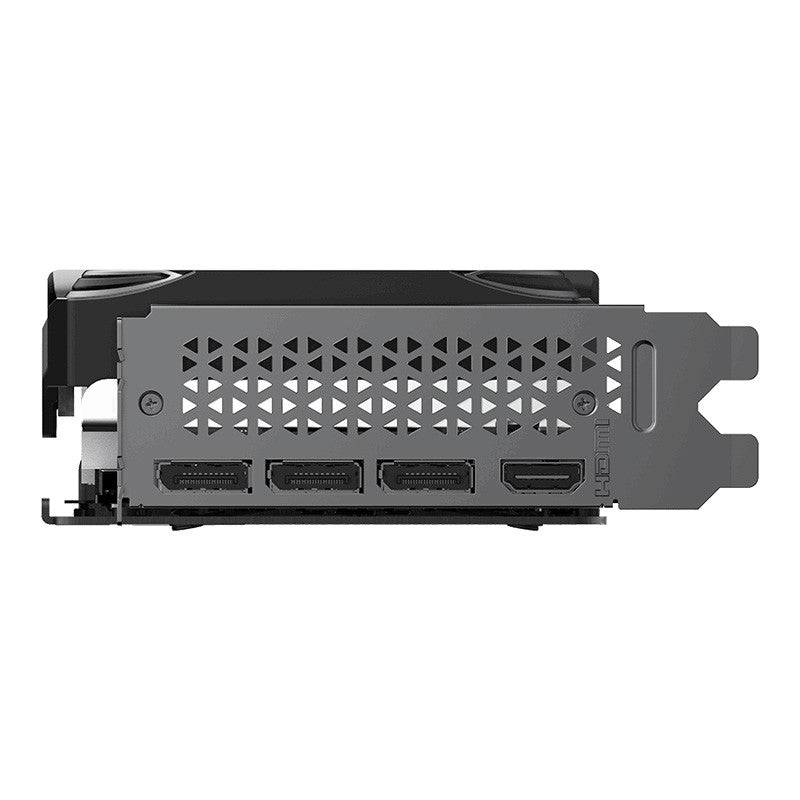

Outputs |
DisplayPort 2.1b (x3), HDMI® 2.1b |
Multi-Screen |
4 |
Resolution |
4K at 480Hz or 8K at 165Hz with DSC*
* Up to 4K 12-bit HDR at 480Hz with DP 2.1b + DSC or HDMI® 2.1b +DSC. Up to 8K 12-bit HDR at 165Hz with DP 2.1b + DSC. Up to 8K 12-bit HDR at 120Hz with HDMI® 2.1b + DSC. With dual DP 2.1b + DSC, up to 8K HDR at 100Hz |
Power Input |
One 16-pin (One 16-pin to Two 8-pin) |
Bus Type |
PCI-Express 5.0 x16 |
Card Dimensions |
11.80" x 4.73" x1.9"; 2.4 Slot |
System Requirements |
PCI Express-compliant motherboard with one 2.4-width x16 graphics slot Two 8-pin supplementary power connectors Total graphics power 250 W Required system power 650 W* Microsoft Windows® 11 64-bit, Windows 10 (November 2018 or later) 64-bit, Linux 64-bit Internet connection*
* Graphics Card driver is not included in the box; NVIDIA App will download the latest GeForce driver from the Internet after install. * Power requirements can be different depending on system configuration. |

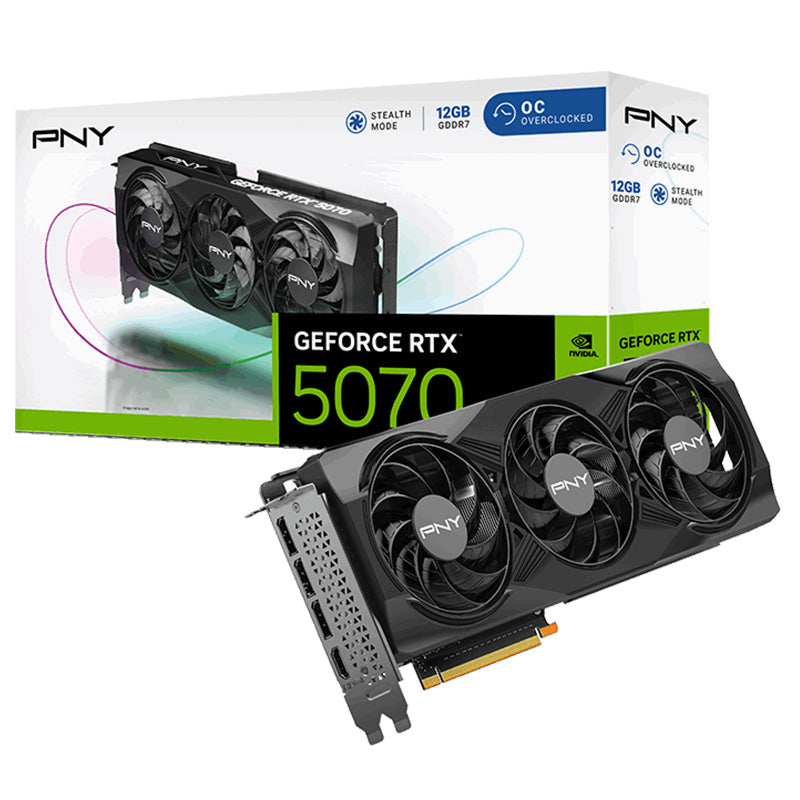

Package Contents |
PNY GeForce RTX™ 5070 OC 1x Auxiliary Power Cable |
