Description
SPECIFICATIONS:
Architecture |
Blackwell |
CUDA® Cores |
21,760 |
Boost Speed |
2625 MHz |
Memory Speed (Gbps) |
28 |
Memory Size |
32GB GDDR7 |
Memory Interface |
512-bit |
Memory Bandwidth (GB/sec) |
1792 |
TDP |
600 W |
NVLink |
Not Supported |
Outputs |
DisplayPort 2.1b (x3), HDMI® 2.1b |
Multi-Screen |
4 |
Resolution |
4K at 480Hz or 8K at 165Hz with DSC*
* Up to 4K 12-bit HDR at 480Hz with DP 2.1b + DSC or HDMI® 2.1b +DSC. Up to 8K 12-bit HDR at 165Hz with DP 2.1b + DSC. Up to 8K 12-bit HDR at 120Hz with HDMI® 2.1b + DSC. With dual DP 2.1b + DSC, up to 8K HDR at 100Hz |
Power Input |
16-pin (One 16-pin to Four 8-pin) |
Bus Type |
PCI-Express 5.0 x16 |
Card Dimensions |
12.94" x 5.42" x 2.8"; 3.5 Slot |
System Requirements |
PCI Express-compliant motherboard with one 3.5-width x16 graphics slot Four 8-pin supplementary power connectors Total graphics power 575 W Required system power 1000 W* Microsoft Windows® 11 64-bit, Windows 10 (November 2018 or later) 64-bit, Linux 64-bit Internet connection*
* Power requirements can be different depending on system configuration. * Graphics Card driver is not included in the box; NVIDIA App will download the latest GeForce driver from the Internet after install. |
Package Contents |

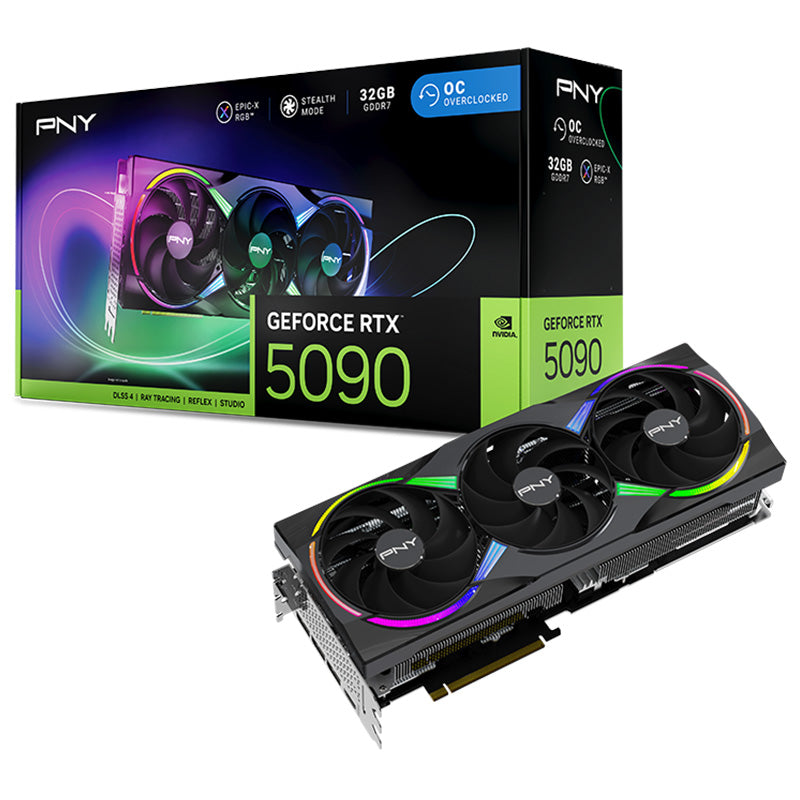

PNY GeForce RTX™ 5090 ARGB OC 1x Auxiliary Power Cable |
