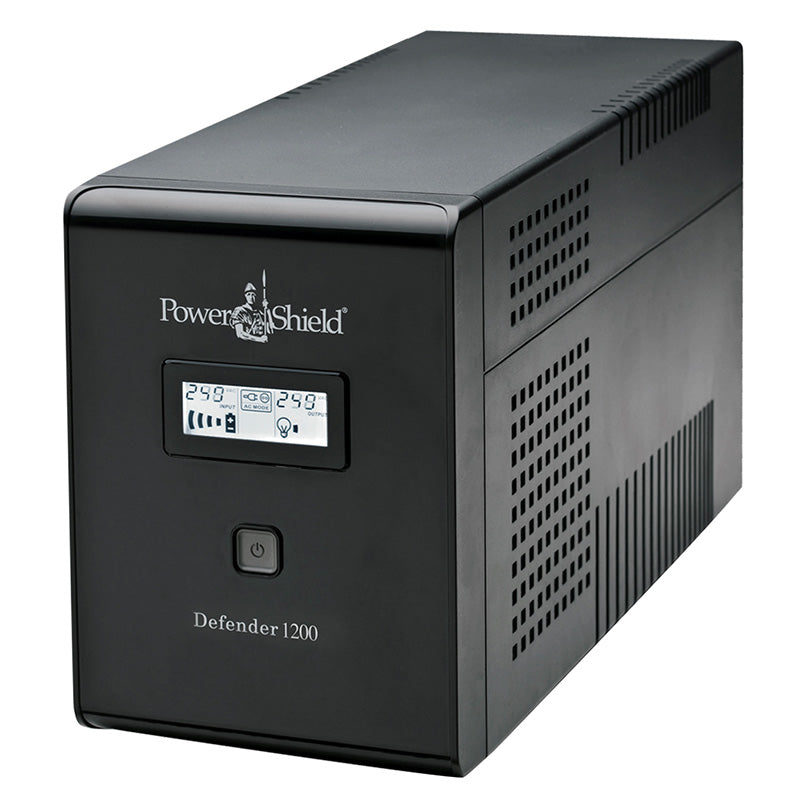

PowerShield PSD1200 Defender 1200VA / 720W Line Interactive UPS with AVR

Output

Output Voltage 240Vac
Output Voltage Regulation 240Vac (+/- 10%)
Frequency AC mode tracks utility. Battery Mode (50Hz +/-1%)
Frequency Range (Battery Mode) 50Hz or 60Hz (+/- 1%)
Transfer Time 2-6 ms, 10ms max (typical)
Start on Battery Yes
Waveform (Batt. Mode) Simulated Sine Wave

VA/Wattage 1200VA/720W

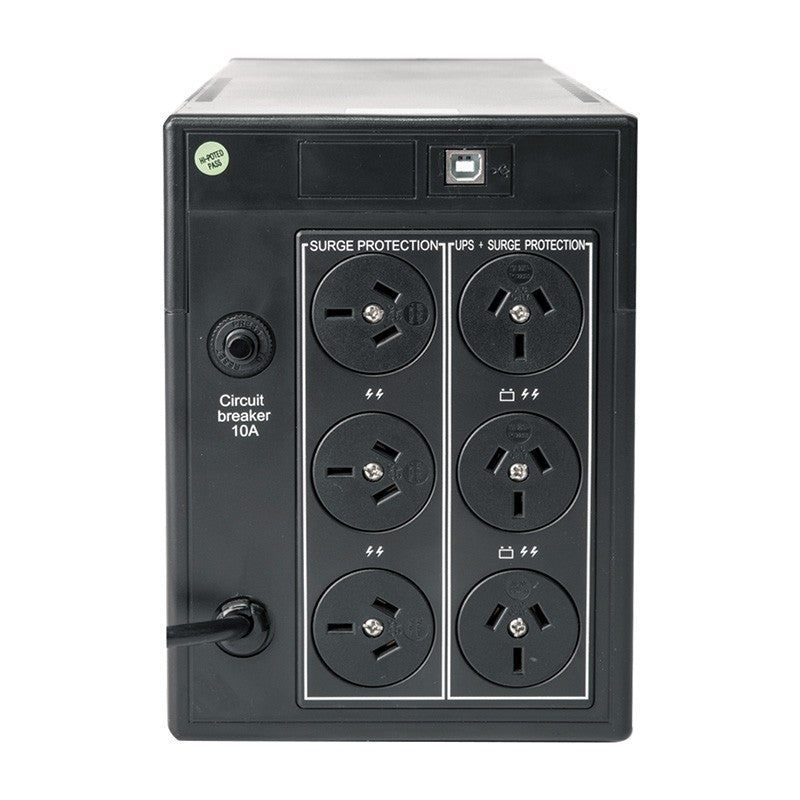

Numbers of Outlets 6 - (3x Battery backup/surge protected and 3x Surge Protection)

Protection

EMC EN62040-2 2006
Safety EN62040-1-1 2003, IEC60950-1:2001
Full Protection Overload, discharge and overcharge protection

Battery

User Replaceable Battery 12V*7AH (x2)
Backup Time (One PC load @ 120W)
40 minutes

Operation Environment Temperature 0-40C,   Humidity 0-90% Non condensing

Full load backup time 2.5 mins
Software PowerShield NetGuard supports Windows, Linux, Unix & Apple Mac
Audible Noise <40dBA
Recharge Time to 90% 4-6 Hours

Communications & management

Battery Mode 2 beeps every 30 sec
Low Battery Rapid beep (one sec intervals)
Overload Constant Beeping
Battery Replacement Alarm Constant Beeping
Fault

Constant Beeping
Smart LCD Input voltage
Output voltage
AC mode indicator
Battery mode indicator
Load level indicator, flashing indicates overload
Battery capacity indicator, flashing indicates low battery level

Communications interface

Interface: USB

Physical

Dimensions (LxWxH) 397x146x205mm
Weight 11.1kgs
