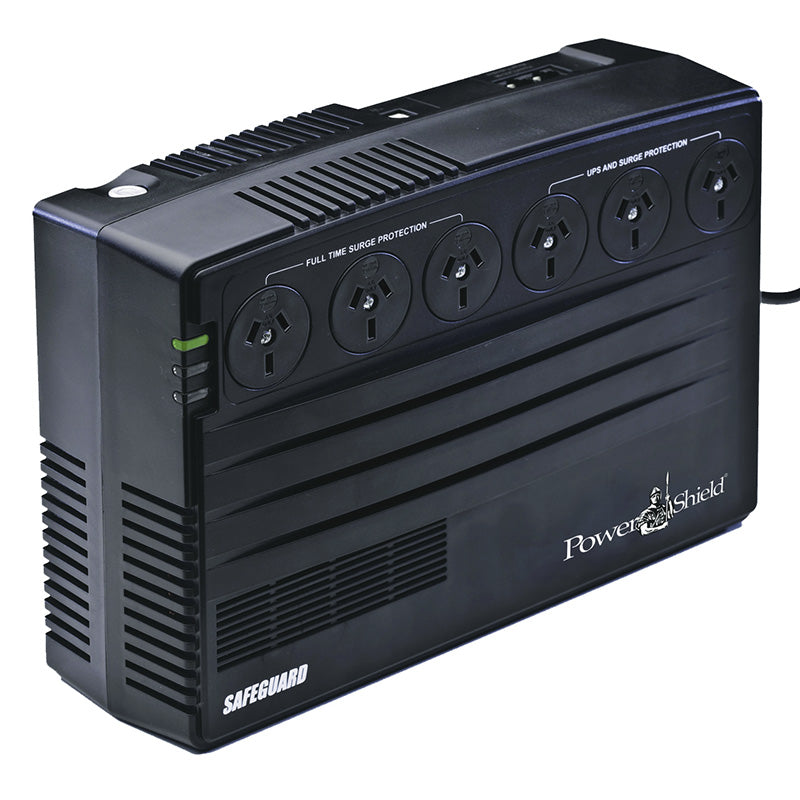

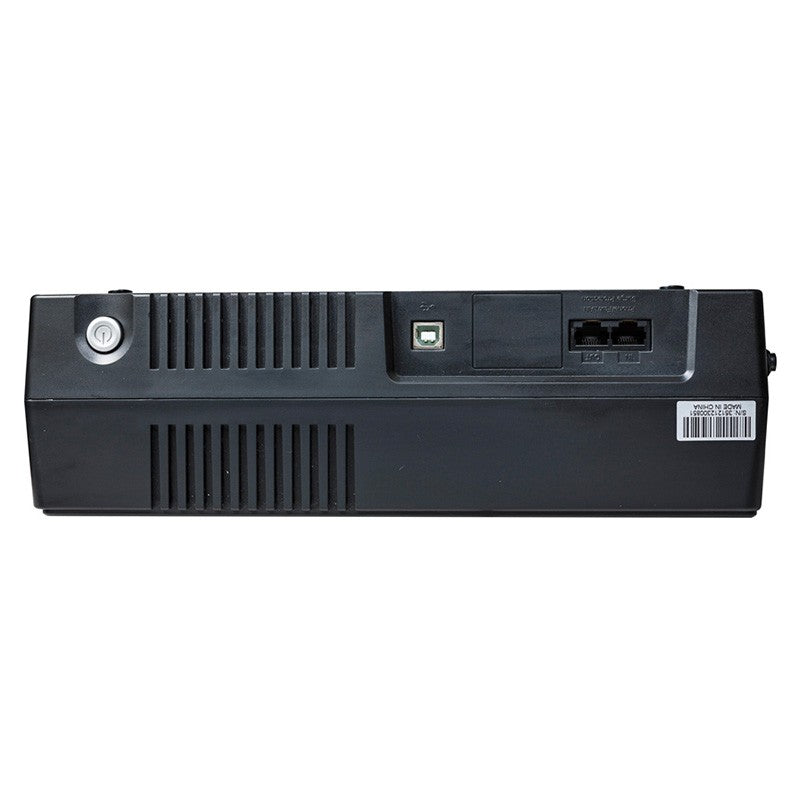

Powershield UPS 750VA Safeguard Line Interactive
The SafeGuard UPS provides a buffer between your equipment and inconsistent mains power supply. This cost effective, compact device constantly stands guard beside your sensitive equipment.
Automatic Voltage Regulation (Buck and Boost)
Light-weight compact and elegantly designed
Intelligent microprocessor control
Monitoring and shutdown software included
Fax/modem/LAN surge suppression port
Overload protection and alarm
Output short circuit protection
Start on battery function (cold start)
USB communication
Easy user replaceable battery
Australian/New Zealand approved sockets
Wall mountable
Fast charging – 90% in 4 hours
SPECIFICATIONS:
GENERAL |
|
Capacity |
750VA / 450W |
Topology |
Line Interactive |
INPUT |
|
Voltage |
240VAC (Nominal) |
Voltage Range |
177 to 290VAC |
Frequency Range |
50Hz or 60Hz (Auto sensing) |
OUTPUT |
|
Output Voltage |
240VAC ± 10% |
Frequency Range (Batt. Mode) |
50Hz or 60Hz ±1Hz |
Transfer Time |
6ms (Typical) |
Waveform (Batt. Mode) |
Simulated Sine Wave |
Australian Outlets – UPS &Surge Protection |
3 |
Australian Outlets – Surge Protection |
3 |
BATTERY |
|
Capacity |
12V*9Ah |
Backup Time |
25 min (1 PC load at 100W) |
Typical Recharge Time |
6–8 hours recover to 90% capacity |
PROTECTION |
|
Full Protection |
Overcharge, discharge, short circuit and thermal protection |
Surge Protection |
468Joules /11000Amps – Best in its class |
Data Protection |
Tel/modem (Not NBN) |
COMMUNICATIONS & MANAGEMENT |
|
Interface |
USB interface |
Software |
PowerShield® NetGuard® supports Windows, Linux, Unix & Mac |
Visual Alarm |
LED, AC Mode, Battery Mode, Low Battery (Batt. Mode), Fault |
Audible Alarm |
Battery Mode, Low Battery (Batt. Mode), Fault, Overload |
PHYSICAL |
|
Dimension D x W x H (mm) |
292 x 199 x 199 |
Net Weight (kgs) |
6.3 |
OPERATING ENVIRONMENT |
|
Temperature |
0–40°C |
Humidity |
0–90% RH (non-condensing) |
Noise Level |
<40dB (no fan) |
COMPLIANCE |
|
Safety/EMC |
EN62040 - 1 - 2008, IEC60950 - 1: 2001, EN62040 - 2 2006 |
RoHS |
Directive 2011/65/EU |
