CPU
|
Intel ® Atom® C5125 8-core processor, 2.8GHz
|
|
CPU Architecture
|
64-bit x86
|
|
Floating Point Unit
|
✓
|
|
Encryption Engine
|
✓ (AES-NI)
|
|
System Memory
|
8 GB UDIMM DDR4 (1 x 8 GB)
|
|
Maximum Memory
|
128 GB (4 x 32 GB)
|
|
Memory Slot
|
4 x U-DIMM DDR4
Support ECC memory
|
|
Flash Memory
|
5GB (Dual boot OS protection)
|
|

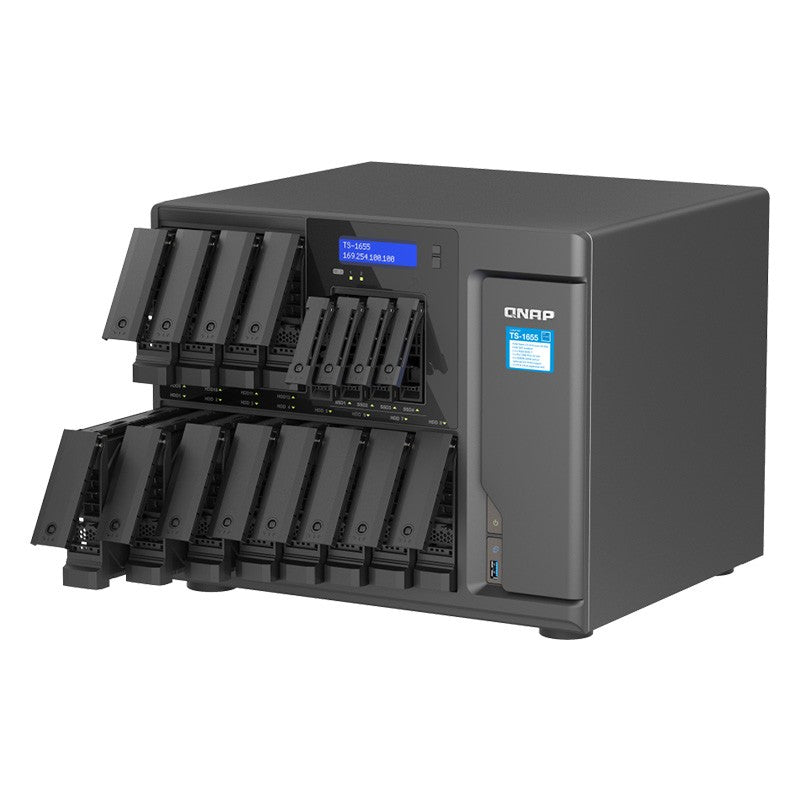

Drive Bay
|
12 x 3.5-inch + 4 x 2.5-inch SATA 6Gb/s, 3Gb/s
|
|
Drive Compatibility
|
3.5-inch bays:
3.5-inch SATA hard disk drives
2.5-inch SATA solid state drives
2.5-inch bays:
2.5-inch SATA solid state drives
|
|
Hot-swappable
|
✓
The following are not hot-swappable: M.2 SSDs, SSD cache drives, SSDs using PCIe expansion slots.
|
|
M.2 Slot
|
2 x M.2 2280 PCIe Gen 3 x2 slots
The M.2 SSD is not included as standard.
M.2 SSD operations can easily generate excessive heat. It is recommended to install a heatsink (from QNAP or a third-party provider) on the M.2 SSD.
|
|
SSD Cache Acceleration Support
|
✓
|
|
SR-IOV
|
✓
|
|
2.5 Gigabit Ethernet Port (2.5G/1G/100M)
|
2 (2.5G/1G/100M/10M)
|
|
Wake on LAN (WOL)
|
✓
Only the 2.5GbE port
|
|
Jumbo Frame
|
✓
|
|
PCIe Slot
|
3
Slot 1: PCIe Gen 3 x4
Slot 2: PCIe Gen 3 x4
Slot 3: PCIe Gen 3 x4
Card dimensions for PCIe slot 1：260 x 111.15 x 37.52 mm / 10.25 x 4.38 x 1.48 inches.
Card dimensions for PCIe slot 2：150 x 68.9 x 18.76 mm / 5.90 x 2.71 x 0.74 inches.
Card dimensions for PCIe slot 3：150 x 68.9 x 18.76 mm / 5.90 x 2.71 x 0.74 inches.
Wider cards can be installed if the next PCIe slot will not be used.
|
|
USB 3.2 Gen 1 port
|
4
|
|
Form Factor
|
Tower
|
|

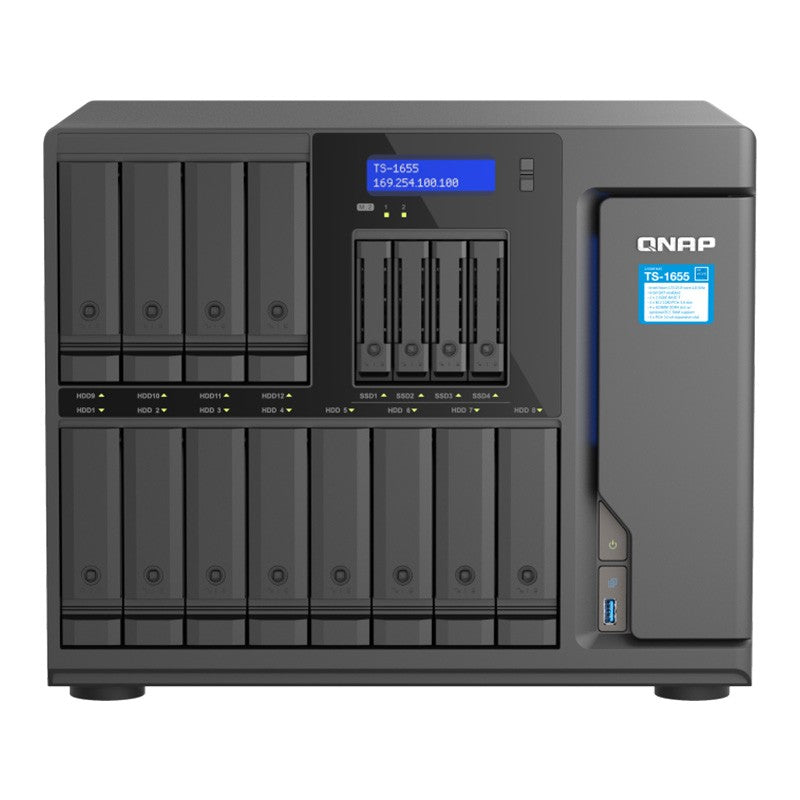

LED Indicators
|
Power/Status, LAN, USB, HDD1-12, SSD 1-4, M.2 SSD 1-2
|
|
Buttons
|
Power, Reset, USB Auto Copy
|
|
Dimensions (HxWxD)
|
294.29 × 369.89 × 319.8 mm
|
|
Weight (Net)
|
13.16 kg
|
|
Weight (Gross)
|
16.68 kg
|
|
Operating Temperature
|
0 - 40 °C (32°F - 104°F)
|
|
Storage Temperature
|
-20 - 70°C (-4°F - 158°F)
|
|
Relative Humidity
|
5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
|
|
Power Supply Unit
|
550W, 100-240V
1 x 8-pin PCI-e cable + 1 x 8 (6+2)-pin PCI-e cable
|
|
Power Consumption: HDD Sleep Mode
|
68.004 W
|
|
Power Consumption: Operating Mode, Typical
|
104.65 W
Tested fully populated with 1TB hard drives and 120GB solid-state drives.
|
|

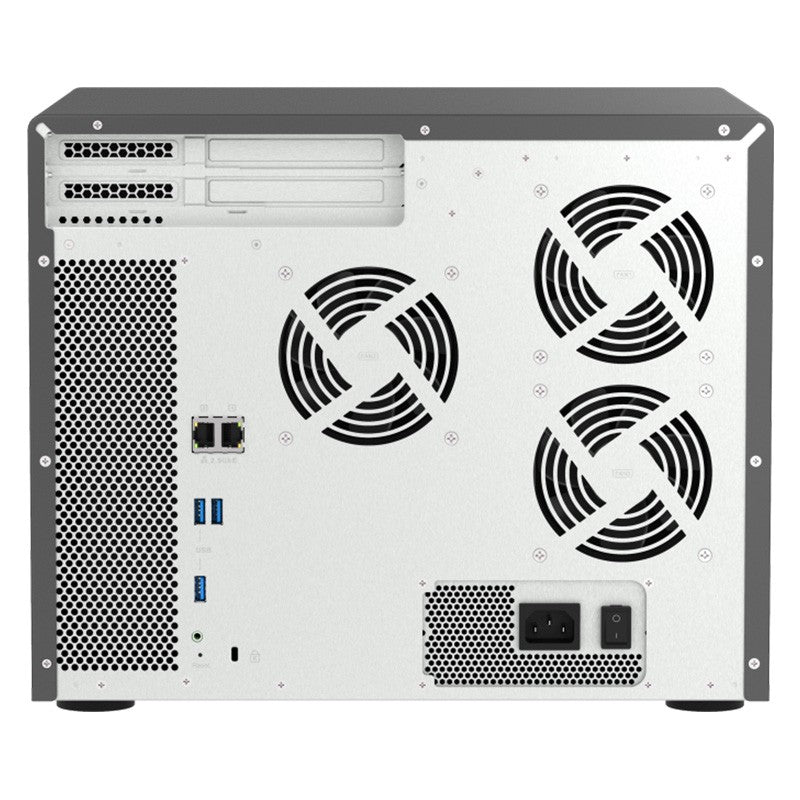

Fan
|
System fan: 3 x 92mm, 12VDC
CPU fan: 2 x 97mm, 12VDC
|
|
Other Interfaces
|
Kensington security slot
|
|
System Warning
|
Buzzer
|
|
Kensington Security Slot
|
✓
|
|
Standard Warranty
|
3
|
|
Max. Number of Concurrent Connections (CIFS)
- with Max. Memory
|
700
|
