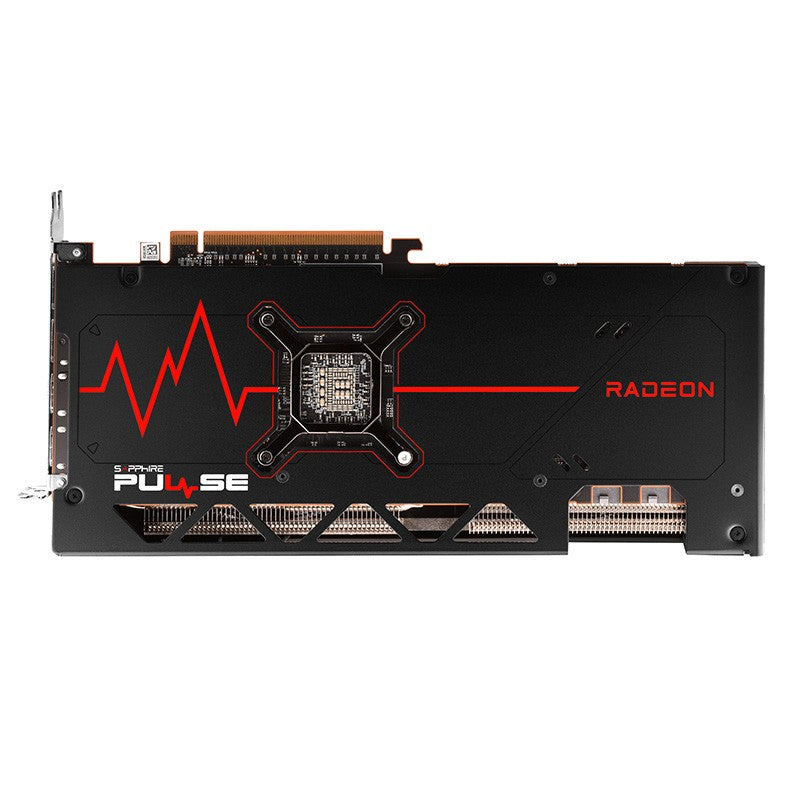

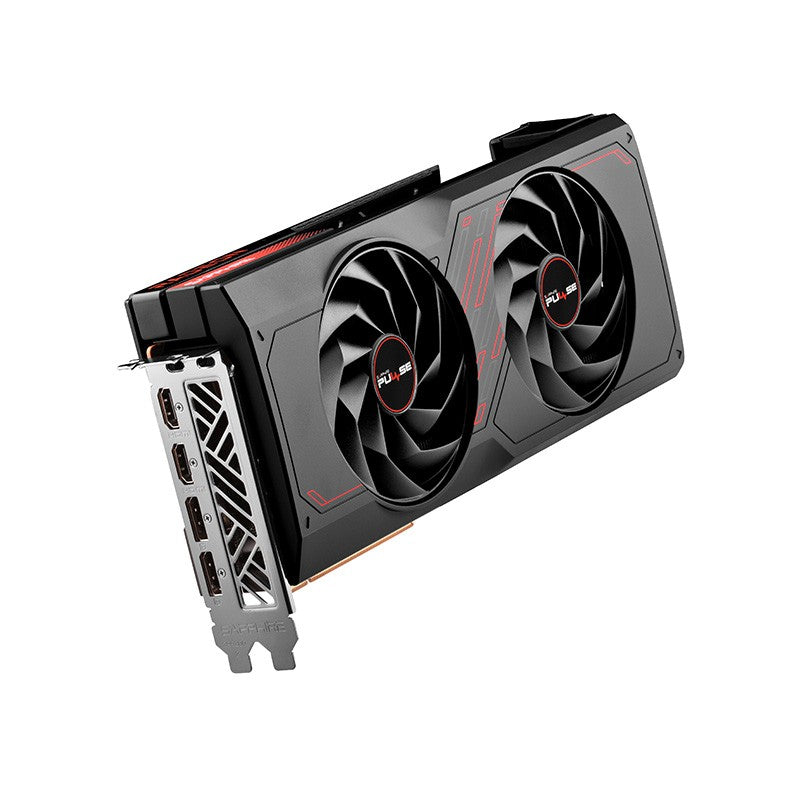

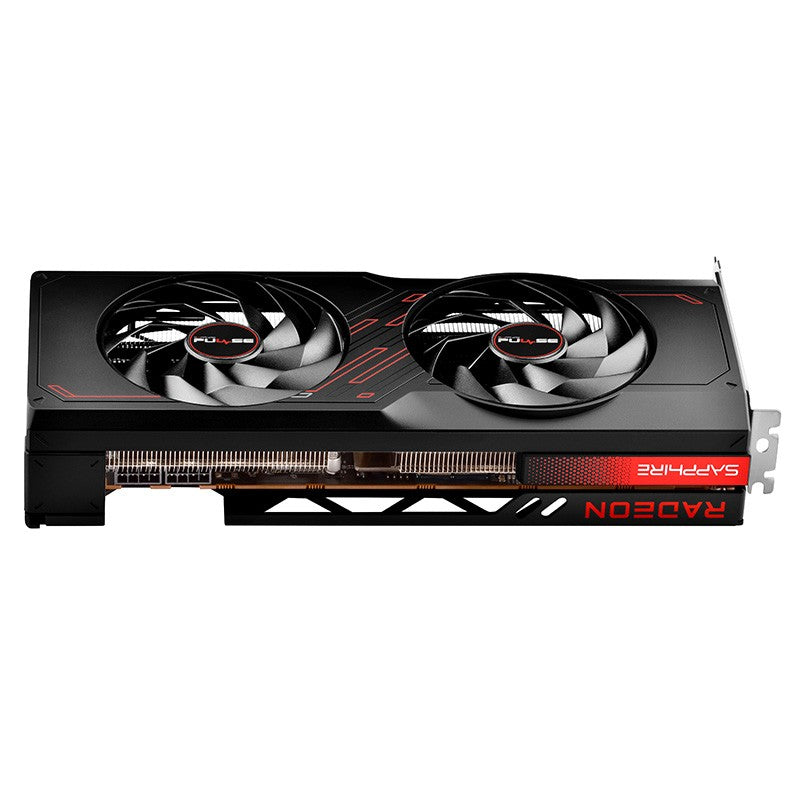

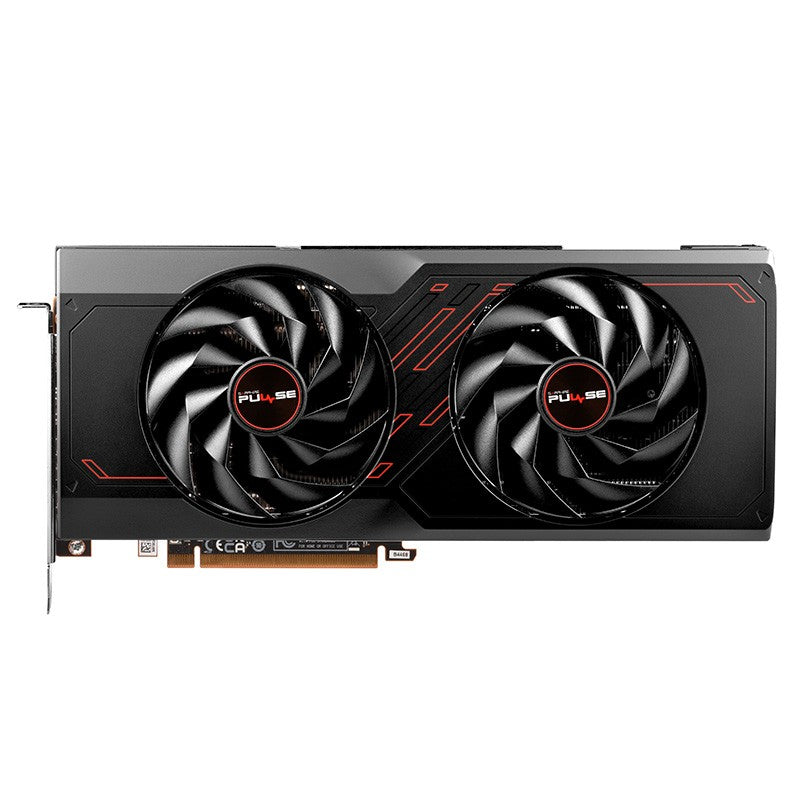

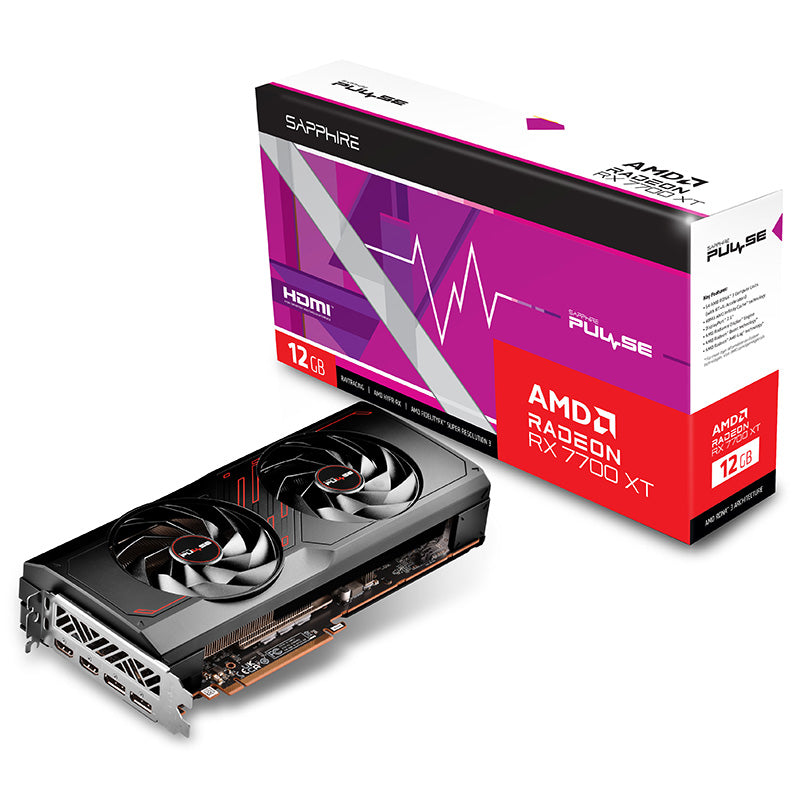

Sapphire Pulse Radeon RX 7700 XT 12G Graphics Card

Engine Clock

Boost Clock: Up to 2544 MHz

Game Clock: Up to 2171 MHz

Boost Clock is the maximum frequency achievable on the GPU running bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in application and workloads.

Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary.

Stream Processors

3456

Compute Units

54 CU (with RT+AI Accelerators)

Infinity Cache

48MB

Ray Accelerators

54

Memory Size/Bus

12GB/192 bit GDDR6

Memory Clock

18 Gbps Effective

Displays

Maximum 4 Displays

Resolution

HDMI™: 7680×4320

DisplayPort 2.1: 7680×4320

Interface

PCI-Express 4.0 x16

Output

2x HDMI

2x DisplayPort

BIOS Support

UEFI

Game Index

1440P

Sapphire Features

Digital Power Design

Ultra High Performance Conductive Polymer Aluminum Capacitors

Fuse Protection

High TG Copper PCB

Optimized Composite Heatpipe

Dual-X Cooling Technology

Intelligent Fan Control

Precision Fan Control

Metal Backplate

Angular Velocity Fan Blade

Dual-Ball Bearing Fans

TriXX Supported

TriXX Boost

AMD Features

AMD RDNA™ 3 Architecture

54 AMD RDNA™ 3 Compute Units (with RT+AI Accelerators)

48MB AMD Infinity Cache™ Technology

DisplayPort™ 2.1Support

AMD Radiance Display™ Engine

12GB GDDR6 on 192-Bit Memory Bus

PCI® Express 4.0 ready

AMD FidelityFX™ Super Resolution technology

Microsoft® DirectX® 12 Ultimate Support

Microsoft® DirectStorage Support

Vulkan® Optimized

AMD Smart Technologies

AMD Software: Adrenalin Edition™

AMD Noise Suppression

AMD Privacy View

AMD Radeon™ Super Resolution technology

AMD Link

AMD FreeSync™ technology

Cooling

2 Fans

Form Factor

2.5 slot, ATX

Dimension: 280(L)X 128.75(W)X 52.57 (H)mm

Power Consumption

230W Total Board Power

OS

Linux®, Windows® 10, and Windows 11. 64-bitoperating system required

System Requirement

Minimum 700 Watt Power Supply

2 x 8-pin Power Connector.

PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard.

Minimum 8GB of system memory. 16GB recommended.
