Description

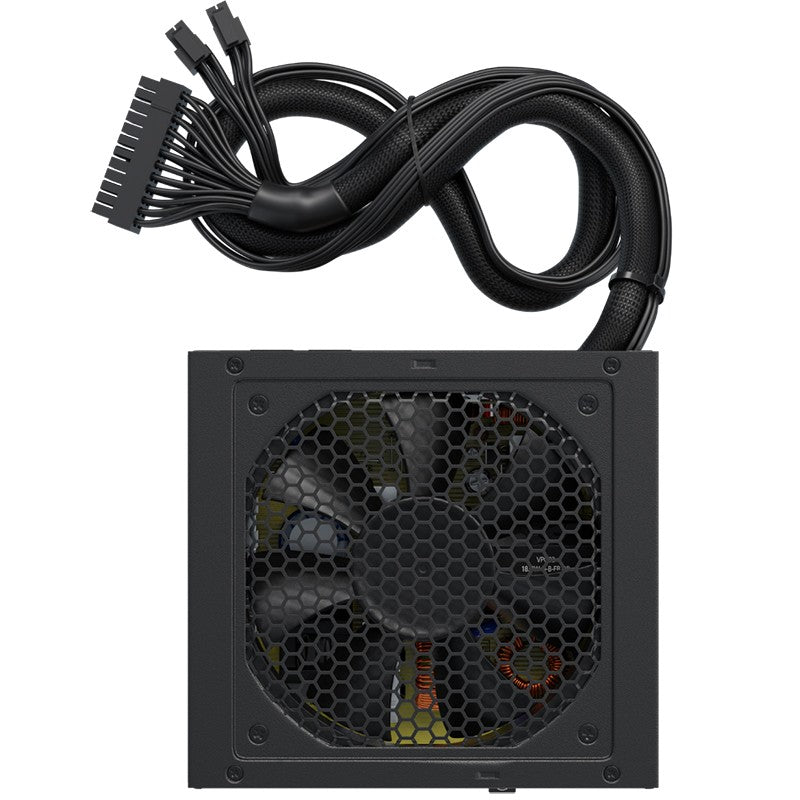

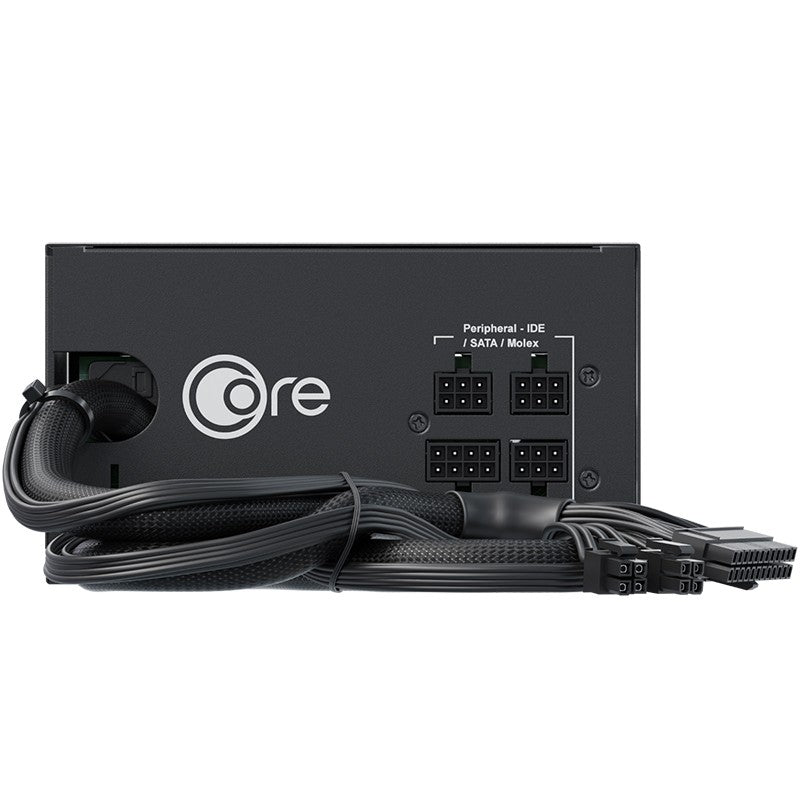

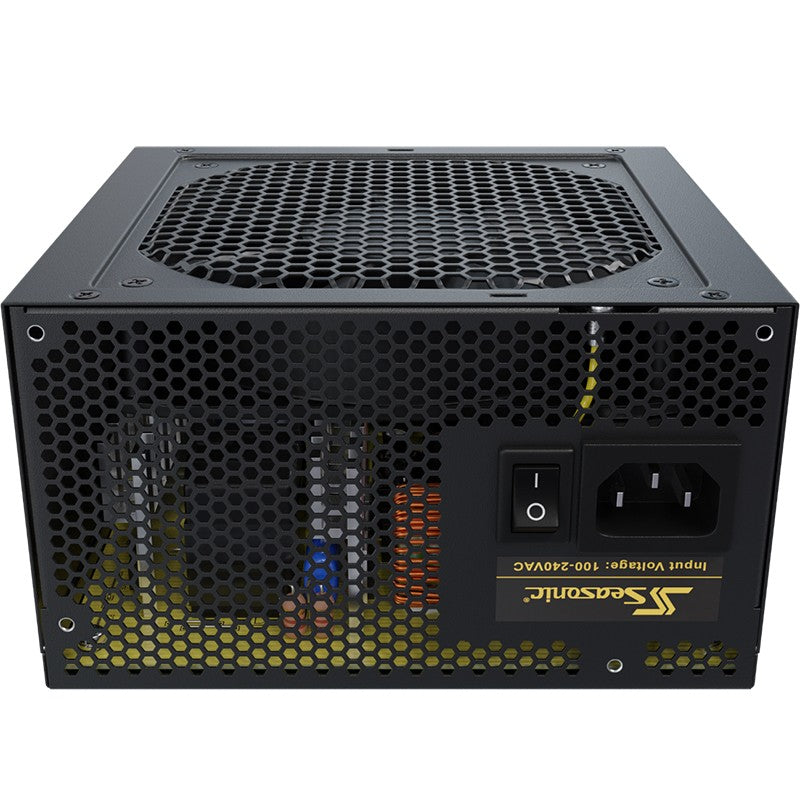

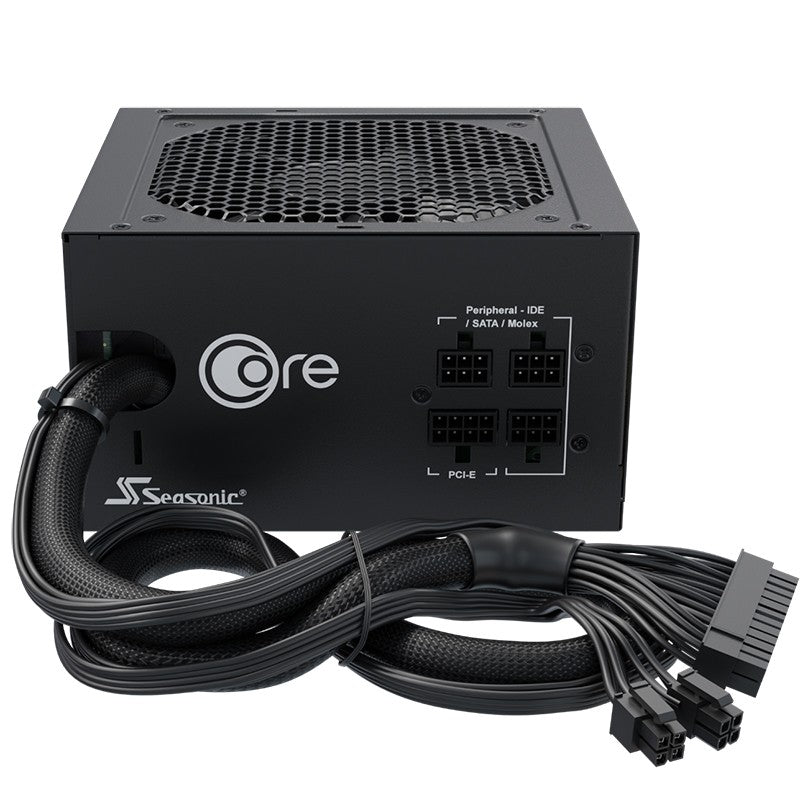

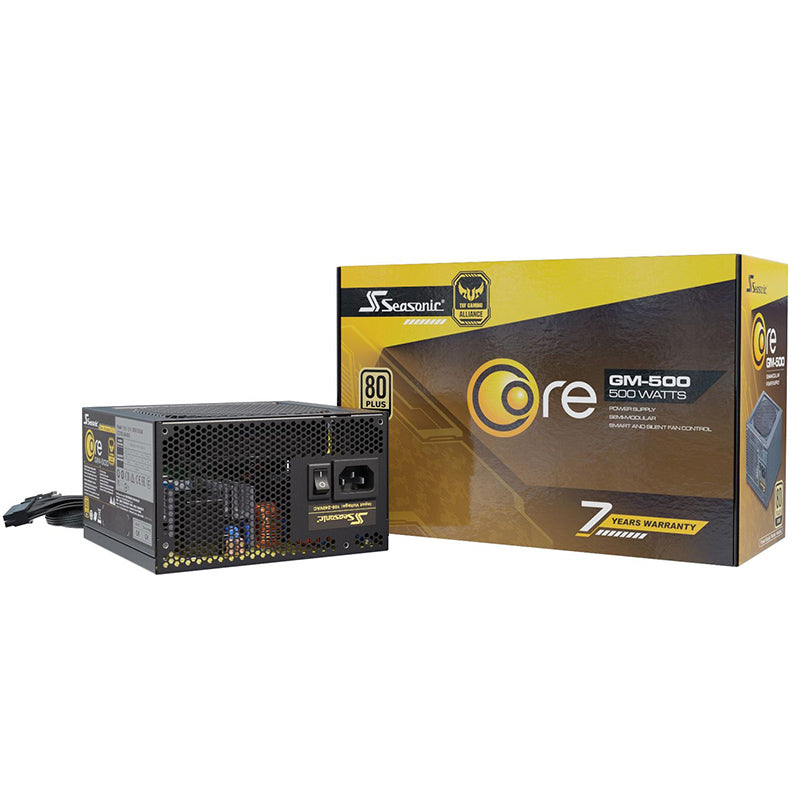

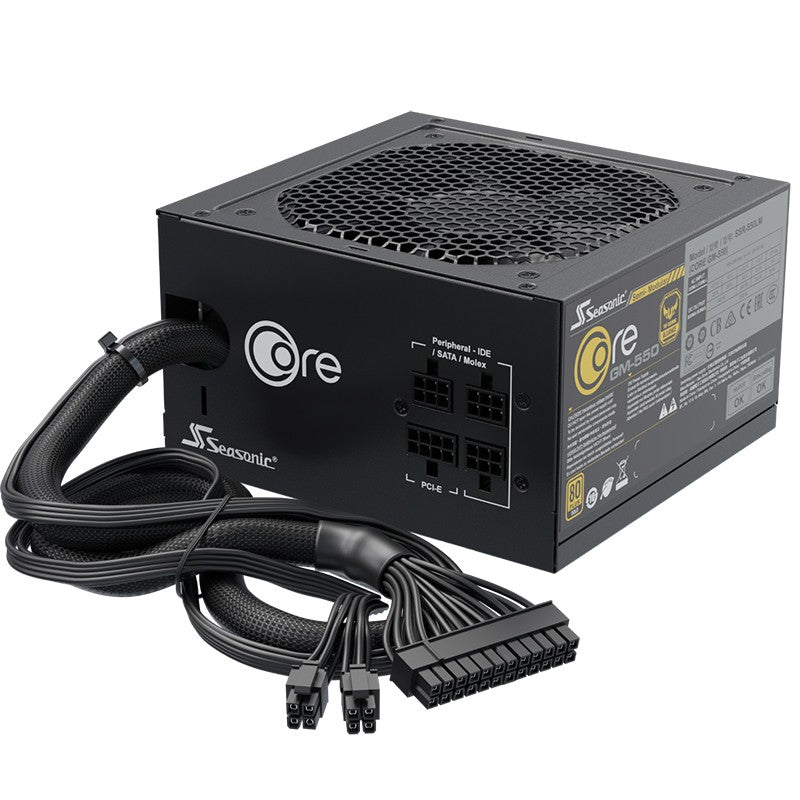

Seasonic 500W Focus Core GM 80 + Gold Semi Modular Power Supply (GM-500)
The CORE Series is the brand new series that completes the Seasonic lineup. The 80 PLUS® Gold certified CORE Series comes in all three cabling setups, including the fully modular CORE GX, semi-modular CORE GM, and lastly the fixed-cabled CORE GC. The Seasonic Smart and Silent Fan Control automatically adjusts the fan speed according to the temperature inside the power supply. As part of the TUF Gaming Alliance, the CORE Series is the perfect unit to go with your gaming PC.
SPECIFICATIONS:
| 80PLUS® | Gold | |
| Cybenetics Efficiency Level | TBA | |
| Cybenetics Noise Level | TBA | |
| Form Factor | Intel ATX 12 V | |
| Dimensions | 140 mm (L) x 150 mm (W) x 86 mm (H) | |
| Fan Information | Fan Size | 120 mm |
| Fan Control | Smart and Silent Fan Control | |
| Fan Bearing | Sleeve Bearing | |
| Life Expectancy | 25,000 hours at 40 °C, 15 % - 65 % RH | |
| Cable Information | Modularity | Semi-modular |
| Cable type | Flat black cables | |
| Electrical Features | Operating Temperature | 0 - 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C) |
| MTBF @ 25 °C, excl. fan | 100,000 hours | |
| AC Input | Full Range | |
| Protection | OPP, OVP, OCP, OTP, SCP, UVP | |
| Safety and Environmental | Safety and EMC | cTUVus, TUV, CB, CCC, BSMI, CE, FCC |
| Environmental Compliance | Energy Star, RoHS, WEEE, ErP Lot 6, REACH | |
| Warranty | 7 Years | |
POWER OUTPUT
| AC Input | Voltage: 100 V - 240 V | |||||
| Current: 7?3.5 A | ||||||
| Frequency: 50 Hz - 60 Hz | ||||||
| DC Output | Rail | +3.3 V | +5 V | +12 V | -12 V | +5 VSB |
| Maximum Power | 20 A | 20 A | 41 A | 0.3 A | 3 A | |
| 100 W | 492 W | 3.6 W | 15 W | |||
| Total continuous power | 500 W | |||||
CABLES:
| Cable type | Connector(s) per cable | Total length (mm) | Number(s) of cable(s) included | |
|---|---|---|---|---|
| MB (24/20 pins) | 1 | 610 | 1 | |
| CPU (8/4 pins) | 1 | 650 | 1 | |
| PCIe (8/6 pins) | 2 | 750 | 1 | |
| PCIe (8/6 pins) | 1 | 750 | 0 | |
| SATA | 4 | 810 | 1 | |
| SATA | 4 | 860 | 0 | |
| SATA | 4 | 760 | 0 | |
| SATA | 2 | 700 | 0 | |
| SATA | 2 | 570 | 0 | |
| SATA | 2 | 470 | 0 | |
| SATA | 2 | 450 | 1 | |
| Molex | 3 | 690 | 1 | |
| Molex | 2 | 470 | 0 | |
| Molex to SATA 3.3 Adapter | 2 | 300 | 0 | |
| Molex to FDD Adapter | 1 | 101 | 0 |
