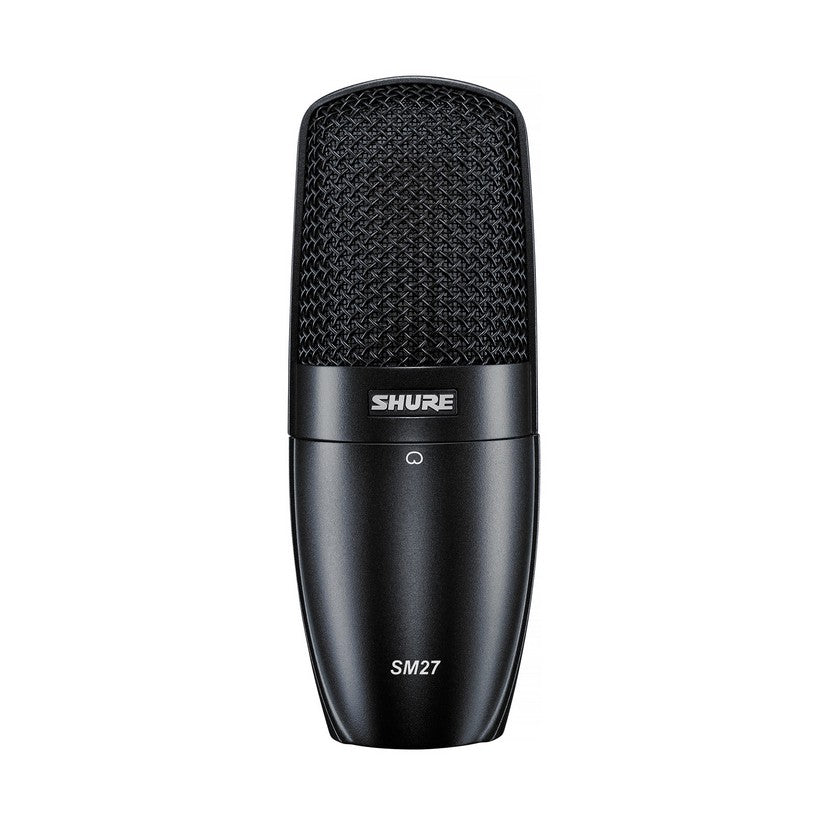

Shure SM27 Studio Condenser Cardioid Microphone


Price:
Sale price$811.20

Description

Product Name: Shure SM27 Studio Condenser Cardioid Microphone
Model Number: SHR-SM27
Brand: SHURE

Manufacturer Warranty: 1 Year

Shure SM27 Studio Condenser Cardioid Microphone

The SM27 is a rugged and versatile large-diaphragm, side-address cardioid condenser microphone, with low self-noise and extended frequency response that picks up vocal and instrument nuances with clarity. Durable Shure construction features three separate mesh layers that reduce wind and breath noise. Equally comfortable on stage or in the studio.


  • Cardioid polar pattern – the most commonly used pattern for both studio and live applications

  • 1 inch, externally biased, ultra-thin, 2.5 μm, 24 Karat gold-layered, low mass, Mylar® diaphragm provides superior transient response

  • Class A, discrete, transformerless preamplifier for transparency, extremely fast transient response and no crossover distortion, while minimizing harmonic and intermodulation distortions

  • Premium electronic components and gold-plated internal and external connectors

  • Subsonic filter eliminates rumble from mechanical vibration below 17 Hz

  • Switchable 15 dB pad for handling extremely high sound pressure levels (SPLs)

  • 3-position switchable low-frequency filter helps reduce unwanted background noise or counteract proximity effect

  • Integrated three-stage pop protection grille reduces plosives and other breath noise

  • Internal shock mount reduces handling and stand noise






SPECIFICATIONS:

Type

Condenser (externally biased)

Frequency Response

20 to 20,000 Hz

Polar Pattern

Cardioid

Impedance

150 Ω (140 Ω actual)

Sensitivity

(at 1 kHz, Open circuit voltage)

−37 dBV/Pa

1 Pascal=94 dB SPL

Maximum SPL

(1 kHz at 1% THD)

1000 Ω load: 133 dB (147 dB, Pad on)

2500 Ω load: 138 dB (152 dB, Pad on)

Signal-to-Noise Ratio

(referenced at 94 dB SPL at 1 kHz)

84.5 dB

S/N ratio is difference between 94 dB SPL and equivalent SPL of self noise, A-weighted

Dynamic   Range

(at 1 kHz)

1000 Ω load: 123 dB

2500 Ω load: 128 dB

Common Mode Rejection

(20 Hz to 20 kHz)

> 50 dB

Clipping Level

(20Hz-20 kHz at 1% THD)

1000 Ω load: 1 dBV

2500 Ω load: 7 dBV

THD of microphone preamplifier when applied input signal is equivalent to cartridge output at specified SPL

Self Noise

(typical, equivalent SPL, A-weighted)

9.5 dB

Polarity

Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3

Weight

642 g

Switch

Attenuator: -15 dB

Low frequency response: flat; -6 dB/octave below 115 Hz; -18 dB/octave below 80 Hz

Connector

Three-pin professional audio (XLR), male

Power Requirements

48 Vdc phantom, 5.4 mA
