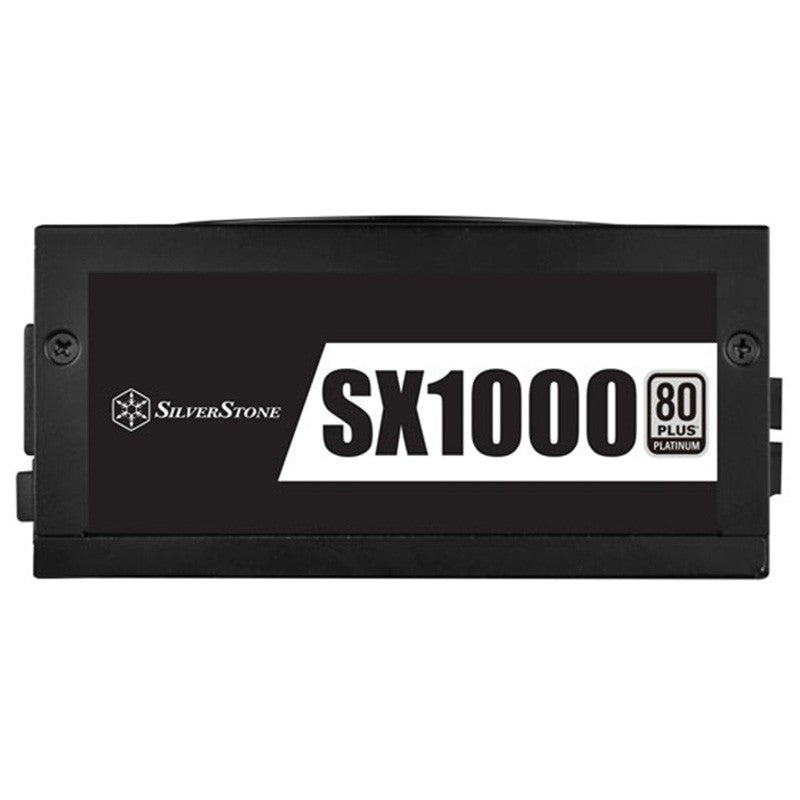

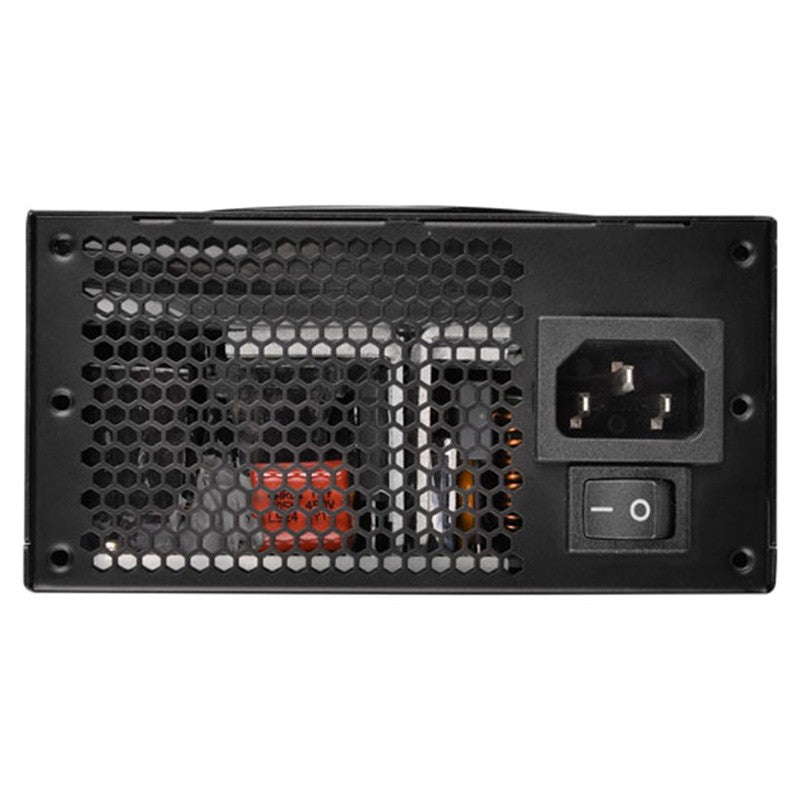

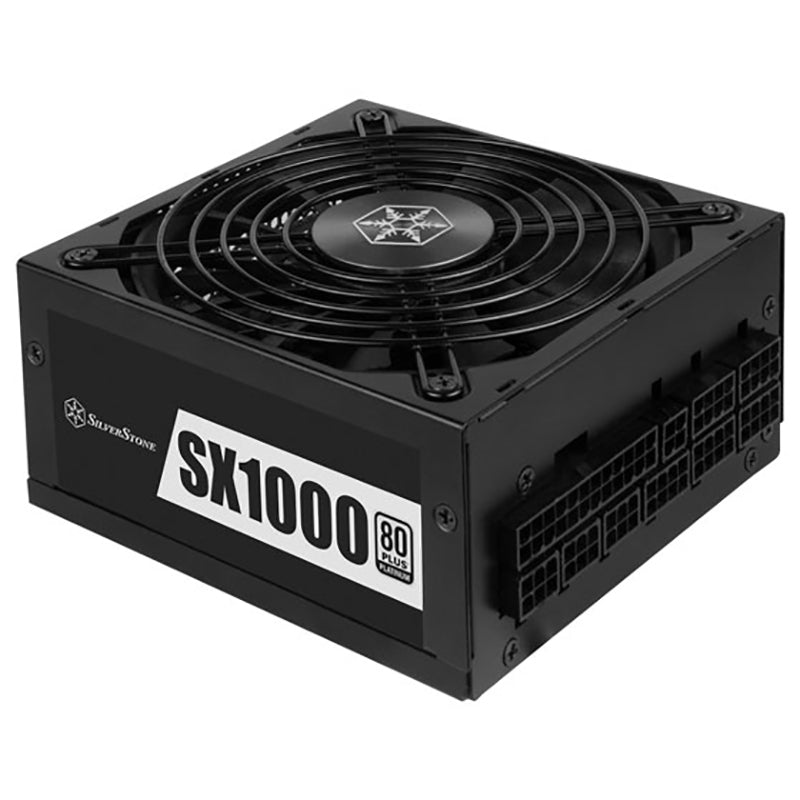

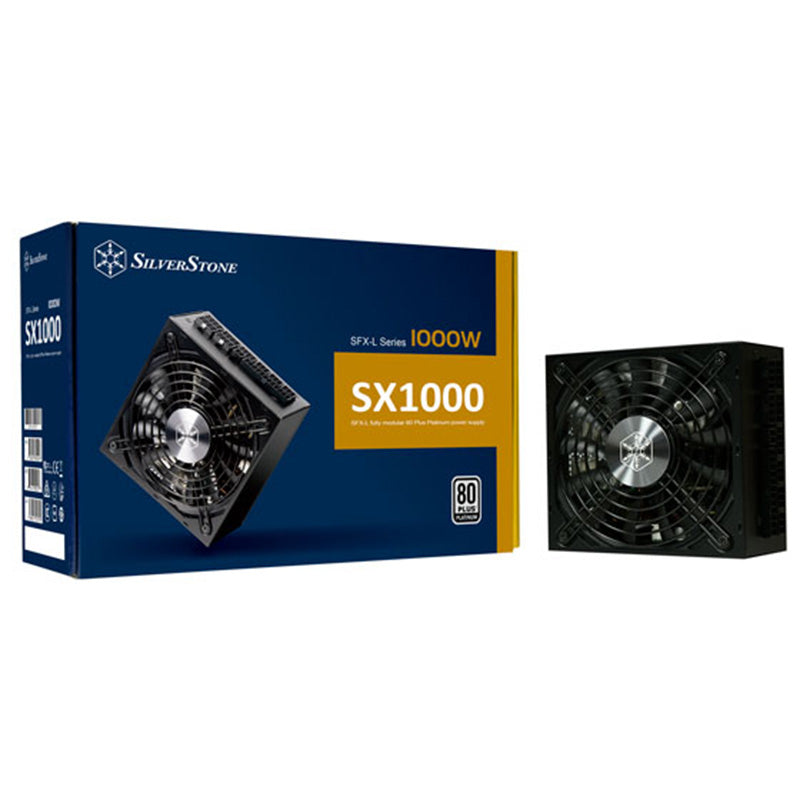

SilverStone 1000W 80+ Platinum Fully Modular SFX-L Power Supply

Max. DC Output

1000W

Power density

969W per litre

Load Range

Output

Max.(Amps)

Peak (Amps)

Min.(Amps)

Range (%)

Line   Reg.(%)

Ripple(mVp-p)

+3.3V

25A

/

0A

±3%

±1%

40mV

+5V

25A

/

0A

±3%

±1%

40mV

+12V

83.3A

/

0A

±3%

±1%

100mV

+5VSB

3.0A

/

0A

±5%

±1%

40mV

-12V

0.3A

/

0A

±10%

±1%

80mV

Combined +3.3V & +5V

125W

Combined +12V

999.6W

Input Voltage

90V ~ 264V

Input Frequency Range

47Hz ~ 63Hz

PFC

Active PFC（PF>0.9 at full load）

Efficiency

89% ~ 92% at 20% ~ 100% loading

MTBF

100,000 hours

Operating temperature

0°C ~ 50°C

Protection

Over current protection

Over power protection

Over voltage protection

Short circuit protection

Over temperature protection

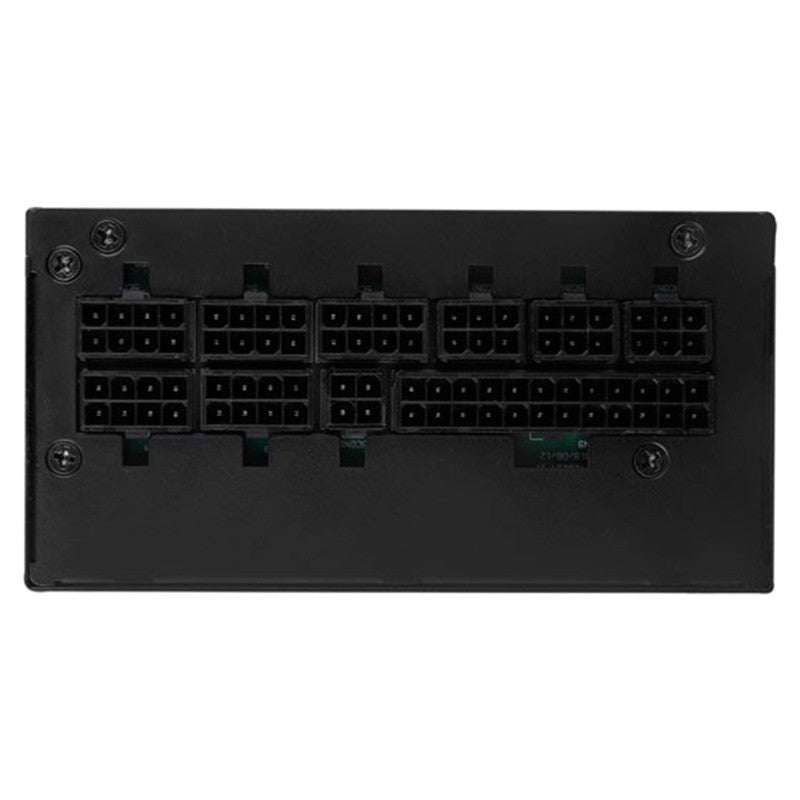

Connectors

1 x 24 / 20-Pin motherboard connector（300mm）

2 x 8 / 4-Pin EPS / ATX 12V connector（"400mm"   x 2）

6 x 8 / 6-Pin PCIE connector（"400mm / 150mm" x 3）

8 x SATA connector（"300mm   / 200mm / 100mm / 100mm" x 2）

3 x 4-Pin Peripheral connector（300mm / 200mm / 200mm）

1 x 4-Pin Floppy adapter connector（100mm）

Cooling System

Single 120mm dual ball bearing fan

Noise Level

0 ~ 36 dBA

Certification

80 PLUS Platinum

Form factor

SFX-L

Dimension

125 mm (W) x 63.5 mm (H) x 130 mm (D)

Weight

1.39 Kg
