Description
SPECIFICATIONS:
Colour |
Black (lead-free paint) |
|||||
Max. DC Output |
1000W |
|||||
Power density |
517W per liter |
|||||
Load Range |
Output |
+3.3V |
+5V |
+12V |
+5VSB |
-12V |
Max.(Amps) |
22A |
22A |
83.5A |
3A |
0.3A |
|
Min.(Amps) |
0A |
0A |
0A |
0A |
0A |
|
Range (%) |
±3% |
±3% |
+5/-7% |
±5% |
±5% |
|
Line Reg.(%) |
±1% |
±1% |
±1% |
±1% |
±1% |
|
Ripple(mVp-p) |
30mV |
30mV |
70mV |
40mV |
40mV |
|
Combined +3.3V & +5V |
120W |
|||||
Combined +12V |
1000W |
|||||
Input Voltage |
90 ~ 264 Vrms |
|||||
Input Frequency Range |
47Hz ~ 63Hz |
|||||
PFC |
Active PFC (PF>0.9 at full load) |
|||||
Efficiency |
≥87% & <89% overall efficiency |
|||||
MTBF |
100,000 hours |
|||||
Operating temperature |
0°C ~ 50°C |
|||||
Protection |
Over Current Protection Over Power Protection Over Voltage Protection Short Circuit Protection Under Voltage Protection Over Temperature Protection No load operation |
|||||

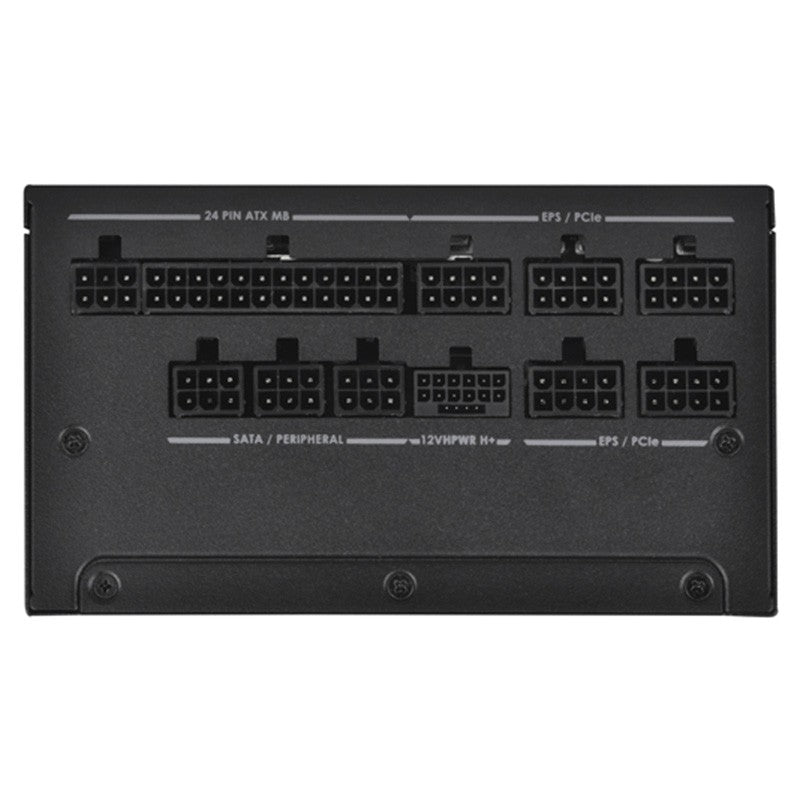

Connectors |
1 x 24 / 20-Pin motherboard connector 2 x 8 / 4-Pin EPS / ATX 12V connector 6 x 8 / 6-Pin PCIe connectors 1 x 12+4-Pin 12VHPWR connector 12 x SATA connectors 3 x 4-Pin Peripheral connector 1 x 4-Pin Floppy connector |
|||||
Cooling System |
Silent 135mm FDB fan |
|||||
Noise Level |
0 dBA minimum |
|||||
Certification |
Cybenetics Gold |
|||||
Form factor |
ATX (PS2) |
|||||
Dimension |
150mm (W) × 86mm (H) × 150mm (D) 5.91" (W) x 3.39" (H) x 5.91" (D) |
|||||
Weight |
2.88 kg |
|||||
