Description
SPECIFICATIONS:
Colour |
Black（Lead-Free Paint） |
|||||
Max. DC Output |
1000W |
|||||
Power density |
554W per liter |
|||||
Load Range |
Output Max.(Amps) Min.(Amps) Range (%) Line Reg.(%) Ripple(mVp-p) |
+3.3V 25A 0A ±3% ±1% 50mV |
+5V 22A 0A ±3% ±1% 50mV |
+12V 83A 0.15A ±3% ±1% 120mV |
+5VSB 3A 0A ±5% ±1% 50mV |
-12V 0.3A 0A ±10% ±1% 120mV |
Combined +3.3V & +5V |
120W |
|||||
Combined +12V |
996W |
|||||
Input Voltage |
90V~264V |
|||||
Input Frequency Range |
47Hz~63Hz |
|||||
PFC |
Active PFC（PF>0.9 at full load） |
|||||
Efficiency |
89%~92% at 20%~100% loading |
|||||
MTBF |
100,000 hours |
|||||
Operating temperature |
0°C ~ 40°C |
|||||
Protection |
Over power protection Over current protection Over voltage protection Over Temperature protection Under voltage protection Short circuit protection |
|||||

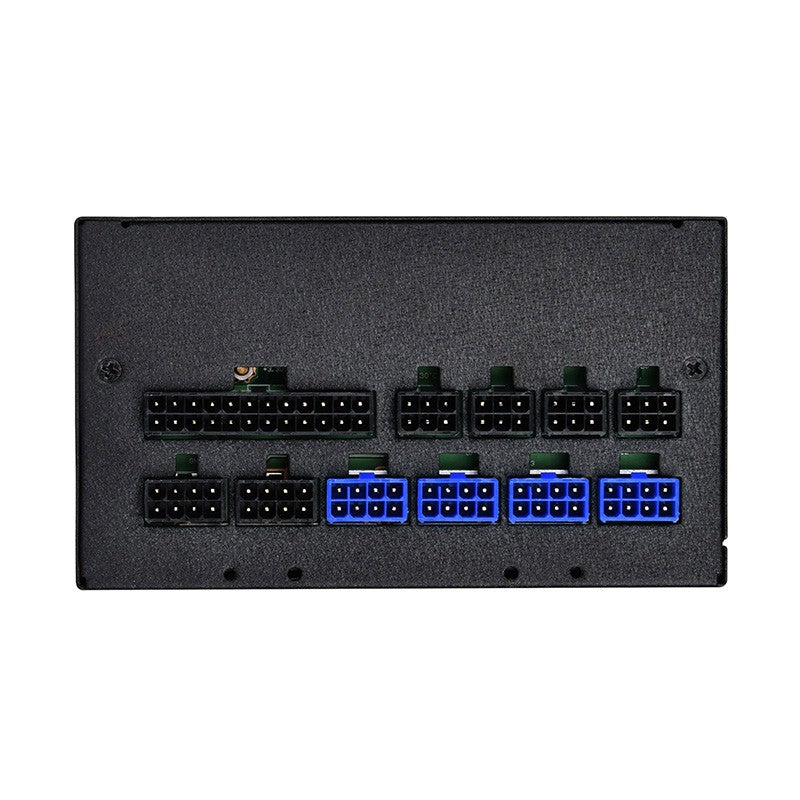

Connectors |
1 x 24 / 20-Pin motherboard connector（”600mm”） 1 x 8 / 4-Pin EPS / ATX 12V connector（”550mm”） 1 x 8 / 4-Pin EPS / ATX 12V connector（”750mm”） 8 x 8 / 6-Pin PCIE connector（”550mm/150mm” X4） 8 x SATA connector（"600mm /150mm / 150mm / 150mm" X2） 6 x 4-Pin Peripheral connector（”600mm / 150mm / 150mm” X2） 2 x 4-Pin Floppy connector（”150mm” X2） |
|||||
Cooling System |
Single 120mm HYB fan |
|||||
Noise Level |
18 dBA minimum |
|||||
Certification |
80 PLUS Platinum |
|||||
Form factor |
ATX |
|||||
Dimension |
150 mm (W) x 86 mm (H) x 140 mm (D) |
|||||
Weight |
1.98kg |
|||||
