Description

SPECIFICATIONS:
Material |
Polycarbonate fan blades, PBT frame |
Bearing |
Hydraulic bearing |
Connectors |
4 pin PWM connector, 4-1 pin ARGB (5V LED) |
Rated Voltage |
12V |
Starting Voltage |
7V |
Rated Current |
0.18A |
Rated Power |
Fan:2.16W LED:1.8W |
Speed |
500±200 ~ 1,500 ±10% RPM |
Airflow |
60.4 CFM |
Static Pressure |
1.4 mmH2O |
Noise Level |
30 dBA |
Dimension |
120mm (W) x 25mm (H) x 120 mm (D) 4.72" (W) x 0.98" (H) x 4.72" (D) |
Weight |
422g |
Notes |

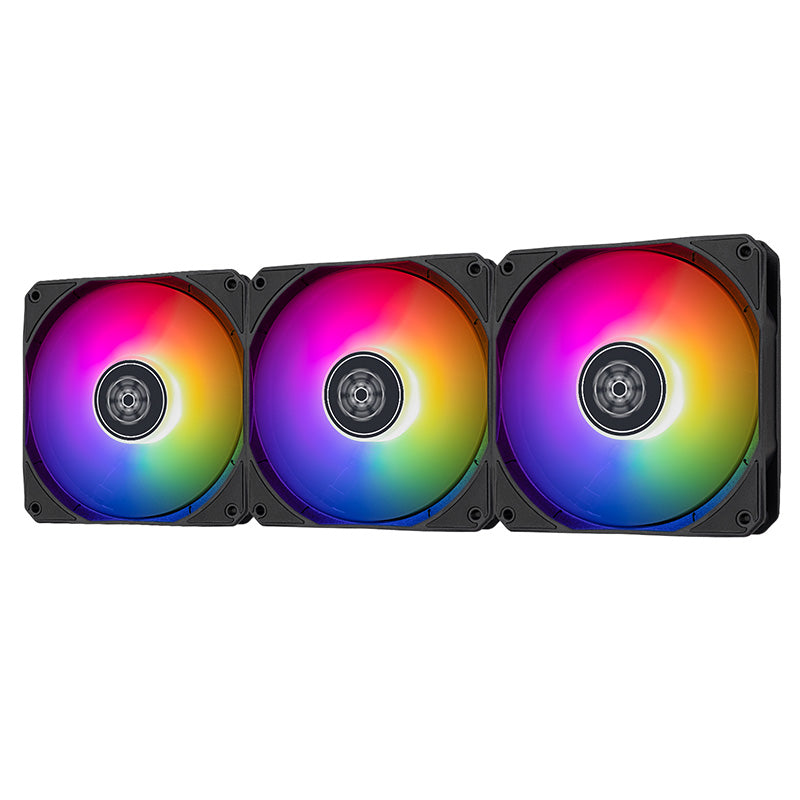

*Please do not hot-swap the fan-to-fan connector during operation to prevent potential damage and degradation of the fan's lifespan. **As only 1 of the 3 fans has PWM and ARGB cable output, the other 2 must be connected to it for operation. |
