SilverStone 1650W Zeus 1650R 80+ Titanium Fully Modular PCIe 5 ATX 3.1 Power Supply

Max. DC Output

1650W

Power density

710.6W/L

Combined +3.3V & +5V

120W

Combined +12V

1650W

Input Voltage

90 ~ 264 Vrms

Input Frequency Range

47Hz ~ 63Hz

PFC

Active PFC (PF>0.9 at full load)

Efficiency

≥91% & <93% overall efficiency

MTBF

100,000 hours

Operating temperature

0°C ~ 50°C

Protection

Over Current Protection

Over Power Protection

Over Voltage Protection

Over Temperature Protection

Short Circuit Protection

Under Voltage Protection

No load operation

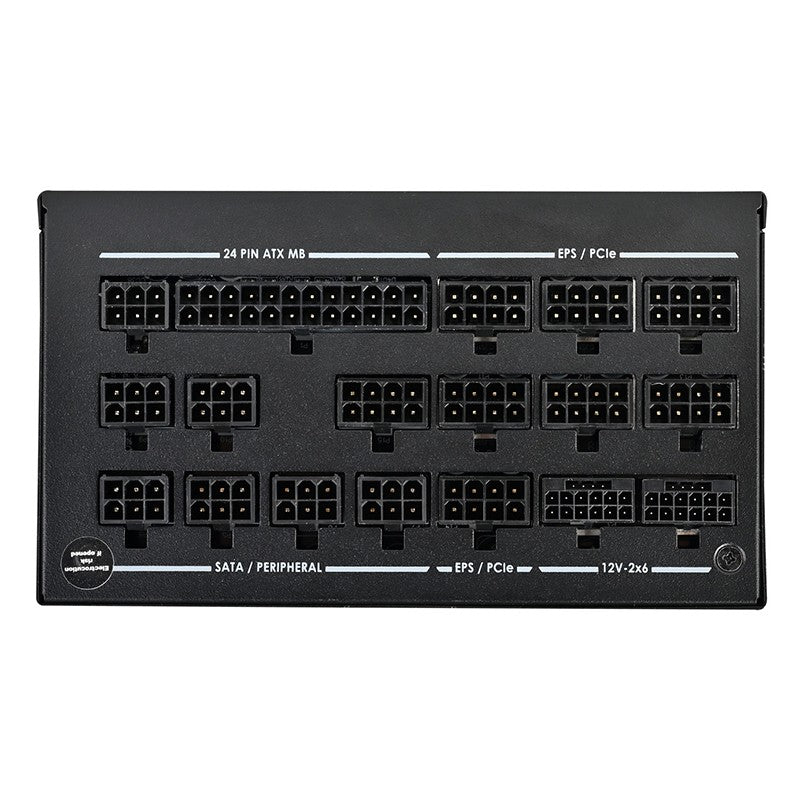

Connectors

1 x 24 / 20-Pin motherboard connector

2 x 8 / 4-Pin EPS / ATX 12V connector

3 x 12+4-Pin 12V-2x6 connectors

12 x 8 / 6-Pin PCIe connectors

16 x SATA connectors

6 x 4-Pin Peripheral connectors

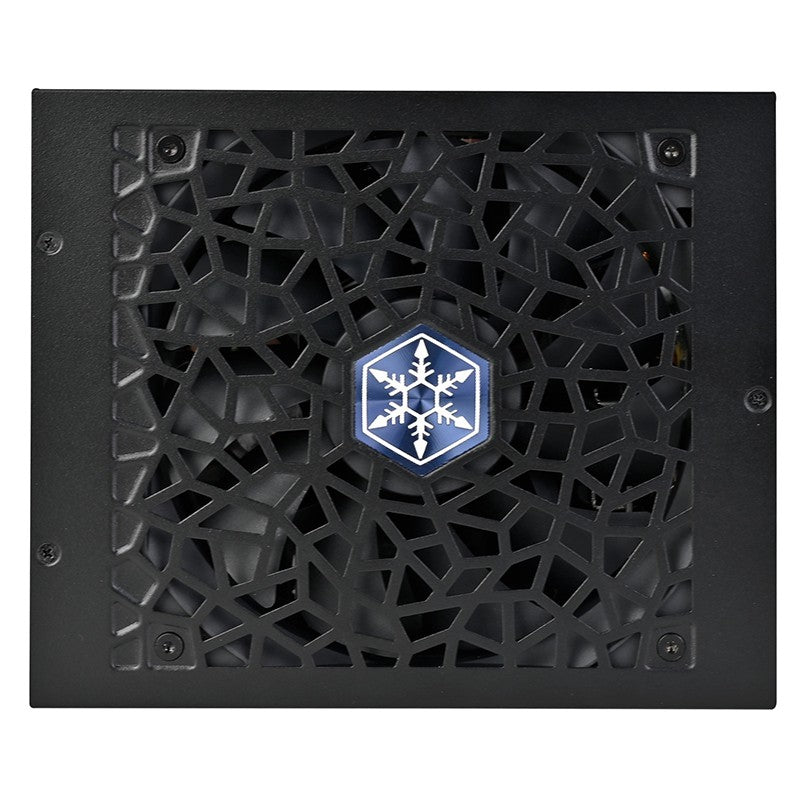

Cooling System

Silent 135mm FDB fan

Noise Level

18 dBA minimum

Certification

80 PLUS Titanium

Form factor

ATX (PS2)

Dimension

150mm (W) x 86mm (H) x 180mm (D)

5.91” (W) x 3.39” (H) x 7.1” (D)

Weight

3.87 kg
