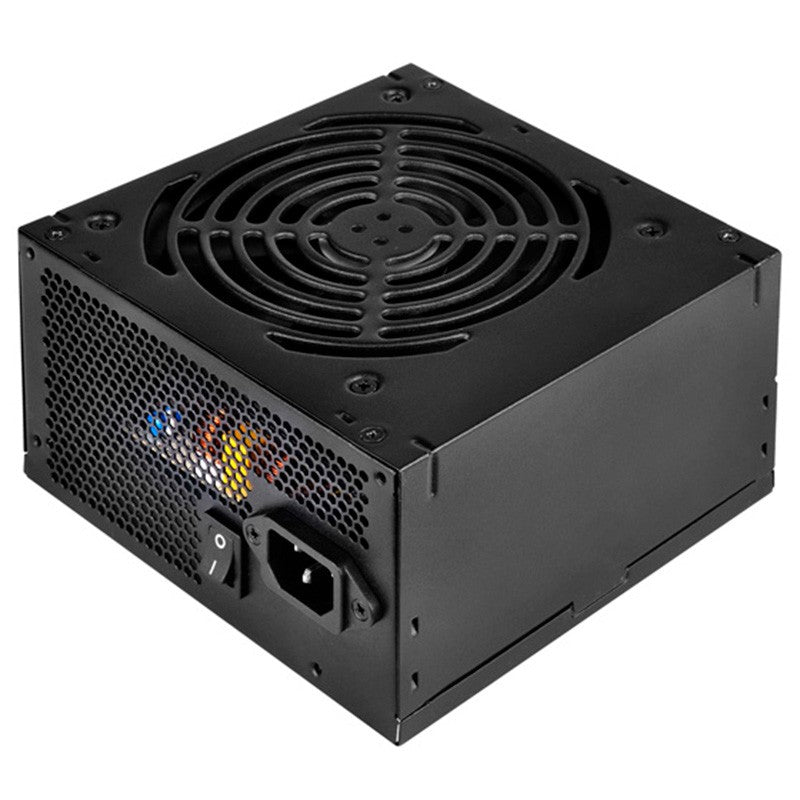

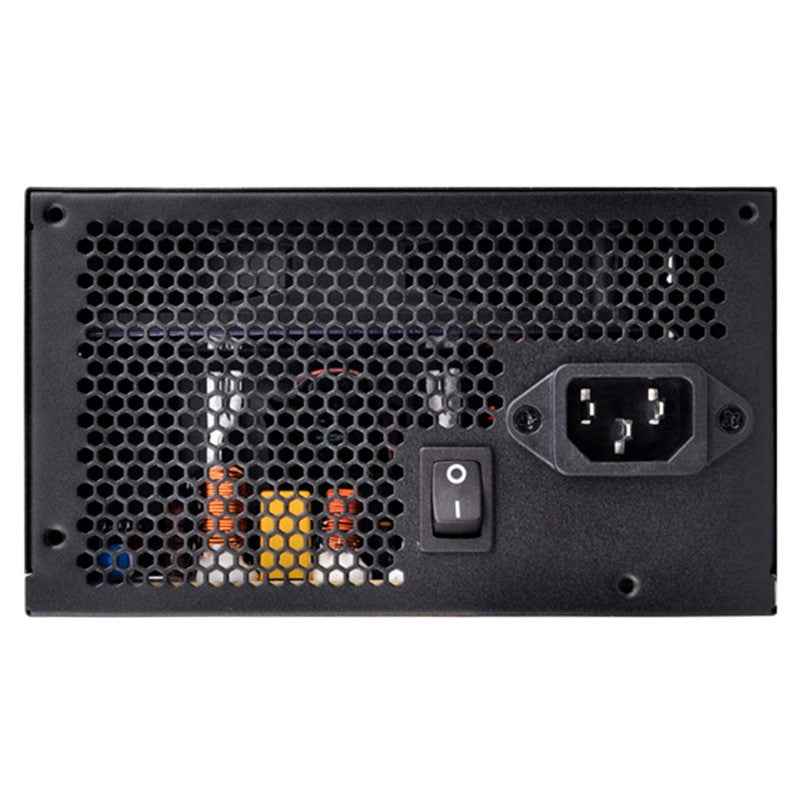

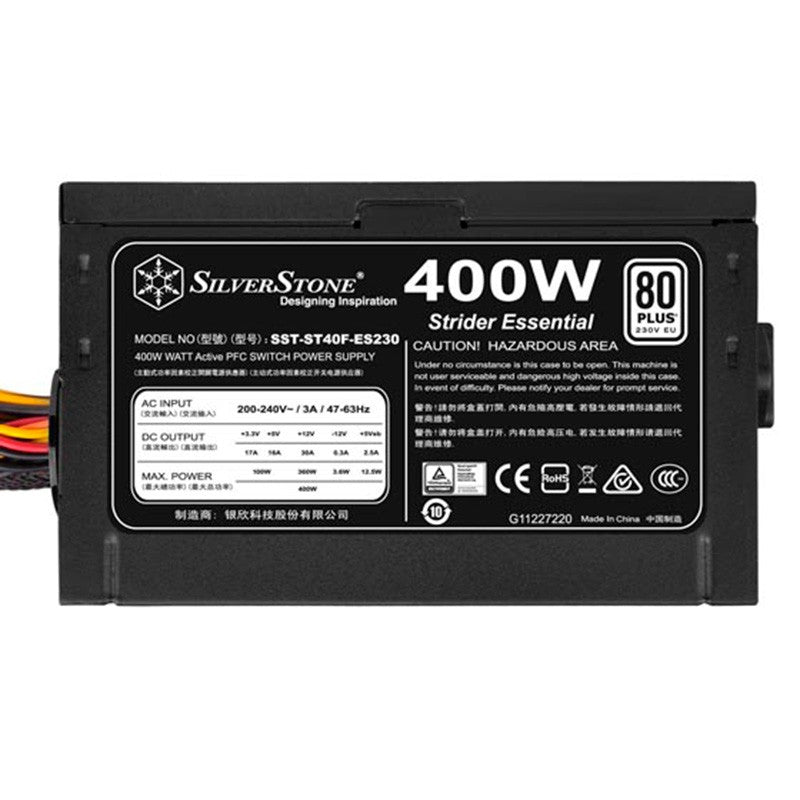

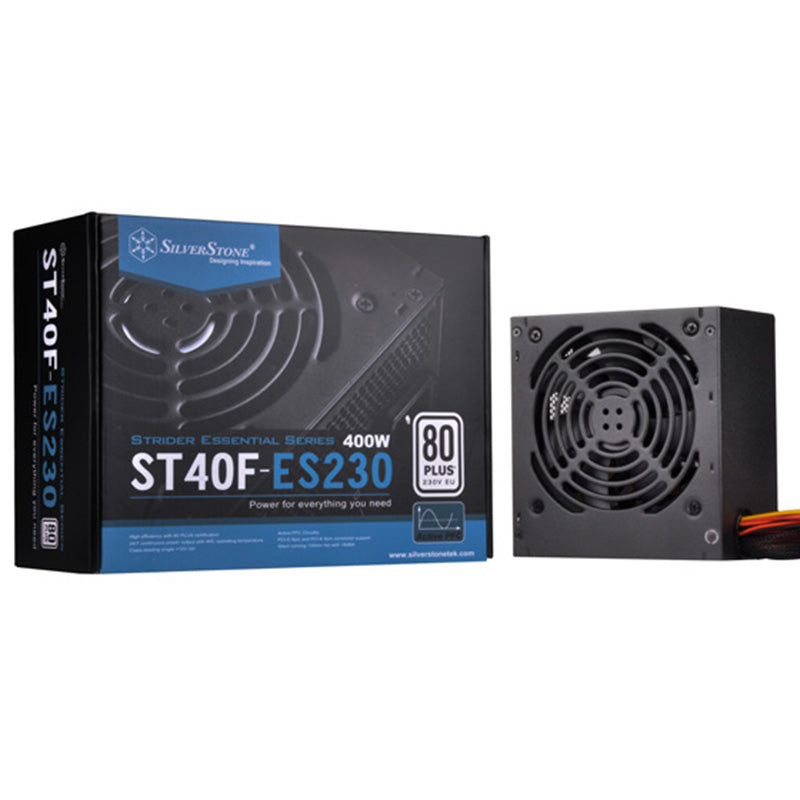

Description
SPECIFICATIONS:
Max. DC Output |
400W |
Power density |
221W per liter |
Load Range |
+3.3V+5V+12V+5VSB-12VMax.(Amps)17A16A30A2.5A0.3APeak (Amps)/////Min.(Amps)0A0A0A0A0ARange (%)±5%±5%±5%±5%±10%Line Reg.(%)±1%±1%±1%±1%±1%Ripple(mVp-p)50mV50mV120mV50mV120mV |
Load Range |
+3.3V +5V +12V +5VSB -12VMax.(Amps) 17A 16A 30A 2.5A 0.3APeak (Amps) / / / / /Min.(Amps) 0A 0A 0A 0A 0ARange (%) ±5% ±5% ±5% ±5% ±10%Line Reg.(%) ±1% ±1% ±1% ±1% ±1%Ripple(mVp-p) 50mV 50mV 120mV 50mV 120mV |
Combined +3.3, +5V |
100W |
Combined +12V |
360W |
Input Voltage |
180V~264V |
Input Frequency Range |
47Hz~63Hz |
PFC |
Active PFCˆPF>0.9 at full load‰ |
Efficiency |
82% ~ 85% at 20% ~ 100% loading |
MTBF |
100,000 hours |
Operating temperature |
0°C ~ 40°C |
Protection |
Over Power Protection Over Voltage Protection Short Circuit Protection |
Connectors |
1 x 24 / 20-Pin motherboard connectorˆ500mm‰ 1 x 8 / 4-Pin EPS / ATX 12V connectorˆ750mm‰ 2 x 8 / 6-Pin PCIE connectorˆ"500mm / 150mm" x 2‰ 4 x SATA connectorˆ"500mm / 150mm" x 2‰ 2 x 4-Pin Peripheral connectorˆ500mm / 150mm / 150mm / 150mm‰ 1 x 4-Pin Peripheral connectorˆ500mm / 150mm / 150mm‰ 1 x 4-Pin Floppy connectorˆ500mm / 150mm / 150mm / 150mm‰ |

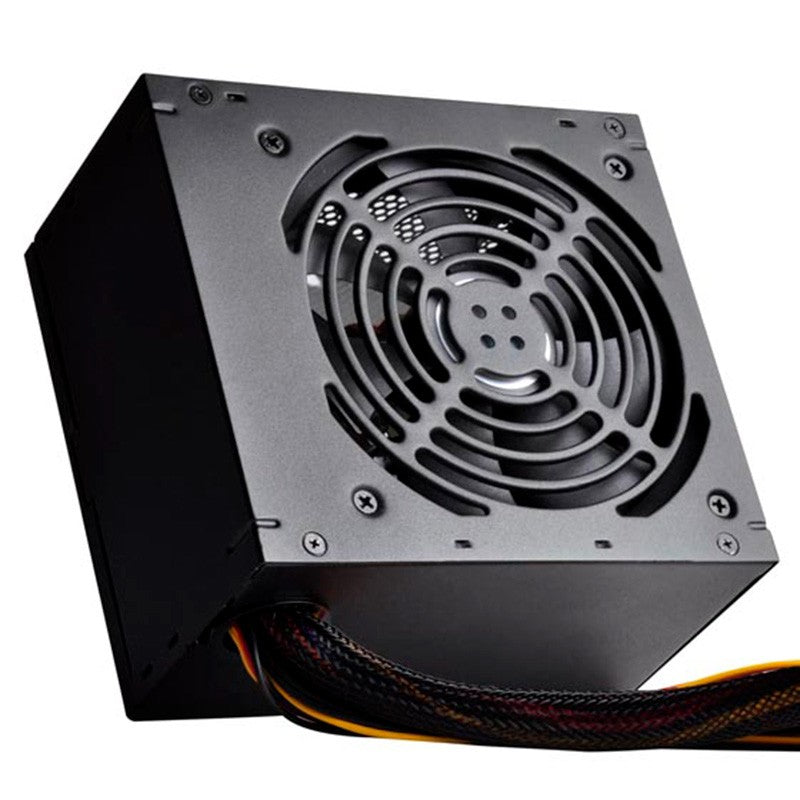

Cooling System |
Single 120mm silent fan |
Noise Level |
18 dBA minimum |
Dimension |
150 mm (W) x 86 mm (H) x 140 mm (D) |
Weight |
1.26 kg |
Form factor |
ATX |
Certification |
80 PLUS |
Other |
GPU Support list |
Compatible with |
ATX12V v2.4 |
