Silverstone 500W ET500 80+ Bronze ATX Power Supply

Max. DC Output

500W

Power density

277W per liter

Combined +3.3V & +5V

100W

Combined +12V

456W

Input Voltage

100 ~ 264 Vrms

Input Frequency Range

47Hz ~ 64Hz

PFC

Active PFC（PF>0.9 at full load）

Efficiency

82% ~ 85% at 20% ~ 100% loading

MTBF

100,000 hours

Operating temperature

0°C ~ 40°C

Protection

Over power protection

Over voltage protection

Short circuit protection

Connectors

1 x 24 / 20-Pin motherboard connector（”500mm”）

1 x 8 / 4-Pin EPS / ATX 12V connector（”600mm”）

2 x 8/6-Pin PCIE connector（”500mm/100mm”）

6 x SATA connector（"500mm   /100mm / 100mm" x 2）

3 x 4-Pin Peripheral connector（”500mm   / 100mm / 100mm”）

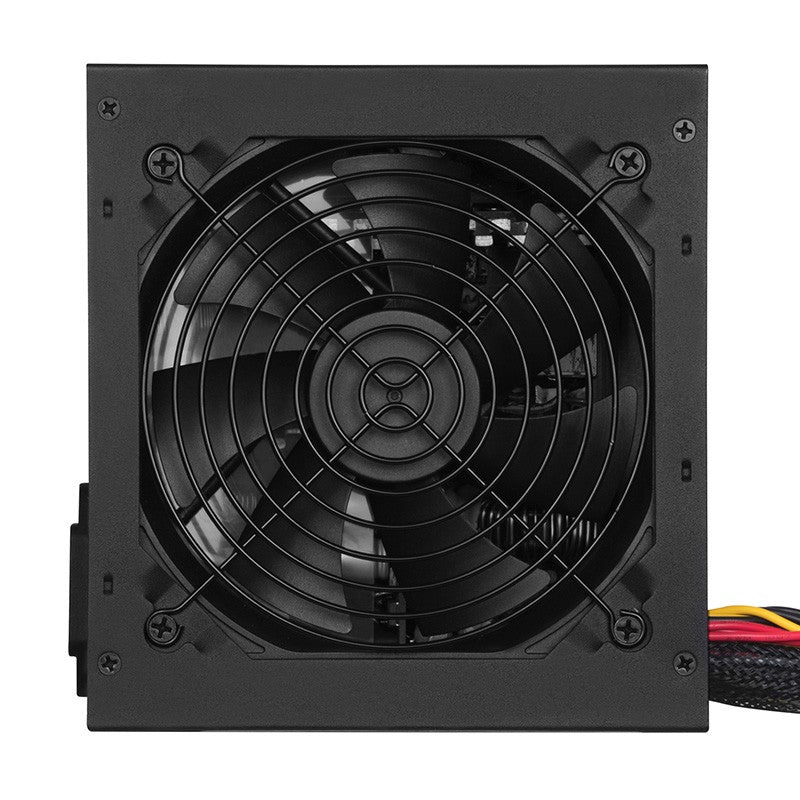

Cooling System

Single 120mm silent fan

Noise Level

18dBA minimum

Certification

80 PLUS Bronze

Form factor

ATX

Dimension

150 mm (W) x 86 mm (H) x 140 mm (D)

Weight

1.44 Kg
