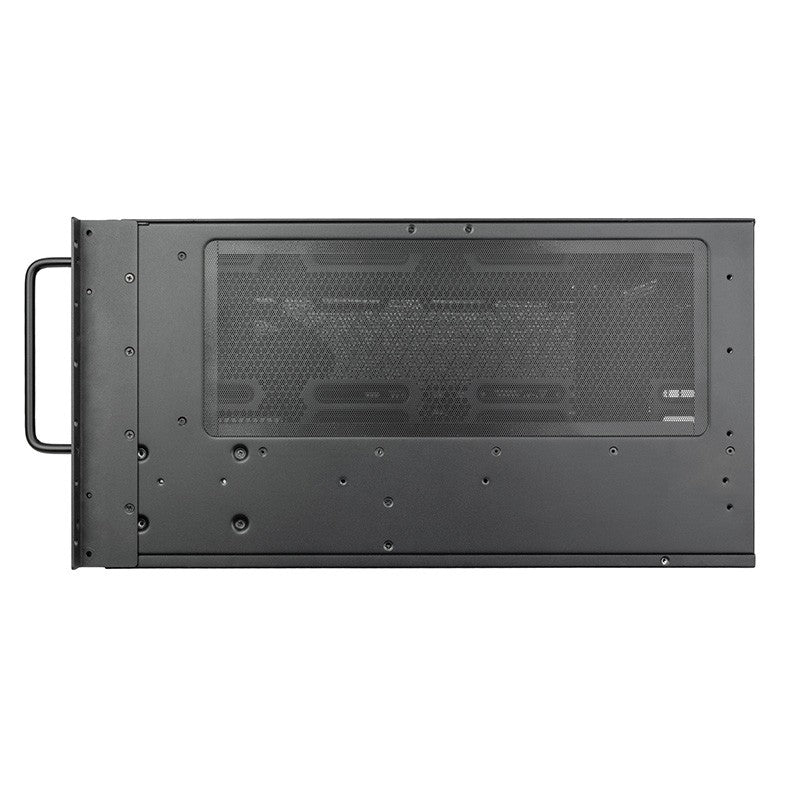

SilverStone 6U 12-Bay Rackmount Chassis

Material

Steel

Motherboard

**SSI-EEB, SSI-CEB, Extended ATX, ATX, Micro-ATX, Mini-ITX

HDD

Backplane: 12 ports SAS / SATA to Mini-SAS HD SFF-8643 x 3 with SGPIO

Interface:

SAS-1 / SAS-2 / SAS-3

SATA-1 / SATA-2 / SATA-3

Power connector on backplane: 4-pin Peripheral x 6

Drive bay

External: 3.5" hot-swap x 12

Internal: 2.5" x 4

Cooling system

Front: 120mm x 3

Rear: 80mm x 2 (2 x 80mm fans included)

Side:

Left : 120mm x 3 / 140mm x 2

Right : 120mm x 3 / 140mm x 2

Internal: 80mm x 3

Radiator support

Front: 120mm / 240mm / 360mm

Side:

Left : 120mm / 140mm / 240mm / 280mm / 360mm

Right : 120mm / 240mm / 240mm / 360mm

Limitation of CPU cooler

w/ GPU holder: 132mm

w/o GPU holder: 150mm

Expansion slot

8

Limitation of expansion card

Length : 340mm

Width : 156mm

Power supply

Primary PSU slot: PS2 (ATX) / Mini Redundant / 2U Redundant

Secondary PSU slot: PS2 (ATX)

Front I/O port

USB3 Type-C x 1

USB3 Type-A x 2

LED Indicators

Chassis

Power LED x 1: Blue

HDD Access x 1: Green

LAN LED x 2: Green

HDD Tray

HDD Power LED x 12: Yellow

HDD Access x 12: Blinking green

Front Buttons

Power ON/OFF

System Reset

Dimension

438mm (W) x 265mm (H) x 522mm (D), 60.6 liters

17.24" (W) x 10.43" (H) x 20.55" (D), 60.6 liters

Net weight

17.9 kg
