SilverStone 750W ATX 3.0 80+ Gold Power Supply - White

Color

White

Max. DC Output

750W

Power density

415W/L

Load Range

Output

Max.(Amps)

Min.(Amps)

Range (%)

Line Reg.(%)

Ripple(mVp-p)

+3.3V

20A

0A

±3%

±1%

40mV

+5V

20A

0A

±3%

±1%

40mV

+12V

62.5A

0A

+5%-7%

±1%

80mV

+5VSB

3A

0A

±5%

±1%

40mV

-12V

0.3A

0A

±8%

±1%

80mV

Combined +3.3V & +5V

100W

Combined +12V

750W

Input Voltage

90 ~ 264 Vrms

Input Frequency Range

47Hz ~ 63Hz

PFC

Active PFC (PF>0.9 at full load)

Efficiency

≥87% & <89%

MTBF

100,000 hours

Operating temperature

0°C ~ 50°C

Protection

Over Current Protection

Over Power Protection

Over Voltage Protection

Short Circuit Protection

Over Temperature Protection

Under Voltage Protection

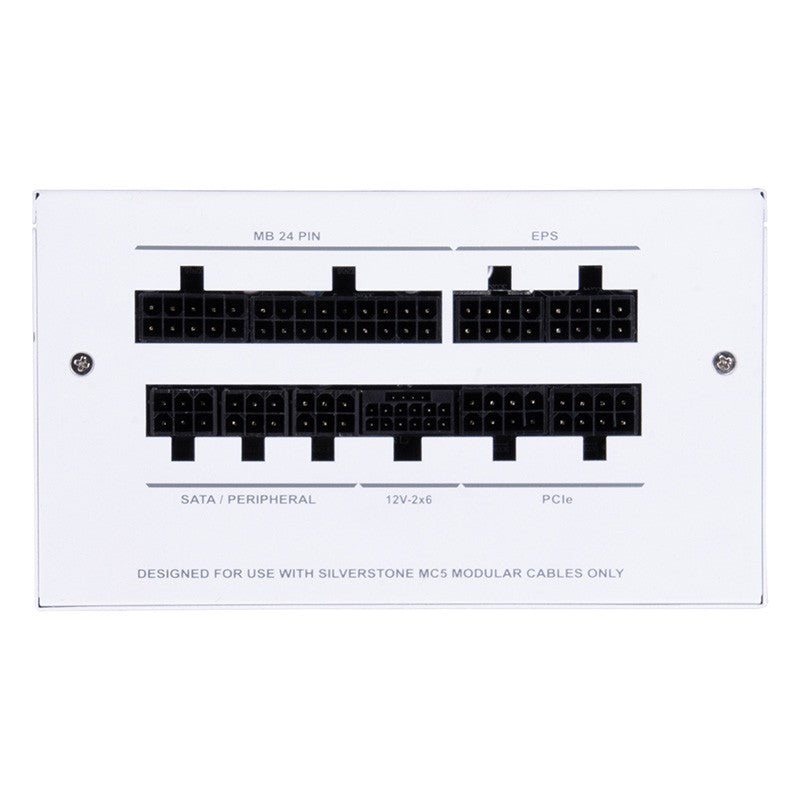

Connectors

1 x 24 / 20-Pin motherboard connector

2 x 8 / 4-Pin EPS / ATX 12V connector

4 x 8 / 6-Pin PCIe connectors

1 x 12V-2x6 connector

8 x SATA connectors

4 x 4-Pin Peripheral connector

※ DA750R-GMA/DA750R-GMA-WWW are not compatible with PP05-E and PP06   cables.

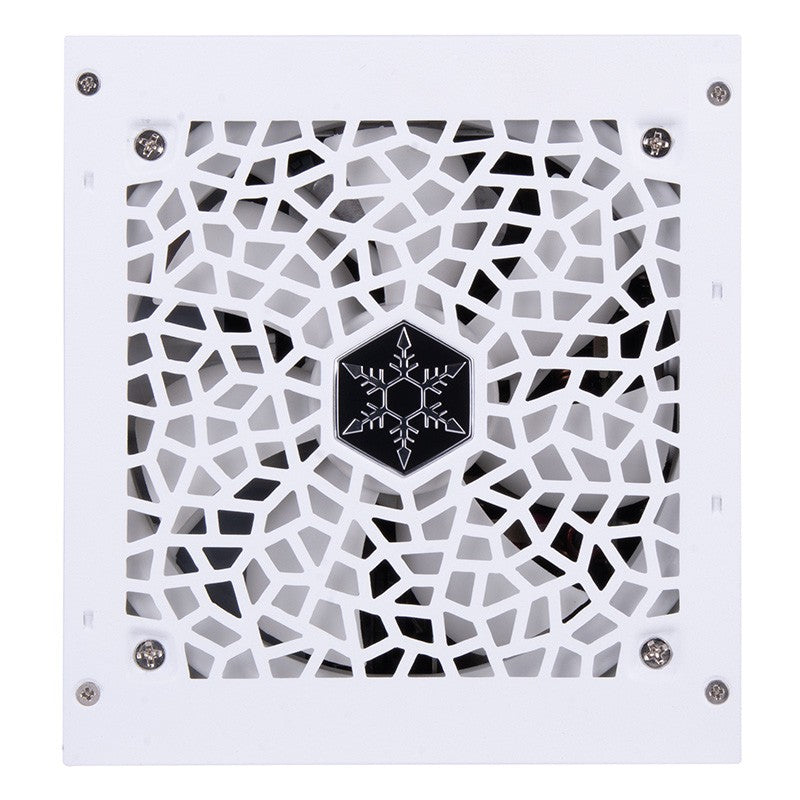

Cooling System

Silent 120mm fan

Noise Level

0 dBA minimum

Certification

80 PLUS Gold

Form factor

ATX (PS2)

Dimension

150mm (W) × 86mm (H) × 140mm (D)

5.91" (W) x 3.39" (H) x 5.51" (D)

Weight

2.08kg
