Description

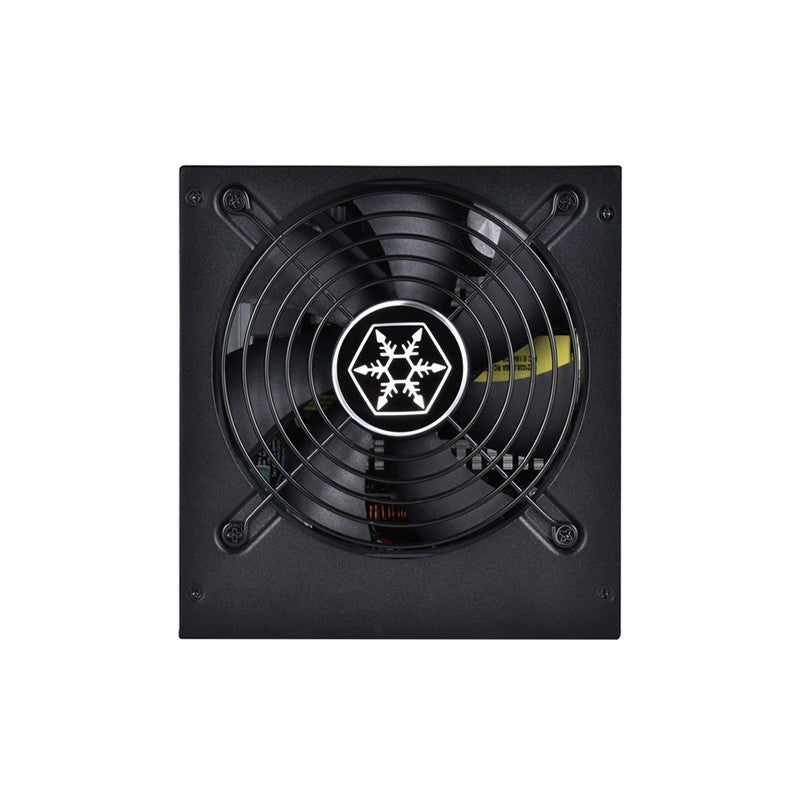

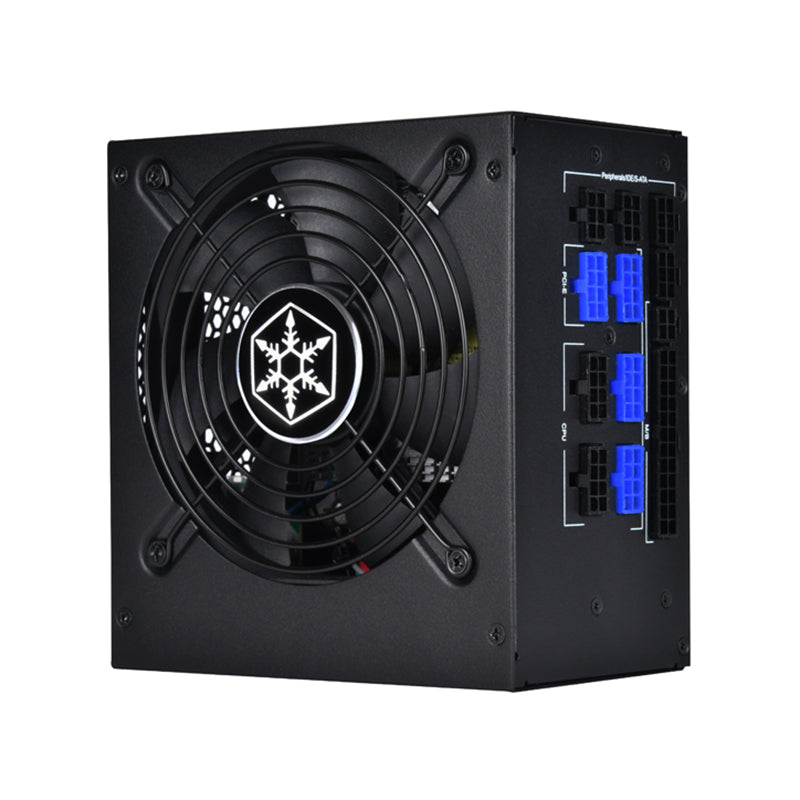

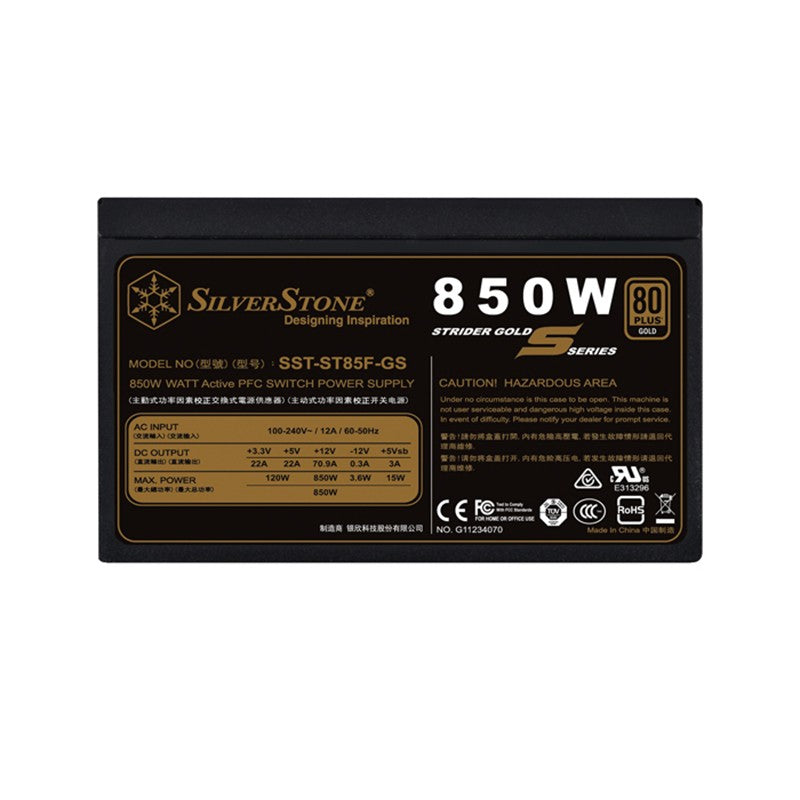

SilverStone 850W Strider Gold S 80+ Gold Power Supply (SST-ST85F-GS-V2)
SPECIFICATIONS:
Model No. |
SST-ST85F-GS (V2.0) |
|||||
Max. DC Output |
850W |
|||||
Load Range (V2.0) | ||||||
+3.3V |
+5V |
+12V |
+5VSB |
-12V |
||
Max.(Amps) |
22A |
22A |
70.9A |
2.5A |
0.3A |
|
Min.(Amps) |
0A |
0A |
0A |
0A |
0A |
|
Range (%) |
±2.5% |
±2.5% |
±2.5% |
±5% |
±5% |
|
Line Reg.(%) |
±1% |
±1% |
±1% |
±1% |
±1% |
|
Ripple(mVp-p) |
30mV |
30mV |
30mV |
30mV |
50mV |
|
Power density |
471W per liter |
|||||
Color |
Black (lead-free paint) |
|||||
Combined +3.3V & +5V |
120W |
|||||
Combined +12V |
850W |
|||||
Input Voltage |
90V~264V |
|||||
Input Frequency Range |
47Hz ~ 63Hz |
|||||
PFC |
Active PFC.（PF>0.95 at Full Load） |
|||||
Efficiency |
87%~90% at 20%~100% loading |
|||||
MTBF |
100,000 hours |
|||||
Operating temperature |
0°C ~ 40°C |
|||||
Protection |
Over current protection Over power protection Over voltage protection Over temperature protection Under voltage protection Short circuit protection |
|||||
Connectors |
1 x 24 / 20-Pin motherboard connector（600mm） 1 x 8 / 4-Pin EPS / ATX 12V connector（750mm） 1 x 8 / 4-Pin EPS / ATX 12V connector（550mm） 4 x 8/6-Pin PCIE connector（”550mm/150mm” x 2） 2 x 8/6-Pin PCIE connector (550mm x 2) 8 x SATA connector（"600mm /150mm / 150mm / 150mm" x 2） 6 x 4-Pin Peripheral connector（”600mm / 150mm / 150mm” x 2） 2 x 4-Pin Floppy connector（100mm x 2） |
|||||
Cooling System |
Single 120mm silent fan |
|||||
Form factor |
||||||
Noise Level |
18 dBA minimum |
|||||
Dimension |
150 mm (W) x 86 mm (H) x 140 mm (D) |
|||||
5.91" (W) x 3.39" (H) x 5.51" (D) | ||||||
Weight |
1.55 kg |
|||||
Certification |
80 PLUS Gold |
|||||
Compatible with ATX12V v2.4 |
||||||
