Description

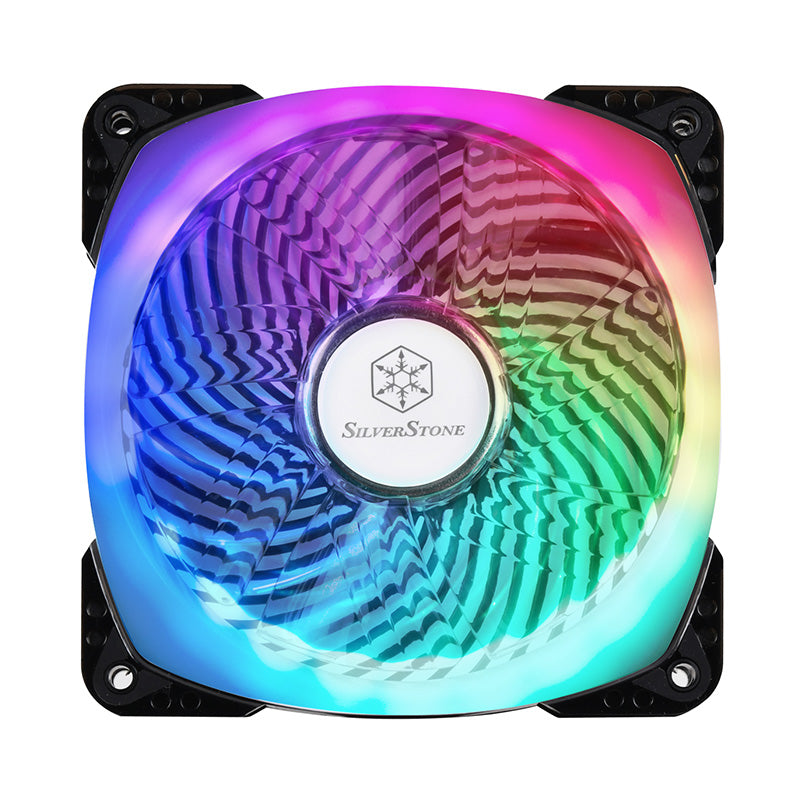

SilverStone AP142 140mm Addressable RGB PWM Fan
Displays any color combination by use of an Addressable RGB LED control box or capable motherboard via 5V, D, NP ,G signal source
Enhanced airflow focus and brilliant visuals with SilverStone’s unique Air Penetrator frame design
Coating with light diffusing material improves light uniformity
Double ball bearings for longer life and durability
Class-leading 24 LEDs for increased brightness
SPECIFICATIONS:
Colour |
Transparent fan blades, black frame |
Bearing |
Dual Ball Bearing |
Connectors |
4pin PWM for fan + 3pin WS2812 RGB |
Rated Voltage |
12V DC |
Starting Voltage |
9.6V |
Rated Current |
0.11A |
Rated Power |
3.84W |
Speed |
500 ~ 1500 rpm |
Airflow |
13.62 ~ 44.2 CFM |
Effective Airflow Range |
1 Meter |
Static Pressure |
0.16 ~ 1.65 mmH2O |
Noise Level |
18.48 ~ 23.33 dBA |
RGB LEDs |
24 PCS |
Dimension |
140mm (L) x 140mm (W) x 25mm (H) |
Note |
Please check to make sure the control box and motherboard RGB port that you want to connect are the same as AP142-ARGB’s RGB port definition. Incorrect connection may cause malfunction or damage |
