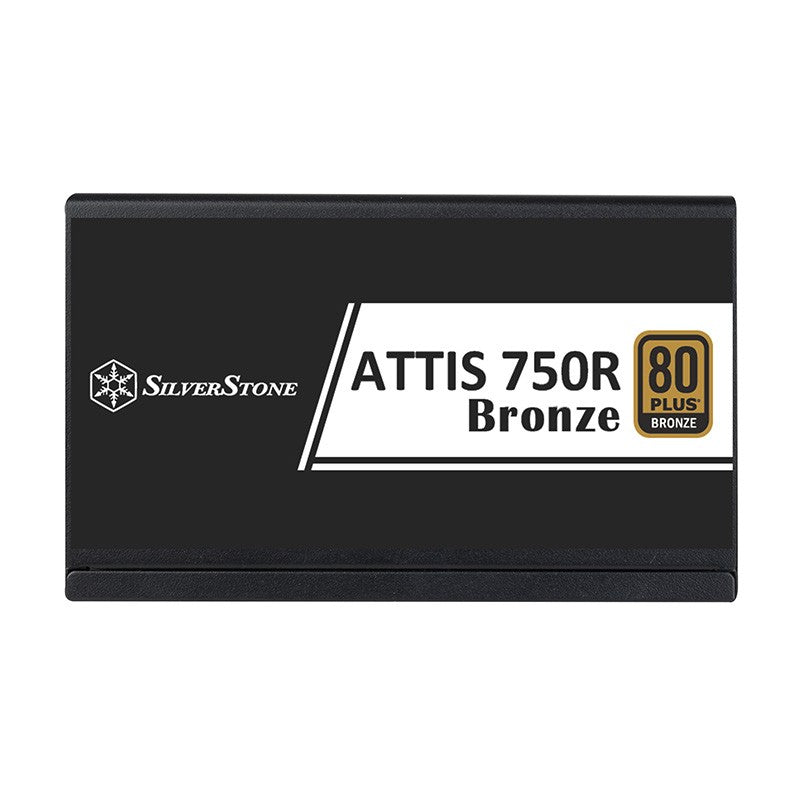

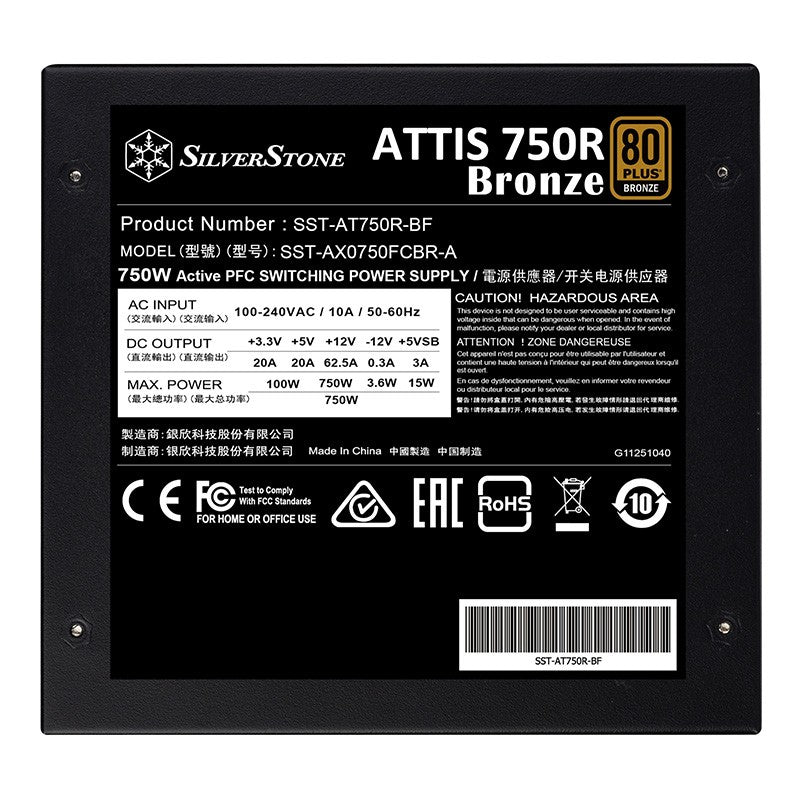

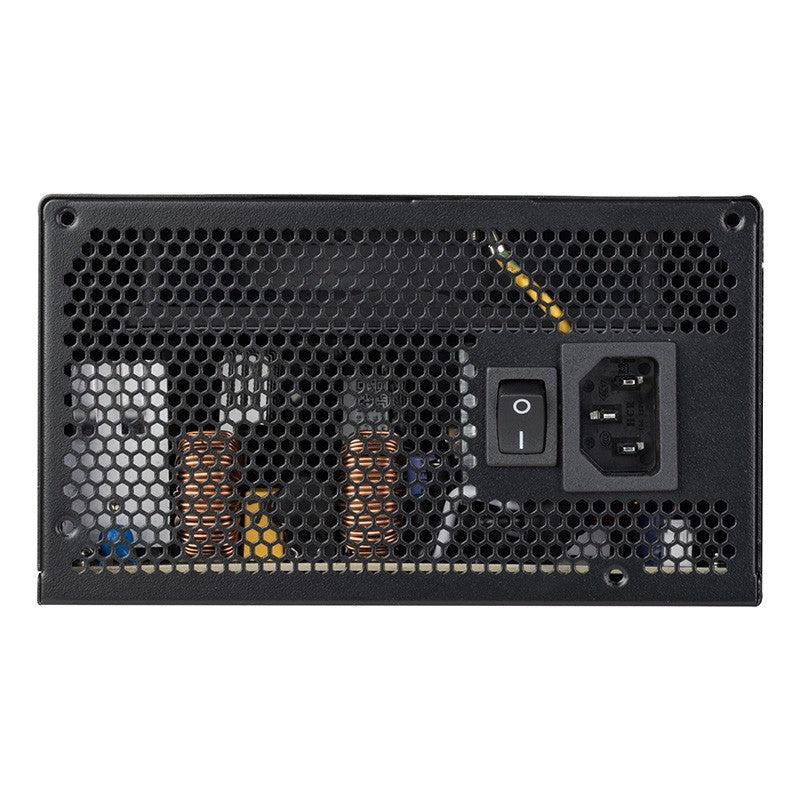

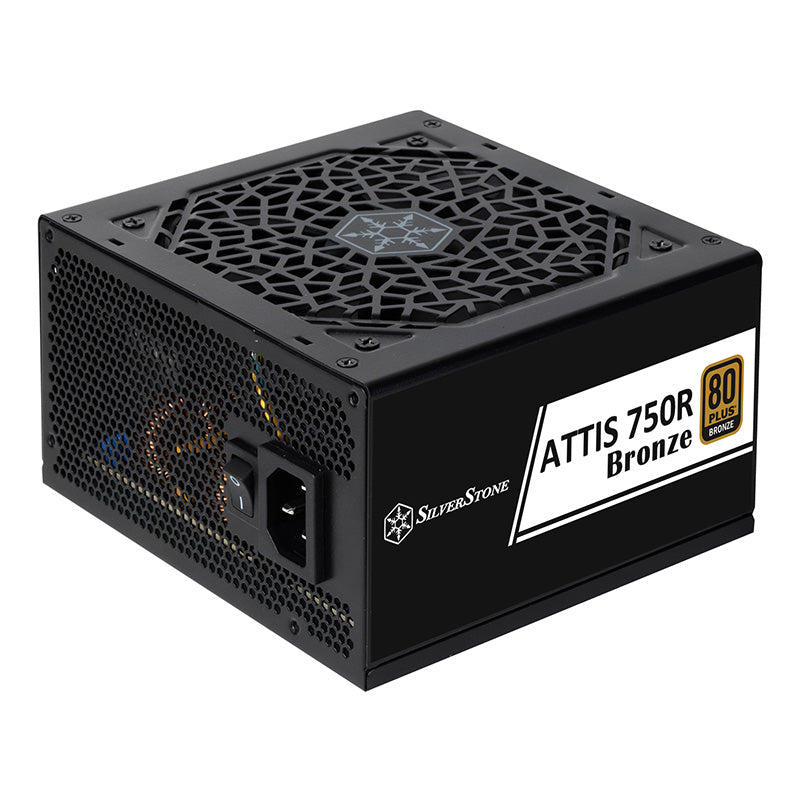

SilverStone ATTIS 750R 750W 80+ Bronze ATX 3.1 Power Supply

Color

Black (lead-free paint)

Max. DC Output

750W

Combined +3.3V & +5V

100W

Combined +12V

750W

Input Voltage

90 ~ 264 Vrms

Input Frequency Range

47Hz ~ 63Hz

PFC

Active PFC (PF>0.9 at full load)

Efficiency

82% ~ 85% (at 20% ~ 100% loading)

MTBF

100,000 hours

Operating temperature

0°C ~ 50°C

Protection

Over Power Protection

Over Voltage Protection

Short Circuit Protection

Under Voltage Protection

Connectors

1 x 24 / 20-Pin motherboard connector

2 x 4-Pin + 4-Pin ATX 12V connector

4 x 8 / 6-Pin PCIe connector

6 x SATA connectors

3 x 4-Pin Peripheral connector

Cooling System

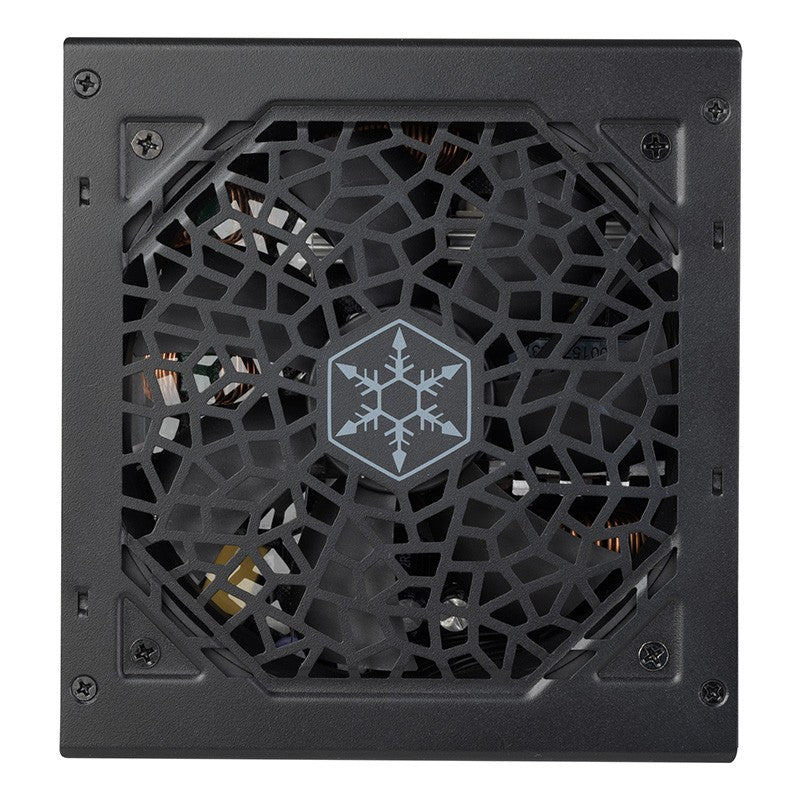

Silent 120mm fan

Noise Level

18 dBA minimum

Certification

80 PLUS Bronze

Form factor

ATX (PS2)

Dimension

150mm (W) × 86mm (H) × 140mm (D)

Weight

1.54 kg
