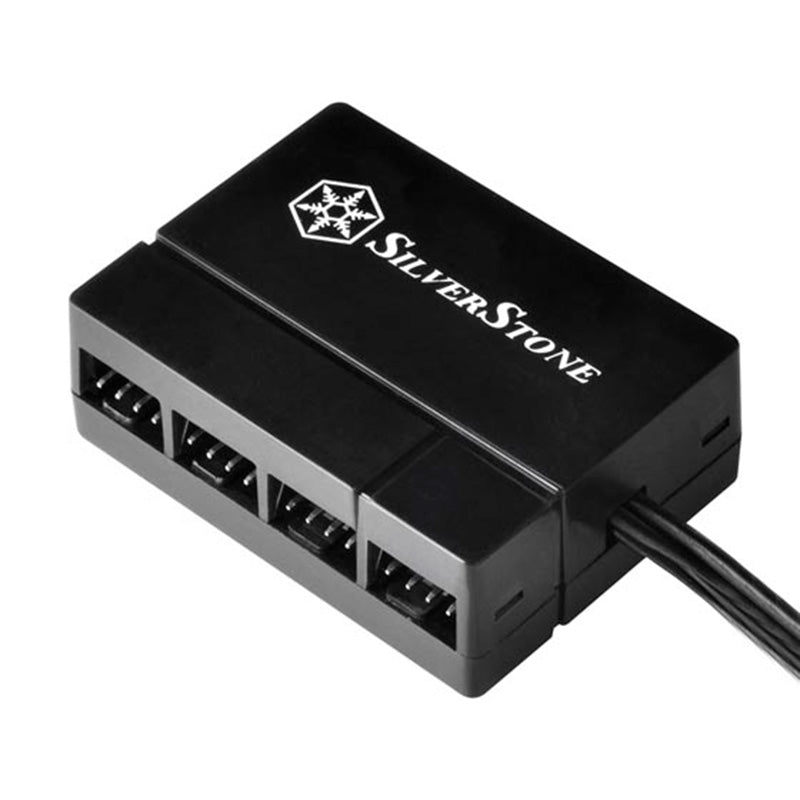

Silverstone CPF04 1-to-8 PWM Fan Hub

Connectors

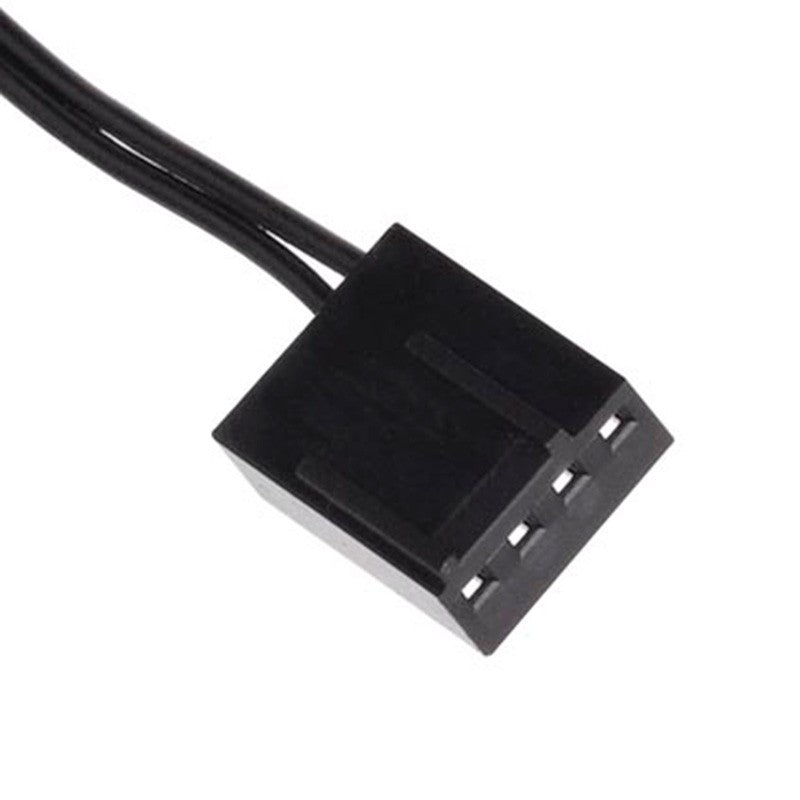

PWM 4pin connector x 1 to motherboard

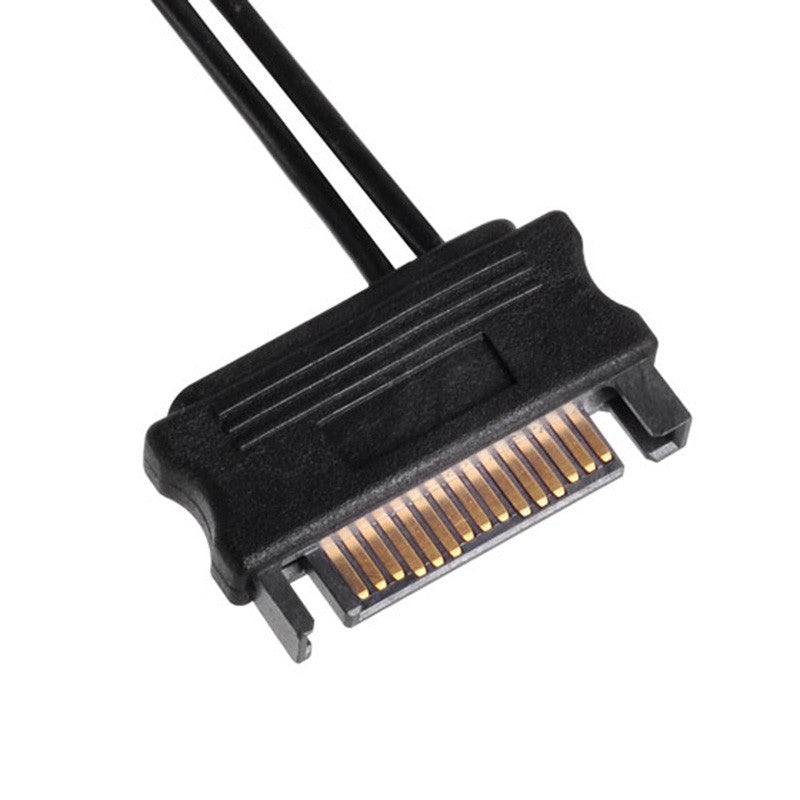

SATA power cable x 1 to PSU

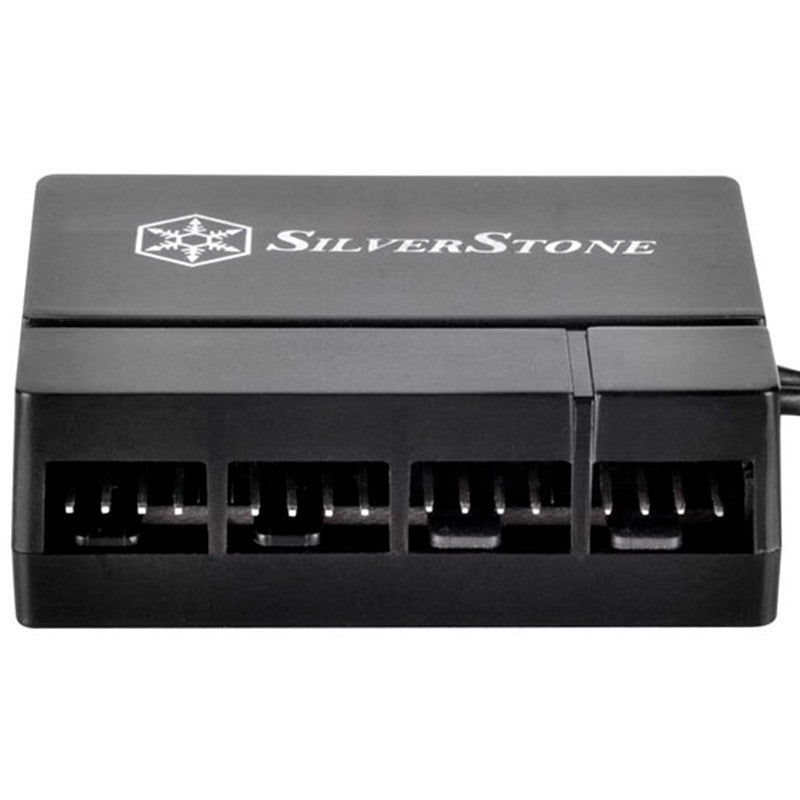

PWM 4pin header x 8, compatible with 3pin cable*

Capacitor size

2200μF

Output

Up to 4.5A for single port, total 4.5A for all ports combined

Dimension

54mm (W) x 19mm (H) x 40mm (D)

PWM cable 500mm, SATA power cable 300mm

Note

* Only header on glossy side support speed detection.

* Fan will not start unless SATA power cable is connected. Speed detection and PWM speed control are functional only when motherboard is connected.

* Speed control function is unavailable for 3 pin fans.
