SPECIFICATIONS:
APPLICATION |
|
Intel Socket |
LGA115x/1200/1700/2011/2066 |
AMD Socket |
AM2/AM3/AM4/AM5/FM1/FM2 |
WATER BLOCK |
|
Dimension |
61mm (L) x 61mm (W) x 50mm (H) |
Material |
Copper base with plastic body |
PUMP |
|
Motor speed |
3400±10% RPM |
Rated Voltage |
12V |
Rated Current |
0.39A |
Connectors |
-- |

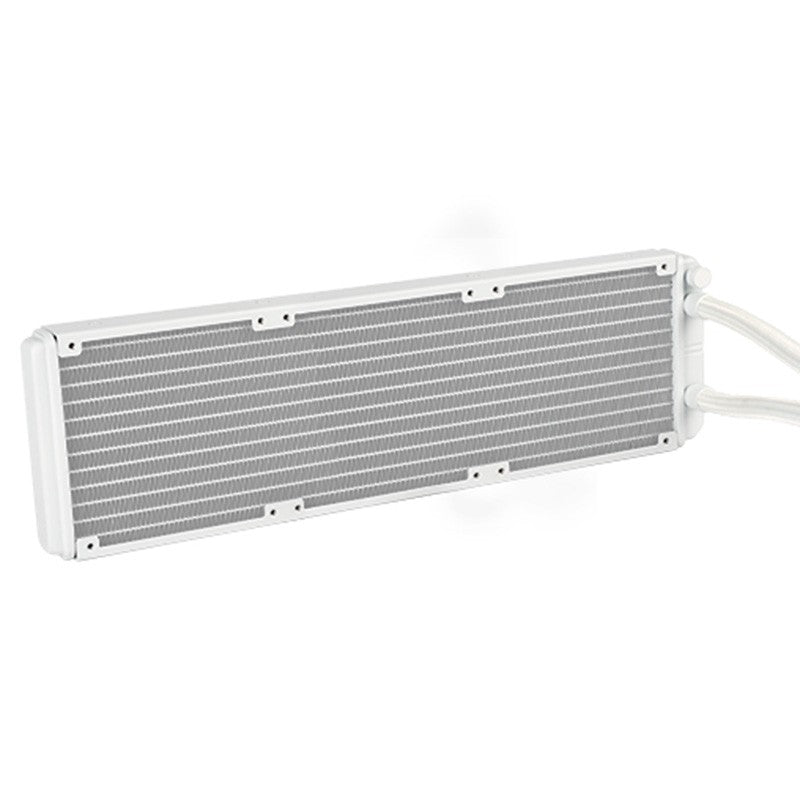

RADIATOR |
|
Dimension |
394mm (L) x 120mm (W) x 28mm (H) |
Material |
Aluminum |
TUBE |
|
Length |
400mm |
Material |
Rubber |
FAN |
|
Dimension |
120mm (L) x 120mm (W) x 25mm (D) |
Speed |
600~2200RPM |
Noise level |
7.4~35.6 dBA |
Rated Voltage |
12V |
Rated Current |
0.32A |
Max airflow |
94CFM |
Max air pressure |
3.53mm/H2O |
Connector |
4 Pin PWM & 4-1 Pin ARGB (5V LED) |
Bearing |
-- |
Start Voltage |
-- |
MTTF |
-- |
