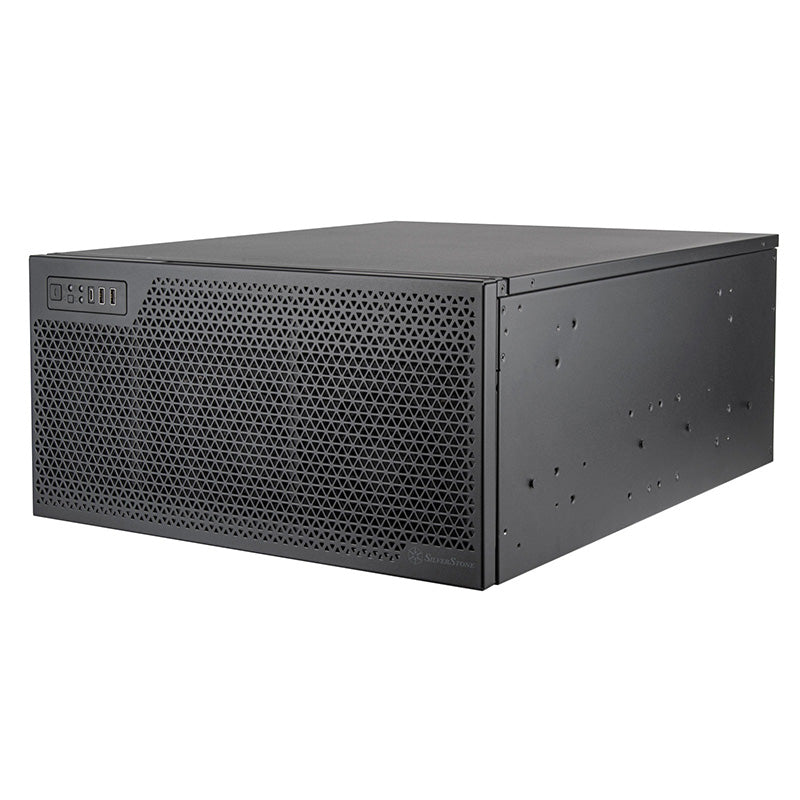

Silverstone RM52 5U Rackmount Server Chasis

Material

Steel

Motherboard

SSI-EEB, SSI-CEB, Extended ATX, ATX, Micro-ATX, Mini-ITX

Drive bay

Internal

3.5" x 2 (compatible with 2.5" x 3) + 3.5" x 2 (compatible with SFX PSU)

Cooling system

Front

Rear

120mm x 6

Rear I/O:

120mm x 1 / 140mm x 1 (1 x 140mm fan included)

Rear fan cage:

80mm x 2 (2 x 80mm fans included)

Radiator support

Front

Rear

120mm x 4 / 360mm x 2

120mm x 1

Limitation of CPU cooler

Height w/ expansion card retainer: 181mm

Height w/o expansion card retainer: 192mm

Expansion slot

8

Limitation of expansion card

Length: 512mm (without installing front fans, radiators, and internal radiator bracket removed) / 365mm (dual radiators installed with each radiator with fans having a combined thickness of 53mm) *

Width w/ expansion card retainer: 160mm

Width w/o expansion card retainer: 198mm

Power supply

Primary PSU slot: PS2 (ATX) / Mini Redundant

Secondary PSU slot: SFX (occupies 3.5" bracket)

Limitation of PSU

160mm~190mm

(Removal of 3.5" drive cage eliminates PSU depth limitation)

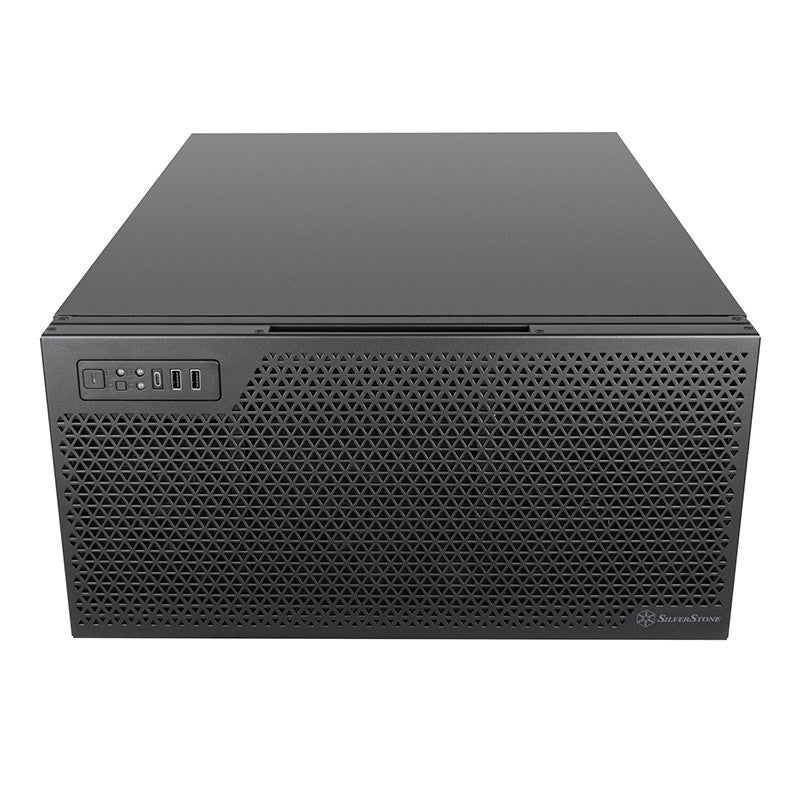

Front I/O port

USB Type-C x 1

USB 3.0 x 2

LED Indicators

Power status x 1

HDD activity x 1

LAN activity x 2

Dimension

Incl. rear fan cage: 440mm (W) x 220mm (H) x 605mm (D), 58.56 liters

Excl. rear fan cage: 440mm (W) x 220mm (H) x 560mm (D), 54.21 liters

Incl. rear fan cage: 17.3" (W), 8.66" (H), 23.82" (D)

Excl. rear fan cage: 17.3" (W), 8.66" (H), 22.05" (D)

Net weight

11.45 kg

Extra

Side switch for chassis intrusion security

Note

*When installing dual 360mm radiators, please refer to the product manual for the graphics card length limitation
