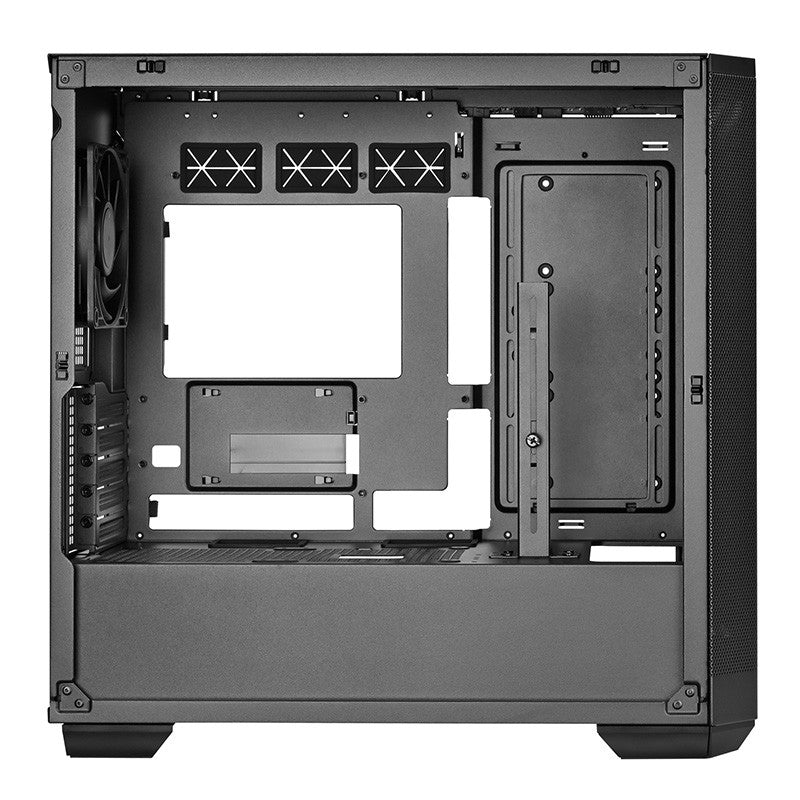

SilverStone SETA H2 M-ATX Case No PSU

Motherboard

Micro-ATX, Mini-ITX

Drive bay

Internal :

3.5" x 2 / 2.5" x 3

3.5" x 2 (compatible with 2.5" x 4) *

2.5" x 1 *

* If the drive cage beneath the PSU shroud is left vacant, it allows for the installation of a secondary SFX PSU.

* This mount may interfere with or obstruct cables on rear-connector motherboards. Please ensure accurate measurements before installation.

Cooling system

Front: 120mm x 3 / 140mm x 2 / 160mm x 2 (160mm x 2 black fans included)

Rear: 120mm x 1 (120mm x 1 black fan included)

Top: 120mm x 3 / 140mm x 2 / 160mm x 2

Side: 120mm x 2

Radiator support

Front: 120mm / 140mm / 240mm / 280mm / 360mm *

Rear: 120mm

Top: 120mm / 140mm / 240mm / 280mm / 360mm *

Side: 120mm / 240mm *

* A single 360mm radiator is supported, as the top and front sides are not designed to hold a 360mm radiator simultaneously.

* Installing a side radiator with fans restricts the expansion card length to 250mm.

Limitation of CPU cooler

164.6mm (without GPU holder installed)

Expansion slot

5

Limitation of expansion card

Length 350mm (with front 25mm thickness fans installed) *

* Installing a side radiator with fans restricts the expansion card length to 250mm.

Power supply

Primary Standard PS2 (ATX)

Secondary SFX *

* If the drive cage beneath the PSU shroud is left vacant, it allows for the installation of a secondary SFX PSU.

Limitation of PSU

Primary 170mm

Front I/O port

USB Type-C x 1

USB 3.0 x 2

Combo Audio x 1

Dimension

231.7mm (W), x 447.5mm (H), x 451.2mm (D), 46.78 liters

Net weight

6.9 kg
