Description
SPECIFICATIONS:
HDMI version support |
HDMI 1.4, HDMI 2.0 |
HDCP version support |
HDCP1.4, HDCP 2.0 |

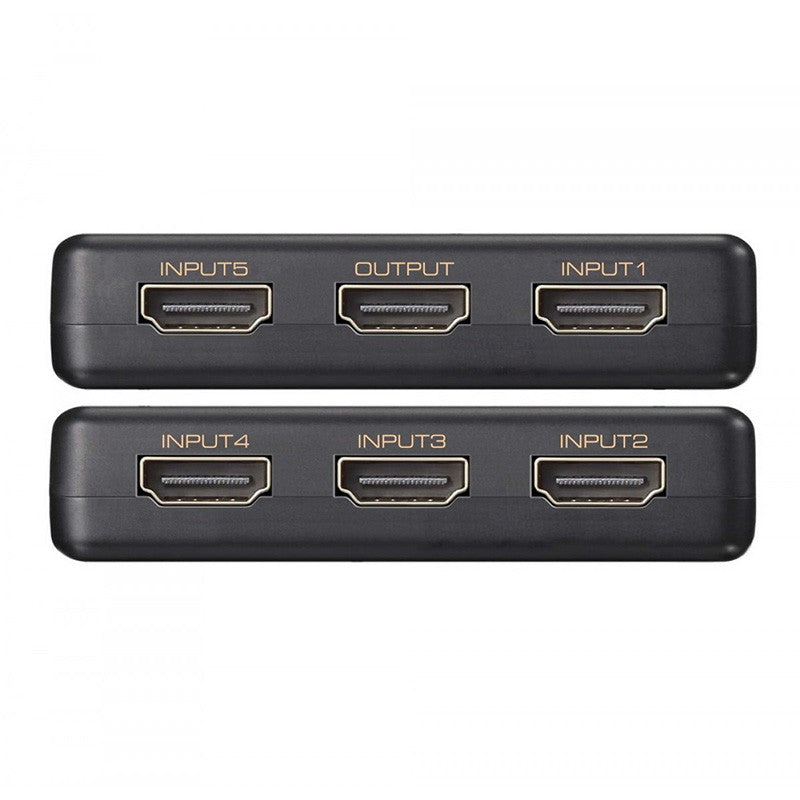

HDMI Input Ports |
5 |
Video Amplifier Bandwidth |
18Gbps |
Support Video Format |
4K (3840X2160) @ 60Hz / 1080p / 1080i / 720p / 576p / 480p / 576i / 480i / 3D Video |
Support Video Color |
12 bit Deep Color Per Channel |
HDR support |
HDR10 |
Support Audio Format |
DTS-HD, Dolby-TrueHD, PCM, LPCM |
Power Input |
MicroUSB 5V (No external power required for standard HDMI devices) |
Operating Temperature |
0°C to 70°C |
Operating Humidity |
10% to 85% RH(no condensation) |
Dimension |
82x58x19(mm) |
Package Contents |

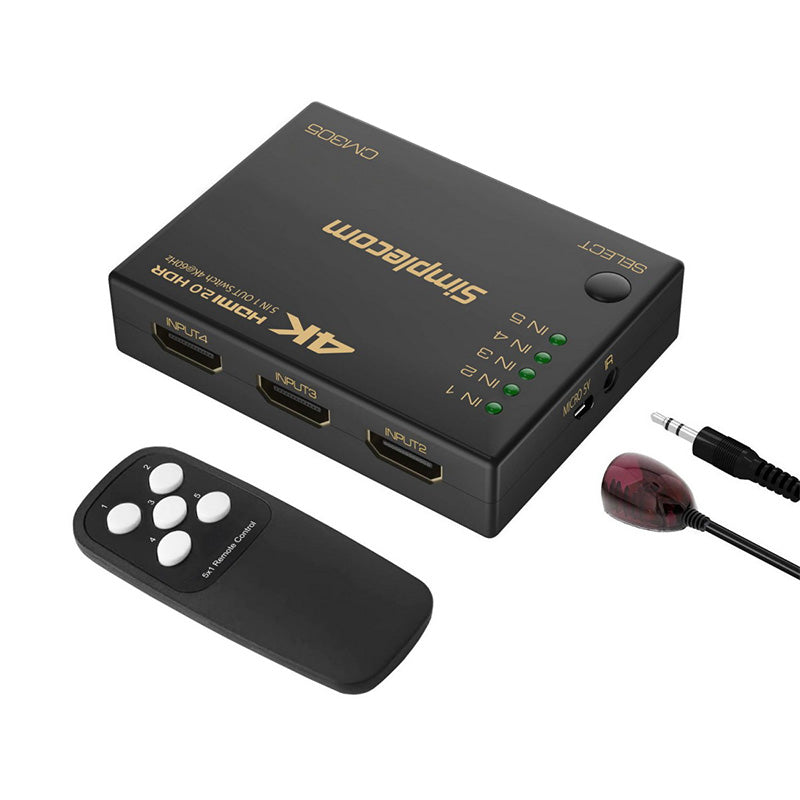

1x 5 Way HDMI Switch 1x Remote Control 1x IR Receiver 1x USB Power cable 1x HDMI Cable 0.5M |
Notes |
*For 4K@60Hz signal, 18Gbps HDMI cable is required, input and output cable length are limited to 2M Apple TV and some online streaming box keeps its HDMI port active even in the sleep state. Hence, auto-switching may not work with them. Manual switching can still be used in this scenario. Devices that require HDCP 2.2 or higher may be incompatible |
