Description
SPECIFICATIONS:
Features |

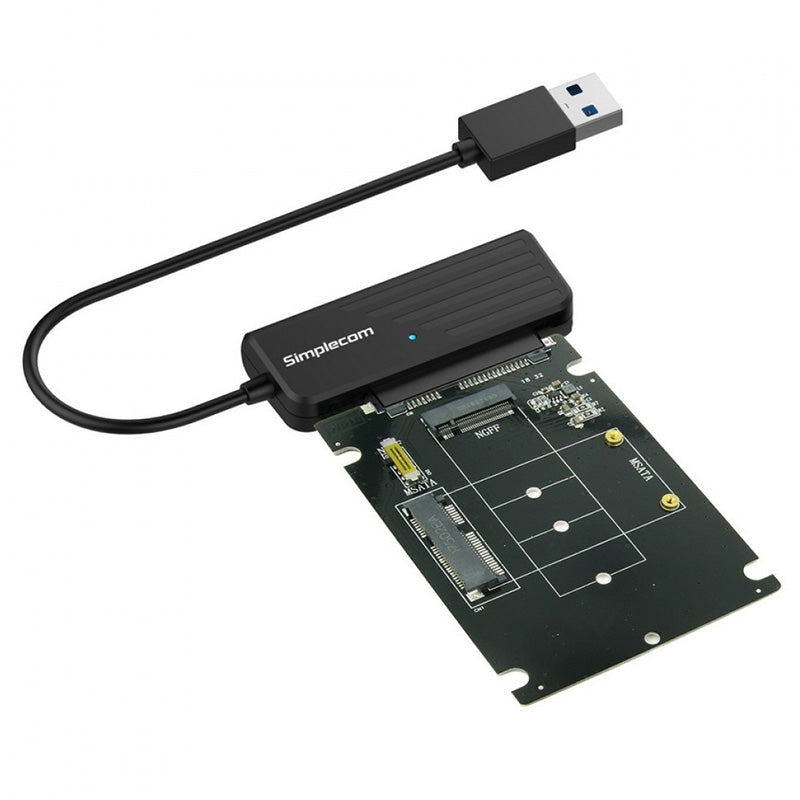

mSATA + M.2 SSD 2 in 1 Combo Adapter Convert a mSATA or M.2 SSD to USB 3.0 On board mSATA and M.2 Switch Detachable USB 3.0 cable USB 3.0 (USB3.1 Gen 1) interface up to 5Gbps data transfer rate Plug and play, no drivers required Compatible with Windows 7 and above, Mac OS 10.6 and above |
Circuit board Size |
97x65x5mm |
Support following form factor M.2(NGFF) SSD |
Type 2230-D2-B-M: 30mm(L) x 22mm(W) Type 2242-D2-B-M: 42mm(L) x 22mm(W) Type 2260-D2-B-M: 60mm(L) x 22mm(W) Type 2280-D2-B-M: 80mm(L) x 22mm(W) |
Support following form factor mSATA SSD |
Full size mSATA : 50.95mm(L) x 30mm(W) |
Package Contents |
1x mSATA + M.2 SSD 2 in 1 Combo Adapter 1x USB 3.0 Cable 1x Screw Driver Screws with Washer |
Notes |
*NOT Designed for NVMe PCIe M.2 SSD, will not fit M Key Only SSD Module. Compatible with SATA protocol based mSATA and M.2 (B Key Only or B+M key) SSD only. |
