Description
Product Name: Startech 1 Port PCIe Gigabit Network Server Adapter NIC Card + LP
|
Model Number: ST1000SPEX2
|
Brand: STARTECH
|
Manufacturer Warranty: 2 Year- |

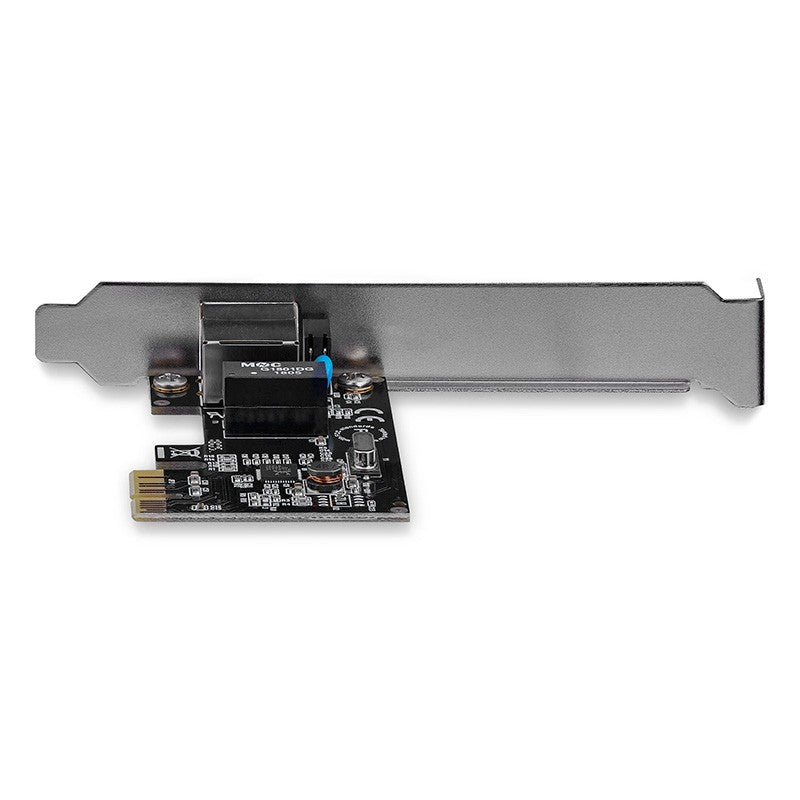

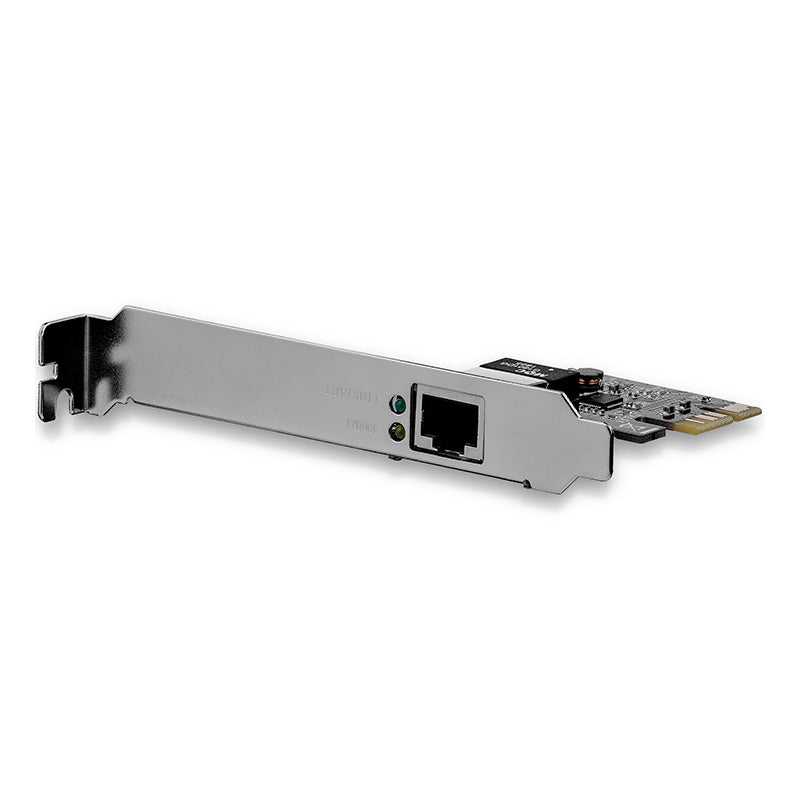

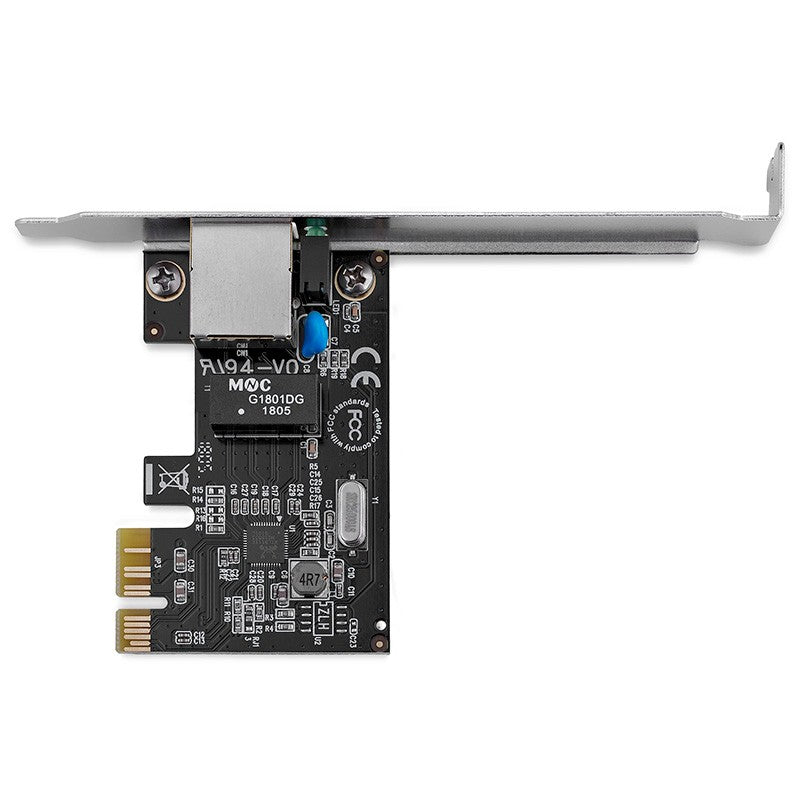

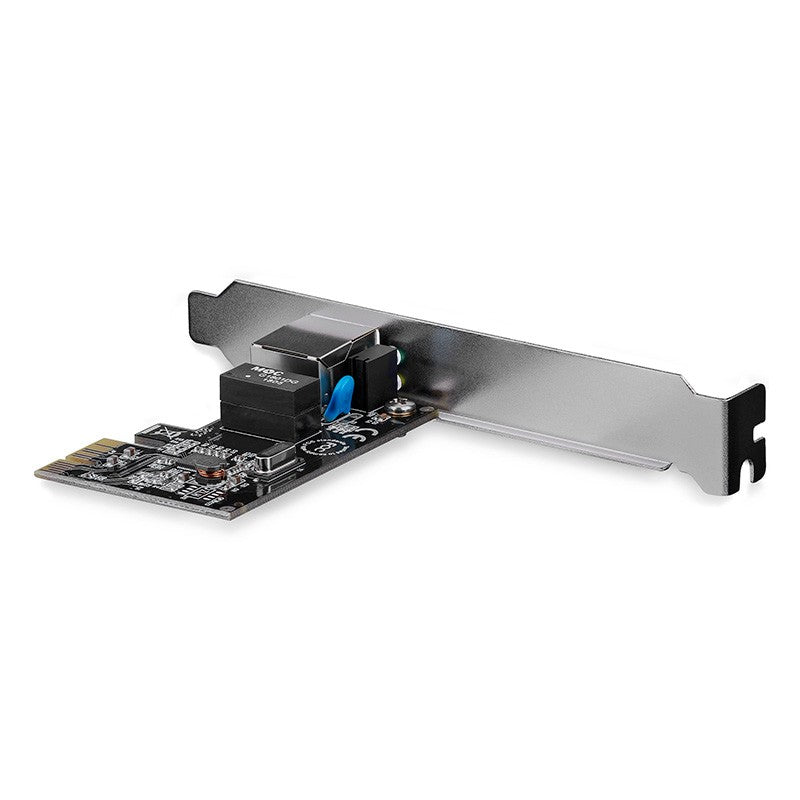

Startech 1 Port PCIe Gigabit Network Server Adapter NIC Card + LP
The ST1000SPEX2 PCIe Gigabit Ethernet Network Card adds a 10/100/1000 Mbps compatible RJ45 Ethernet port to a PCI Express-enabled client, server or workstation, providing a convenient addition or replacement networking interface.
Compliant with IEEE 802.3/u/ab standards, and with support for 9K Jumbo Frames, VLAN tagging and Wake on LAN (WOL), this versatile Gigabit NIC/Server Adapter delivers rock-solid performance.
Plus, the card includes both full profile and low profile/half-height installation brackets for installation in a wide range of computer/server chassis, regardless of form factor.
SPECIFICATIONS:
Connector Type(s) |
1 - PCI Express x1 |
External Ports |
1 - RJ-45 |
Operating Temperature |
0°C to 70°C (32°F to 158°F) |
Storage Temperature |
0°C to 100°C (32°F to 212°F) |
Humidity |
10% ~ 90% RH |
Ports |
1 |
Interface |
RJ45 (Gigabit Ethernet) |
Bus Type |
PCI Express |
Card Type |
Standard Profile (LP bracket incl.) |
Industry Standards |
IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab |
Chipset ID |
Realtek - RTL8111 |
LED Indicators |
1 - Gigabit Detect (Yellow) 1 - Link/Activity (Green) |
Package Height |
1.2 in [3.0 cm] |
Package Length |
5.6 in [14.3 cm] |
Shipping (Package) Weight |
3.3 oz [94.0 g] |
Package Width |
5.5 in [14.0 cm] |
Package Quantity |
1 |
Maximum Data Transfer Rate |
1000 Mbps |
Compatible Networks |
10/100/1000 Mbps |
Auto MDIX |
Yes |
Full Duplex Support |
Yes |
Jumbo Frame Support |
9K max. |
Promiscuous Mode |
Yes |
MTBF |
376,212 Hours |
Supported Protocols |
CSMA/CD |
Weight of Product |
1.3 oz [38.0 g] |
Colour |
Black |
Material |
Steel |
Product Length |
2.7 in [6.8 cm] |
Product Width |
4.7 in [12.0 cm] |
Product Height |
0.7 in [1.8 cm] |
Input Voltage |
12V DC |
Output Voltage |
12V DC |
OS Compatibility |
Windows® 2000, XP, Vista, 7, 8, 8.1, 10, 11 Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016, 2019 Mac OS X® 10.6 to 10.9 Linux 2.4.x and up - LTS Versions only |
System and Cable Requirements |
Available PCI Express expansion card slot |
Included in Package |
1 - Gigabit Ethernet PCI Express Card 1 - Low Profile Bracket 1 - Instruction Manual |
