Description
SPECIFICATIONS:

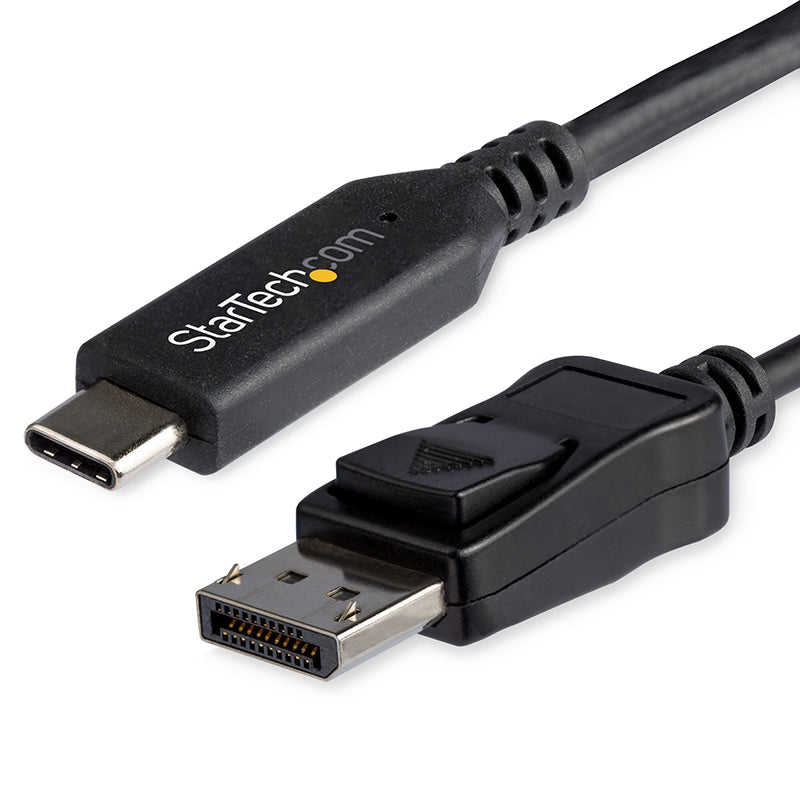

Connector(s) |
|
1 - Connector A |
USB-C (24 pin) DisplayPort Alt Mode |
1 - Connector B |
DisplayPort (20 pin) |
Environmental |
|
Operating Temperature |
5°C to 35°C (41°F to 95°F) |
Storage Temperature |
-20°C to 60°C (-4°F to 140°F) |
Humidity |
80%-90%RH |
Hardware |
|
Active or Passive Adapter |
Active |
AV Input |
USB-C |
Ports |
1 |
AV Output |
DisplayPort - 1.4 |
Chipset ID |
STM32F072CBY6TR |

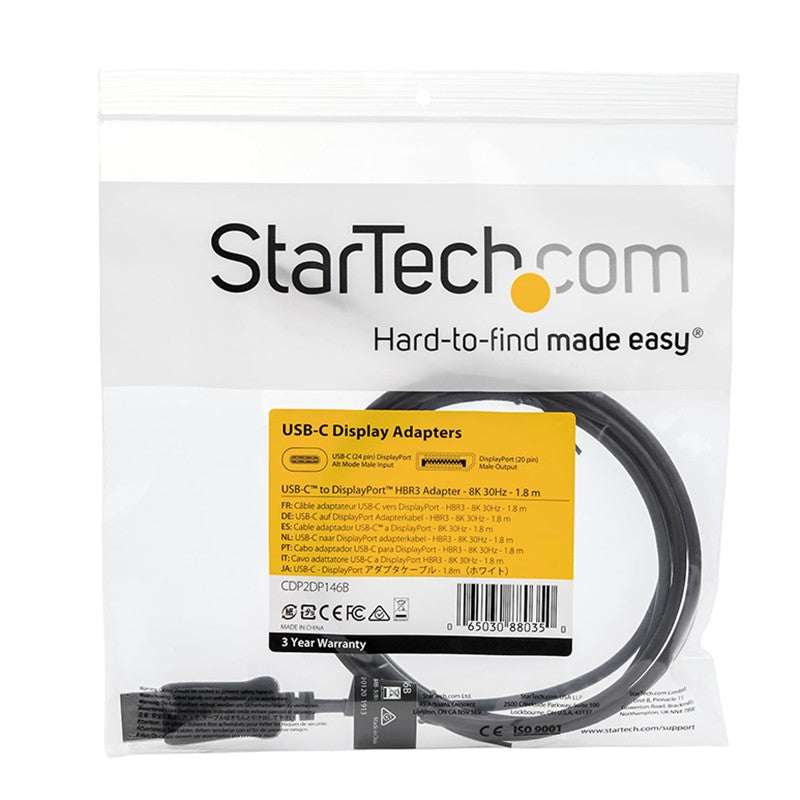

Packaging Information |
|
Package Height |
0.7 in [17.0 mm] |
Package Length |
7.9 in [20.0 cm] |
Shipping (Package) Weight |
2.4 oz [67.0 g] |
Package Width |
8.7 in [22.0 cm] |
Performance |
|
Audio Specifications |
DisplayPort - 7.1 Channel Audio |
Video Revision |
DisplayPort 1.4 |
Supported Resolutions |
DisplayPort: 7680x4320 (8K) / 60Hz |
Wide Screen Supported |
Yes |
Bandwidth |
HBR3 |
Physical Characteristics |
|
Colour |
Black |
Product Height |
0.4 in [11.0 mm] |
Product Length |
6.0 ft [1.8 m] |
Weight of Product |
2.0 oz [57.0 g] |
Product Width |
7.9 in [20.0 cm] |
System and Cable Requirements |
Your USB-C port must support DisplayPort over USB-C (DP Alt mode) in order to work with this adapter. To achieve 8K resolutions, your source and your destination must support DisplayPort 1.4. |
