Description
SPECIFICATIONS:

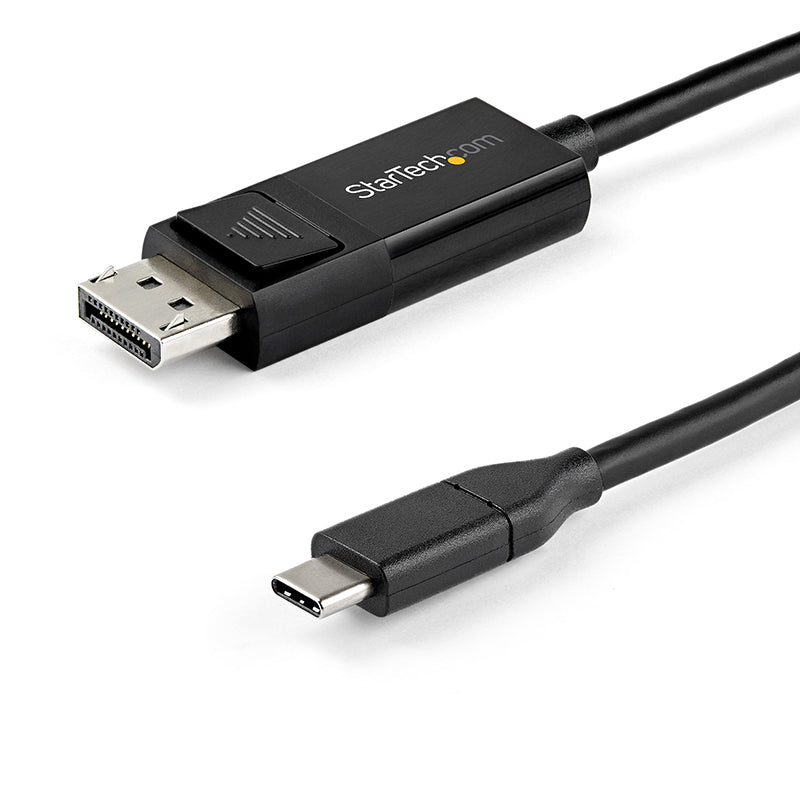

Connector(s) |
||
1 - Connector A |
USB-C (24 pin) DisplayPort Alt Mode |
|
1 - Connector B |
DisplayPort (20 pin) |
|
1 - Connector A |
Thunderbolt™ 3 USB-C (24-pin) (40Gbps) |
|
Environmental |
||
Operating Temperature |
0°C to 45°C (32°F to 113°F) |
|
Storage Temperature |
-10°C to 70°C (14°F to 158°F) |
|
Humidity |
10%-85% RH |
|
Hardware |
||
Active or Passive Adapter |
Active |
|
AV Input |
USB-C |
|
AV Output |
DisplayPort |
|
AV Input |
DisplayPort - 1.4 |
|
AV Output |
USB-C |
|
Audio |
Yes |
|
Chipset ID |
Chrontel - CH7213C-BF Texas Instruments - TUSB544 VIA Labs - VL170 |
|

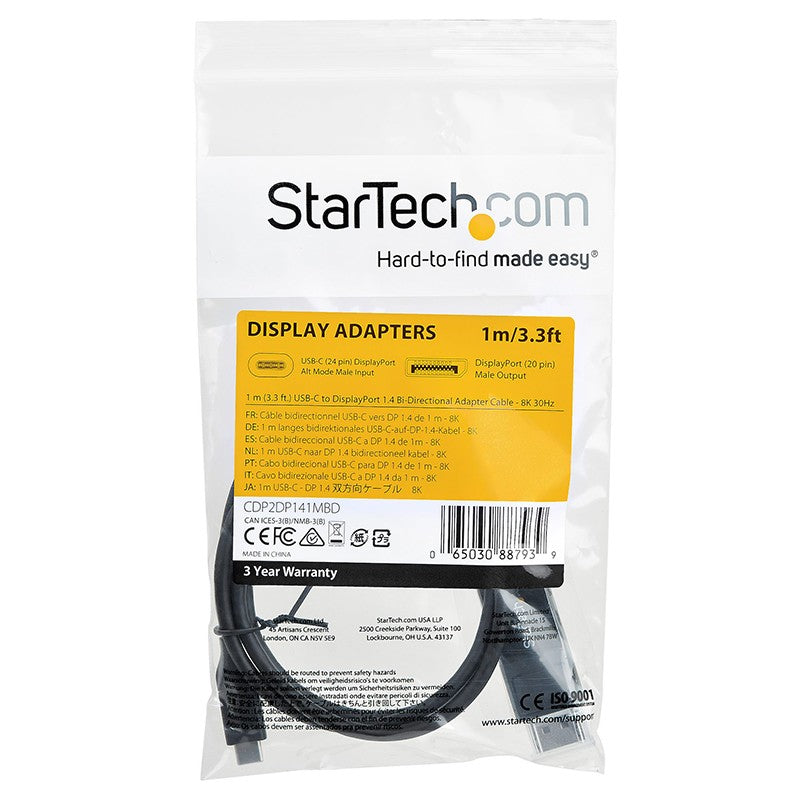

Packaging Information |
||
Package Height |
0.6 in [15 mm] |
|
Package Length |
4.9 in [12.5 cm] |
|
Shipping (Package) Weight |
1.8 oz [50 g] |
|
Package Width |
8.9 in [22.5 cm] |
|
Performance |
||
Video Revision |
DisplayPort 1.4 |
|
Maximum Digital Resolutions |
DisplayPort: 7680x4320 (8K) / 60Hz |
|
Wide Screen Supported |
Yes |
|
Bandwidth |
HBR3 |
|
Audio Specifications |
DisplayPort - 7.1 Channel Audio |
|
Physical Characteristics |
||
Colour |
Black |
|
Product Height |
0.4 in [10 mm] |
|
Product Length |
38.2 in [97.0 cm] |
|
Weight of Product |
1.6 oz [46 g] |
|
Product Width |
0.9 in [22 mm] |
|
Material |
Plastic |
|
Special Notes / Requirements |
||
System and Cable Requirements |
Your USB-C device must support DisplayPort Alt Mode to work with this cable To achieve 8K resolutions, your source and your destination must support DisplayPort 1.4 |
|
