Description
SPECIFICATIONS:
Connector(s) |
||
1 - Connector Type(s) |
PCI Express x4 |
|
1 - Internal Ports |
SATA Power (15 pin) |
|
1 - External Ports |
USB Type-C (24 pin) USB 3.1 (10Gbps) USB 3.1 USB Type-A (9 pin, Gen 2, 10 Gbps) |
|
Environmental |
||
Operating Temperature |
5°C to 50°C (41°F to 122°F) |
|
Storage Temperature |
-20°C to 85°C (-4°F to 185°F) |
|
Humidity |
20~80% RH |
|
Hardware |
||
Ports |
2 |
|
Interface |
PCI Express x4 |
|
Bus Type |
PCI Express |
|
Card Type |

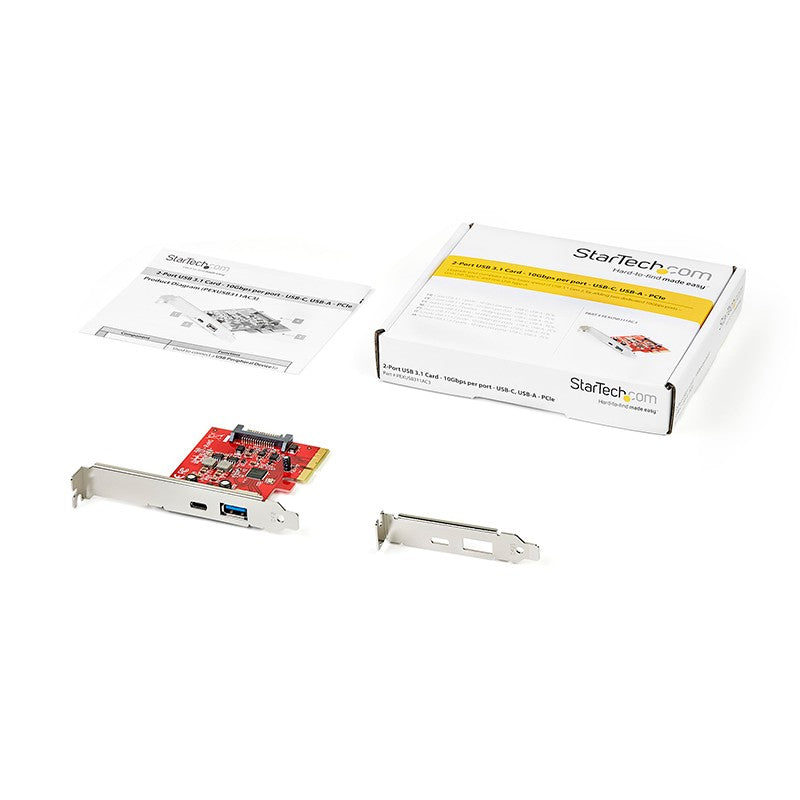

Standard Profile (LP bracket incl.) |
|
Industry Standards |
USB 3.2 Specifications PCI Express Base 3.0 Specifications Intel xHCI Specification Rev. 1.1 |
|
Chipset ID |
ASMedia - ASM3142 |
|
Packaging Information |
||
Package Height |
1.2 in [30.0 mm] |
|
Package Length |
5.6 in [14.2 cm] |
|
Shipping (Package) Weight |
4.3 oz [123.0 g] |
|
Package Width |
6.7 in [17.0 cm] |
|
Performance |
||
Maximum Data Transfer Rate |
10Gbps |
|
UASP Support |
Yes |
|
Type and Rate |
USB 3.2 Gen 2 - 10 Gbit/s |
|
MTBF |
2,684,396 Hours |
|
Physical Characteristics |
||
Colour |
Red |
|
Product Height |
0.7 in [19.0 mm] |
|
Product Length |
4.7 in [12.0 cm] |
|
Weight of Product |
1.7 oz [48.0 g] |
|
Product Width |
3.2 in [81.0 mm] |
|
Material |
Steel |
|
OS Compatibility |
Windows® 7, 8, 8.1, 10 Windows Server® 2008 R2, 2012, 2016, 2019 Linux® 3.5 to 4.11.x macOS 11.0, 10.15, 10.14, 10.13 |
|
Microsoft WHQL Certified |
Yes |
|
System and Cable Requirements |
PCI Express enabled computer or server with a PCI Express x4 slot or higher (x8, x16) Optional SATA power connector |
|
Note |
The maximum throughput of this card is limited by the bus interface The card's USB-C port is a standard data throughput port. It does not support DP Alt Mode or USB Power Delivery |
|
