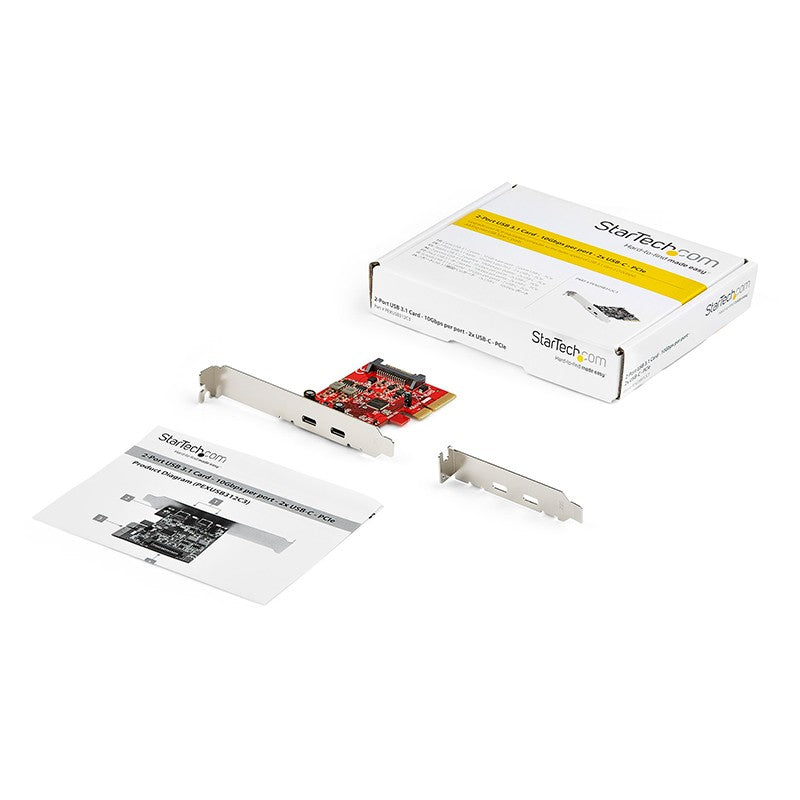

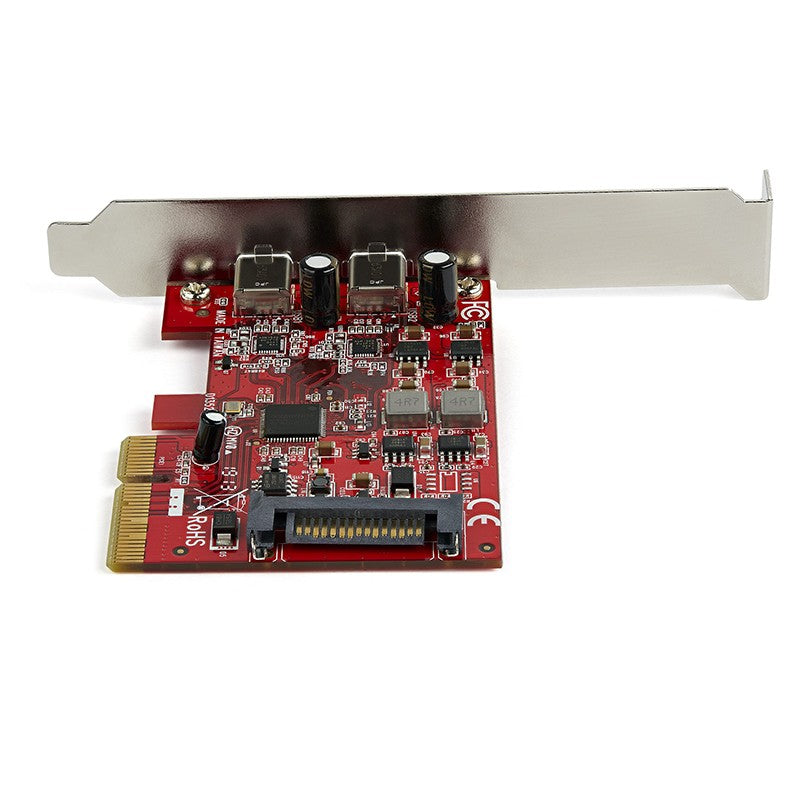

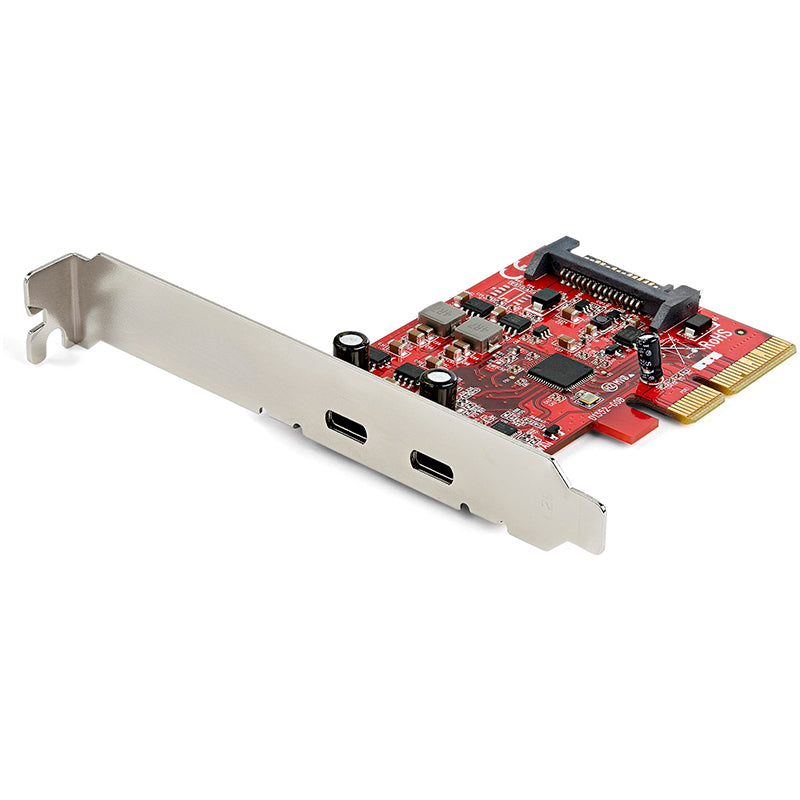

Startech 2-Port 10Gbps USB C PCIe Card

1 - Connector Type(s)

PCI Express x4

1 - Internal Ports

SATA Power (15 pin)

2 - External Ports

USB Type-C (24 pin) USB 3.1 (10Gbps)

Environmental

Operating Temperature

0°C to 70°C (32°F to 158°F)

Storage Temperature

-20°C to 85°C (-4°F to 185°F)

Humidity

20~80% RH

Hardware

Ports

2

Interface

USB 3.1 Gen 2

Bus Type

PCI Express

Card Type

Standard Profile (LP bracket incl.)

Port Style

Integrated on Card

Industry Standards

USB 3.2 Specification Rev. 2.0
  USB Specification Rev. 2.0
  PCI Express Base Specification Rev. 3.0
  Intel xHCI Specification Rev. 1.1
  UASP (USB Attached SCSI Protocol) Rev. 1.0

Chipset ID

ASMedia - ASM3142

Packaging   Information

Package Height

1.2 in [30 mm]

Package Length

6.8 in [17.3 cm]

Shipping (Package) Weight

4.2 oz [120 g]

Package Width

5.6 in [14.2 cm]

Performance

Maximum Data Transfer Rate

10Gbps

Type and Rate

USB 3.2 Gen 2 - 10 Gbit/s

UASP Support

Yes

Physical   Characteristics

Product Height

0.7 in [18.0 mm]

Product Length

4.8 in [12.2 cm]

Weight of Product

1.6 oz [45.0 g]

Product Width

3.1 in [80.0 mm]

Material

Steel

OS Compatibility

Windows® 7, 8, 8.1, 10
  Windows Server® 2008 R2, 2012 R2, 2016, 2019
  Linux® 3.5 to 4.11.x LTS version only
  macOS Catalina (10.15)
  macOS Mojave (10.14)
  macOS High Sierra (10.13) macOS Big Sur (11.0)

System and Cable Requirements

PCI Express enabled computer or server with a PCI Express x4 slot or   higher (x8, x16)

Note

The card's USB-C ports are standard data throughput port. They do not   support DP Alt Mode or USB Power Delivery.

System and Cable Requirements

Optional SATA power connector

Note

The maximum throughput of this card is limited by the bus interface.   PCI Express Gen 1.0 max throughput is 2.5Gbps. PCI Express Gen 2.0 max   throughput is 5Gbps. PCI Express Gen 3.0 max throughput is 10Gbps.
