Description

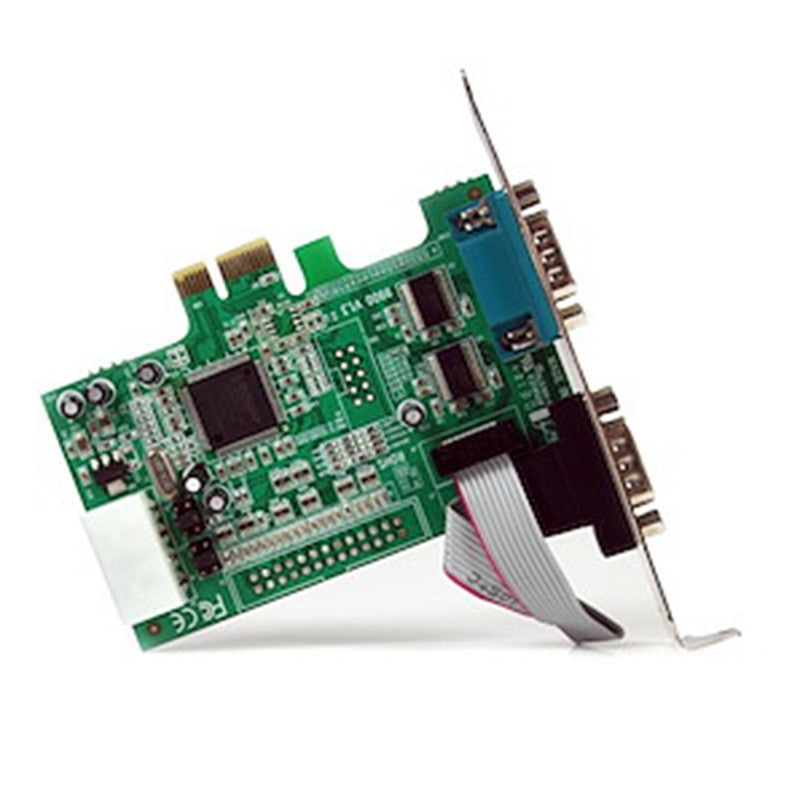

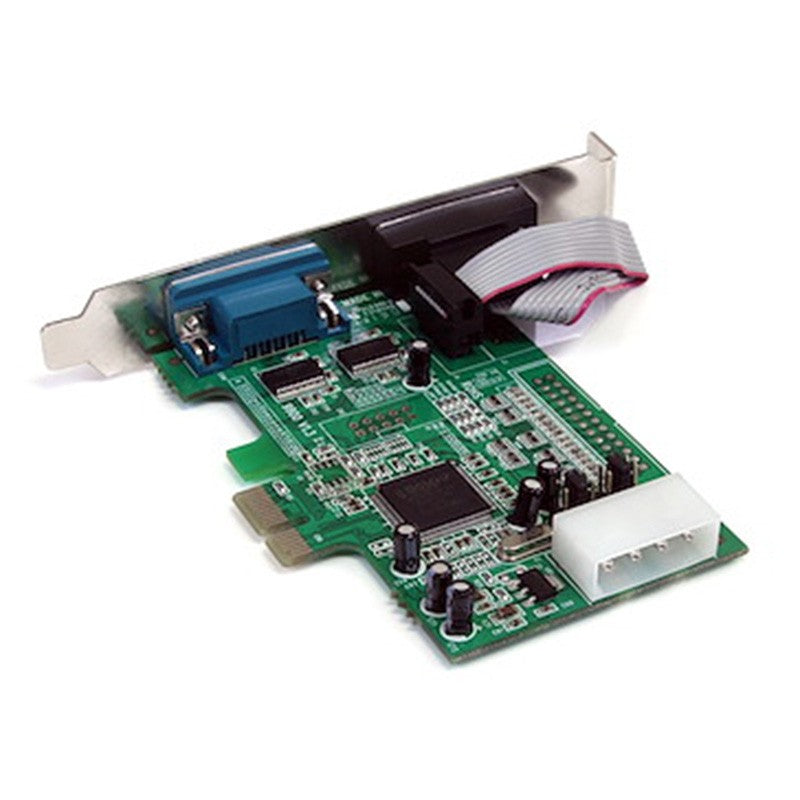

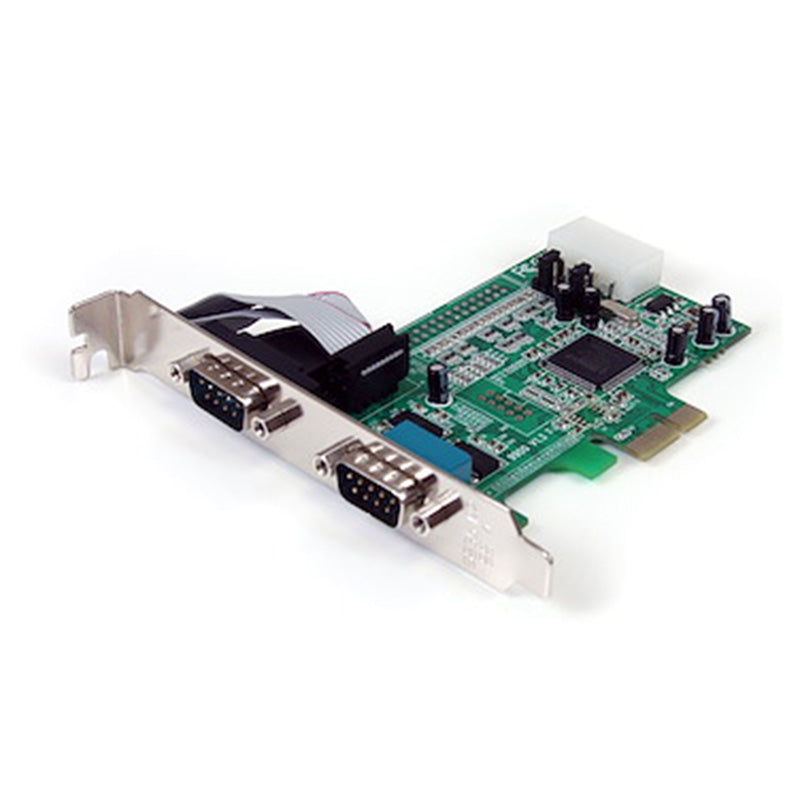

Startech 2-port PCI Express RS232 Serial Adapter Card
The PEX2S553 PCI Express serial card lets you turn a PCI Express slot into 2 RS232 (DB9) serial ports. Based on a native single chip design (no bridge chip), this 2-port serial adapter card allows you to harness the full capability offered by PCI Express (PCIe), and reducing the load applied to the CPU by as much as 48% over conventional serial cards.
The RS232 Serial Adapter Card (PEX2S553) is compatible with a broad range of operating systems including Windows® and Linux Kernel 2.6.11 to 4.11.x, and MAC OS 10.4 and above.
Plus, the serial card includes an optional half-height/low profile bracket that allows the card to be installed in any PCI Express slot, regardless of the size of the computer case.
SPECIFICATIONS:
Connector Type(s) |
1 - PCI Express x1 |
Internal Ports |
1 - LP4 (4 pin; Large Drive Power) |
External Ports |

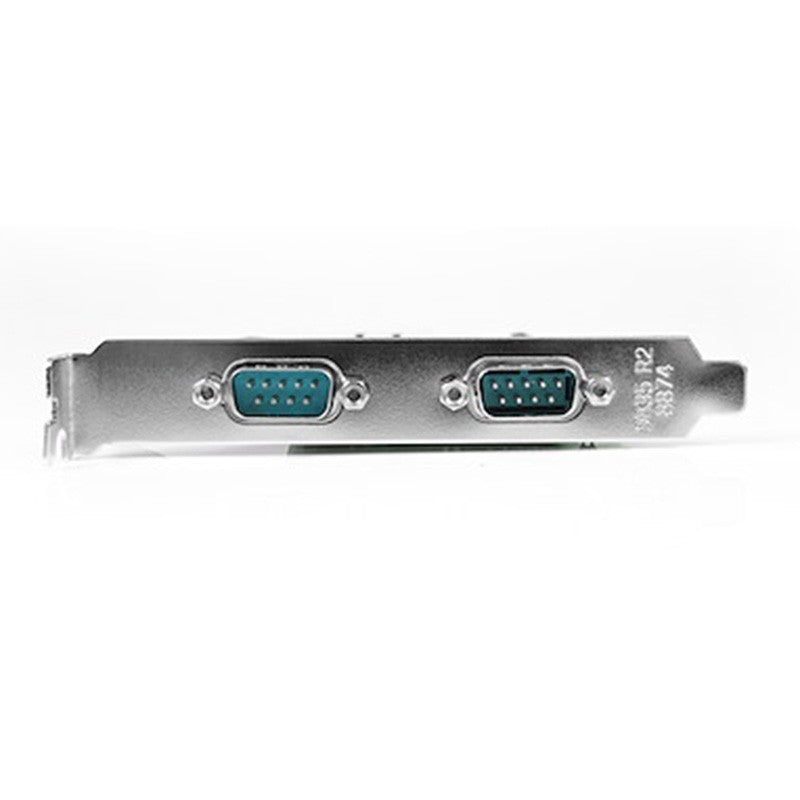

2 - DB-9 (9 pin, D-Sub) |
Operating Temperature |
-10°C to 80°C (14°F to 176°F) |
Storage Temperature |
-20°C to 100°C (-4°F to 212°F) |
Humidity |
5~85% RH |
Ports |
2 |
Interface |
Serial |
Bus Type |
PCI Express |
Card Type |
Standard Profile (LP bracket incl.) |
Port Style |
Integrated on Card |
Chipset ID |
ASIX - MCS9922CV-AA |
Package Height |
1.3 in [32 mm] |
Package Length |
6.7 in [17.0 cm] |
Shipping (Package) Weight |
5.2 oz [148.0 g] |
Package Width |
5.7 in [14.4 cm] |
Package Quantity |
1 |
Serial Protocol |
RS-232 |
Max Baud Rate |
460.8 Kbps |
FIFO |
128 Bytes |
MTBF |
1,378,573 hours |
Weight of Product |
2.2 oz [61 g] |
Color |
Green |
Material |
Steel |
Product Length |
4.1 in [10.5 cm] |
Product Width |
4.7 in [12 cm] |
Product Height |
0.8 in [2 cm] |
OS Compatibility |
Windows® DOS, 95, 98SE, 2000, CE 5.0/6.0, Embedded System 2009, POS Ready 2009, XP Embedded, XP, Vista, 7, 8, 8.1, 10, 11 Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016, 2019, 2022 Mac OS X® 10.4 to 10.10 Linux kernel 2.6.x and up - LTS Versions only |
Note |
Selectable power output on pin 9 of the serial port |

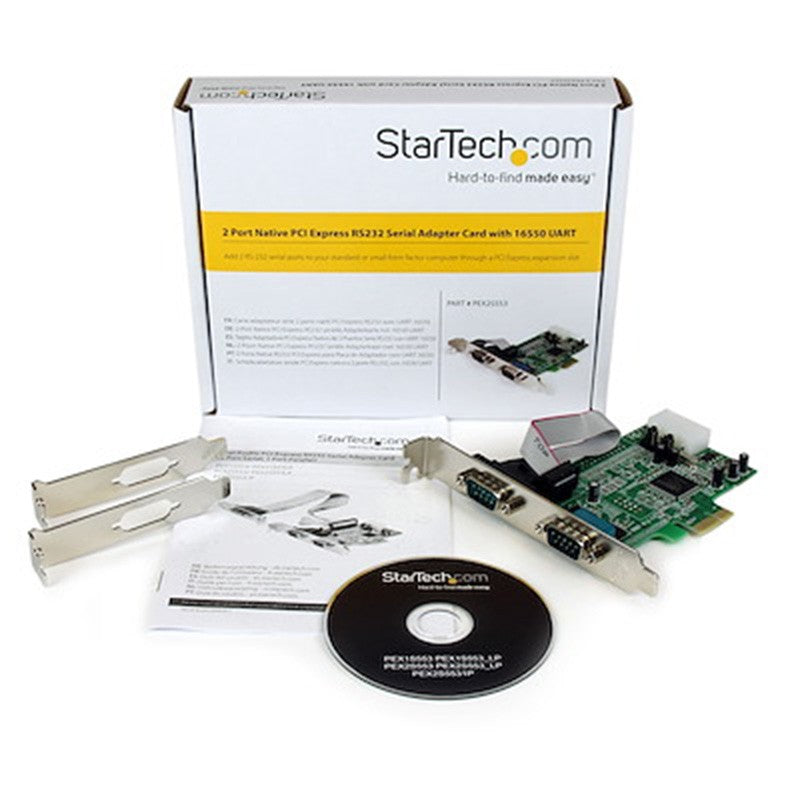

Included in Package |
1 - 2 Port PCI-Express Serial Card 2 - Low Profile Brackets 1 - Driver CD 1 - Instruction Manual |
