Description

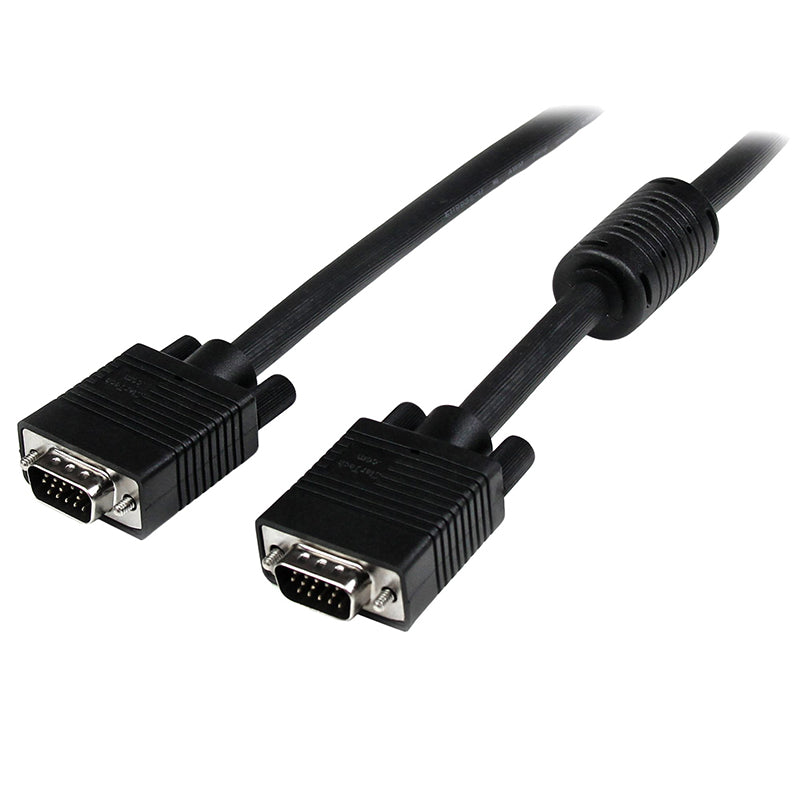

Startech 2m Coax High Resolution Monitor VGA Video Cable - HD15 to HD15 M/M
The MXTMMHQ2M High Resolution VGA Cable (2-meter) is designed to provide the highest video quality possible through VGA, ideally suited for high resolution applications of 1920x1200 and above.
This durably constructed coaxial VGA video cable (HD15 to HD15) eliminates the picture "ghosting" and fuzzy images that are inherent to non-coaxial VGA cables, while delivering superior EMI interference protection by using ferrite cores near the connector ends.
Replace a worn-out or missing VGA monitor cable with this high quality, coax VGA cable
Supports high resolution VGA monitors (1920x1200)
SPECIFICATIONS:
Connector A |
1 - VGA (15 pin, High Density D-Sub) |
Connector B |
1 - VGA (15 pin, High Density D-Sub) |
Operating Temperature |
0 to 60 °C |
Storage Temperature |
-20 to 80 °C |
Humidity |
0 - 80 %RH |
Number of Conductors |
14 |
Connector Plating |
Nickel |
Cable Jacket Material |
PVC - Polyvinyl Chloride |
Cable Shield Material |
Aluminum-Mylar Foil with Braid |
Fire Rating |
CMG Rated (General Purpose) |
Number of Ferrites |
1 |
Package Height |
2.0 in [5.2 cm] |
Package Length |
8.7 in [22.0 cm] |
Package Width |
7.9 in [20.0 cm] |
Package Quantity |
1 |
Shipping (Package) Weight |
10.1 oz [285.0 g] |
Colour |
Black |
Wire Gauge |
28 AWG |
Cable Length |
6.6 ft [2 m] |
Cable OD |
0.4 in [9 mm] |
Product Length |
6.6 ft [2.0 m] |
Product Width |
1.2 in [3.0 cm] |
Product Height |
0.6 in [1.4 cm] |
Weight of Product |
9.7 oz [275.0 g] |
Included in Package |
1 - 2m Coax High Resolution Monitor VGA Cable - HD15 M/M |
