Description
|

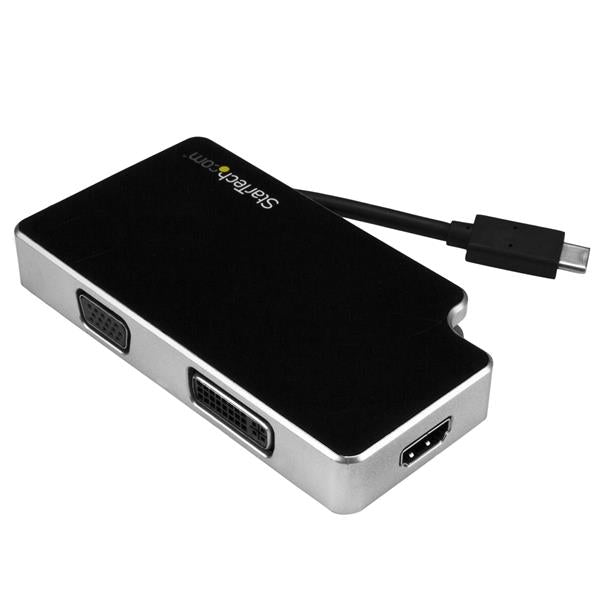

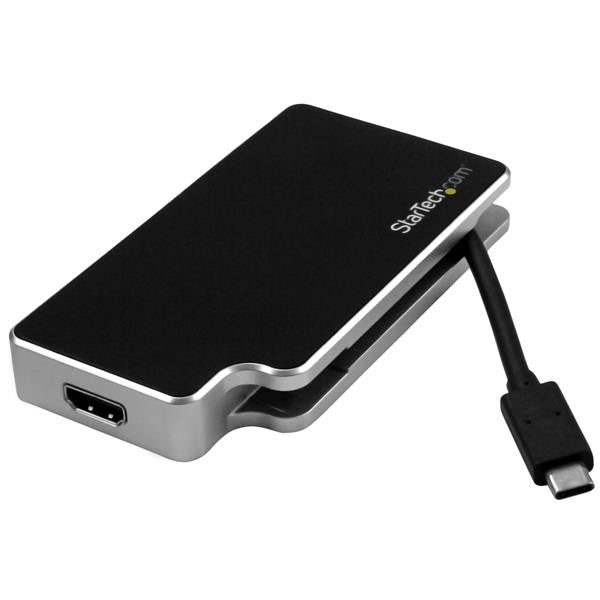

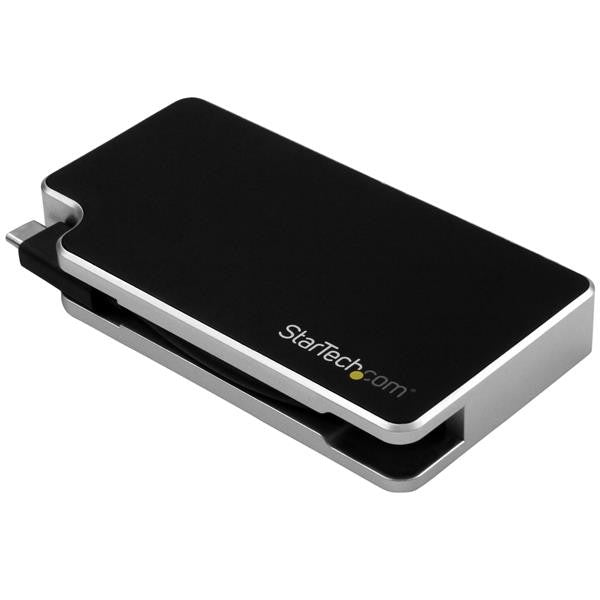

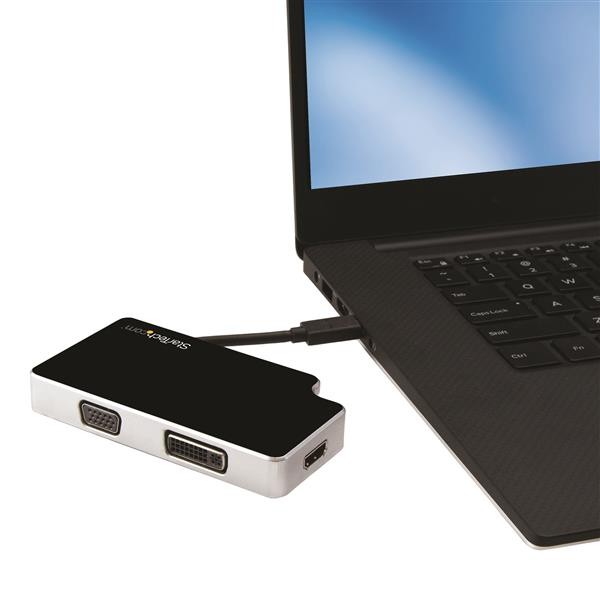

This 3-in-1 travel adapter offers a portable solution for connecting your USB-C computer to a VGA, DVI, or HDMI® display. The travel adapter is compatible with your DP alt mode computer. DP alt mode means your computer can pass a DisplayPort video signal through the USB-C port. |
| Warranty | 2 Years |
| Active or Passive Adapter | Active |
| Adapter Style | Adapters |
| Chipset ID | Cypress - CYPD2120-24LQXIT Cypress - CY7C65217 Analogix - ANX9847FN-AA-R MegaChips - MCDP2850-BC |
| Converter Type | Travel A/V Adapters |
| Output Signal | HDMI VGA DVI-D (DVI Digital) |
| Audio Specifications | HDMI output - 7.1 surround sound |
| General Specifications | Only one video output is supported on the video adapter at a time. If multiple connections are made, only one of the outputs will function. |
| Maximum Analog Resolutions | 1920 x 1200 @ 60Hz |
| Maximum Digital Resolutions | 3840 x 2160 @ 30Hz |
| Supported Resolutions |
HDMI output: 3840 x 2160, 2560 x 1600, 1920 x 1200, 1920 x 1080, 1280 x 720 DVI and VGA output: 1920 x 1200, 1920 x 1080, 1280 x 720 |
| Video Revision | DisplayPort 1.2 |
| Wide Screen Supported | Yes |
| Connector A | 1 - USB-C (24 pin) DisplayPort Alt Mode Male Input |

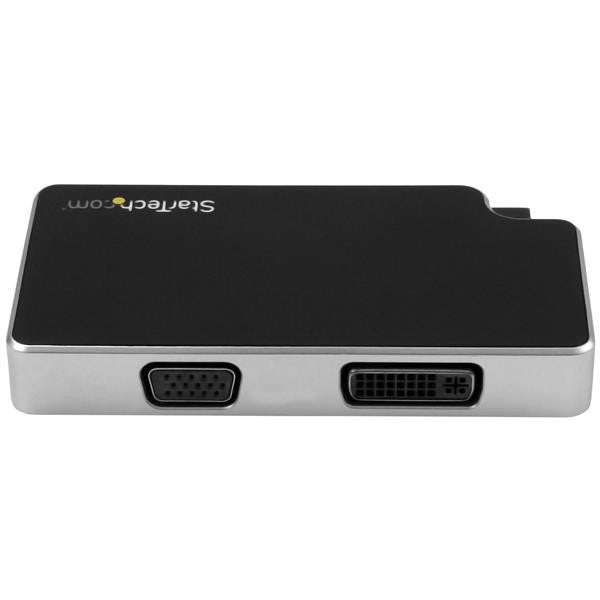

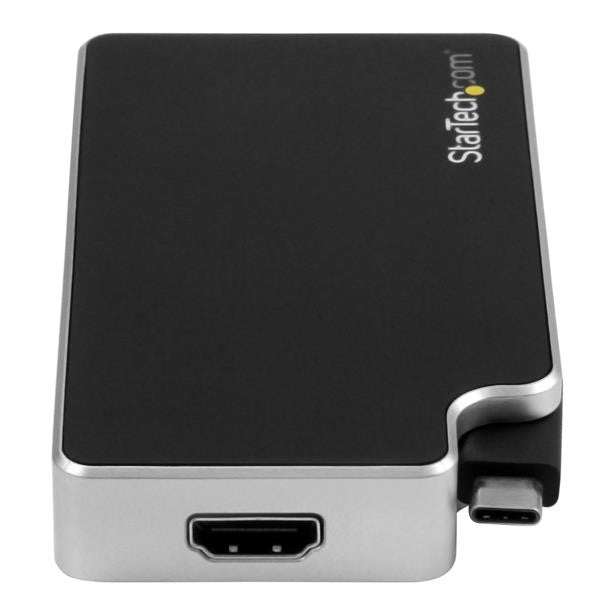

| Connector B | 1 - VGA (15 pin, High Density D-Sub) Female Output 1 - DVI-I (29 pin) Female Output 1 - HDMI (19 pin) Female Output |
| System and Cable Requirements | Your USB-C port must support DisplayPort over USB-C (DP Alt mode) in order to work with this adapter. |
| PHYSICAL CHARACTERISTICS | Accent Color Black Cable Length 90 mm [3.5 in] Color Black Enclosure Type Aluminum Product Height 18 mm [0.7 in] Product Length 110 mm [4.3 in] Product Weight 67 g [2.4 oz] Product Width 60 mm [2.4 in] |
