Description
SPECIFICATIONS:
CONNECTOR(S) |
|
Connector Type(s) |

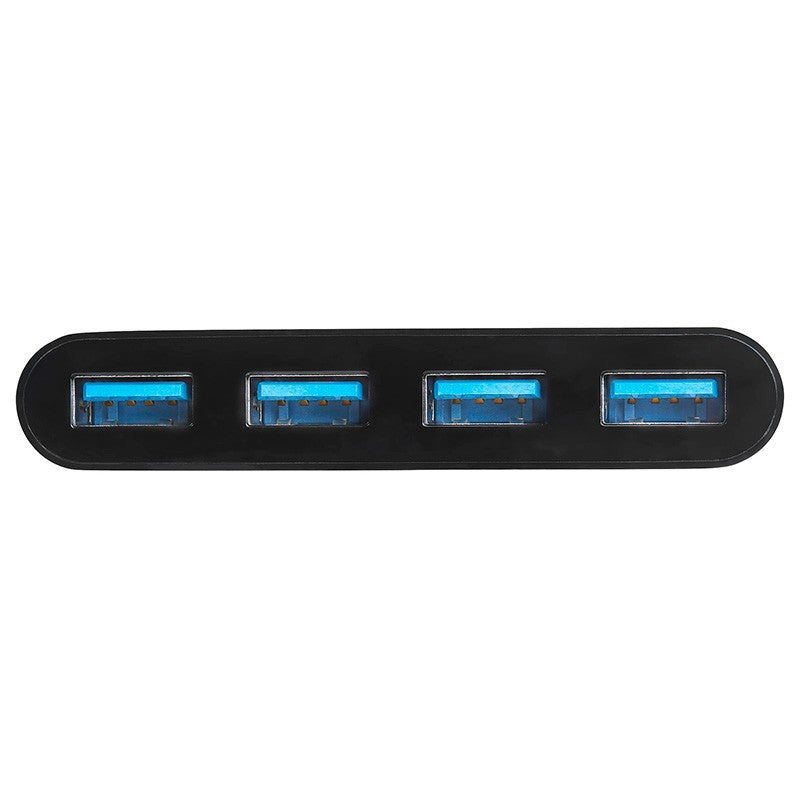

4 - USB Type-A (9 pin, 5 Gbps) 1 - USB 3.2 Type-C (24 pin, Gen 1, 5Gbps) |
ENVIRONMENTAL |
|
Operating Temperature |
0°C to 45°C (32°F to 113°F) |
Storage Temperature |
-10°C to 70°C (14°F to 158°F) |
Humidity |
10%-85%RH |
HARDWARE |
|
USB-C Device Port(s) |
No |
USB-C Host Connection |
Yes |
Fast-Charge Port(s) |
No |
Ports |
4 |
Interface |
USB 3.2 Gen 1 (5Gbps) |
Bus Type |
USB 3.2 Gen 1 (5Gbps) |
Industry Standards |
USB 3.0 - Backward compatible with USB 2.0 and 1.1 |
Chipset ID |
VIA/VLI - VL817 |
PACKAGING INFORMATION |
|
Package Height |
30.0 mm [1.2 in] |
Package Length |
17.0 cm [6.7 in] |
Shipping (Package) Weight |
108.0 g [3.8 oz] |
Package Width |
14.2 cm [5.6 in] |
PERFORMANCE |
|
Maximum Data Transfer Rate |
5 Gbps |
Type and Rate |
USB 3.0 - 5 Gbit/s |
PHYSICAL CHARACTERISTICS |
|
Form Factor |
Compact |
Colour |
Black |
Material |
Plastic |
Cable Length |
146 mm [5.7 in] |
Product Length |
80.0 mm [3.1 in] |
Product Width |
175.0 mm [6.9 in] |
Product Height |
1.4 cm [0.6 in] |
Weight of Product |
100.0 g [3.5 oz] |
POWER |
|
Power Source |
USB-Powered |
SOFTWARE |
|
OS Compatibility |
OS Independent; No additional drivers or software required |
SPECIAL NOTES / REQUIREMENTS |
|
System and Cable Requirements |
Available USB Type-C port - USB 3.0 (5Gbps) |
Note |
USB 3.0 is also known as USB 3.1 Gen 1; this connectivity standard offers speeds up to 5Gbps. |
WHAT'S IN THE BOX |
|
Included in Package |

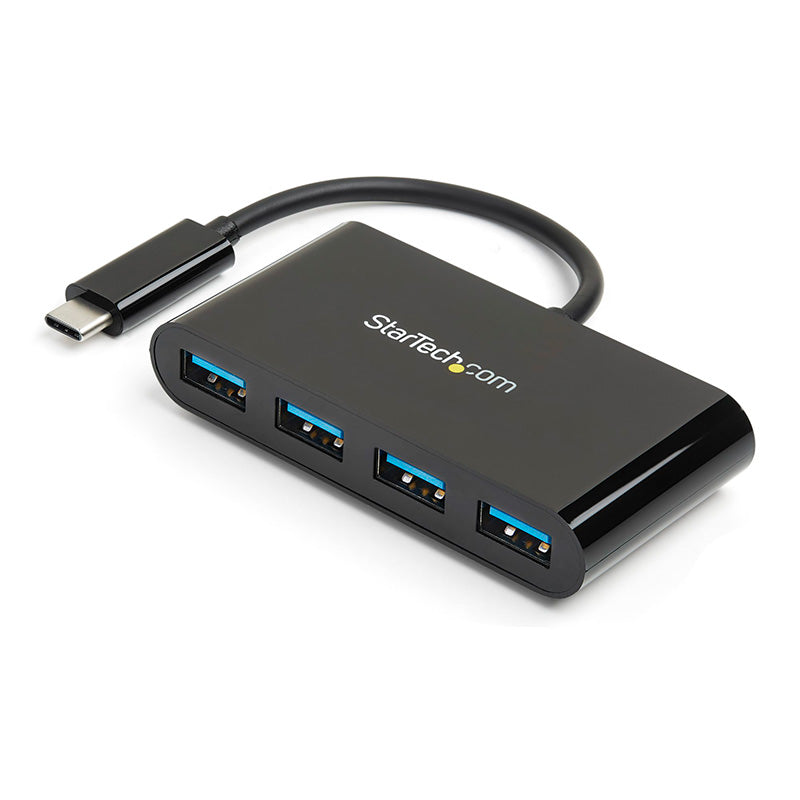

1 - 4-port USB 3.0 hub |
