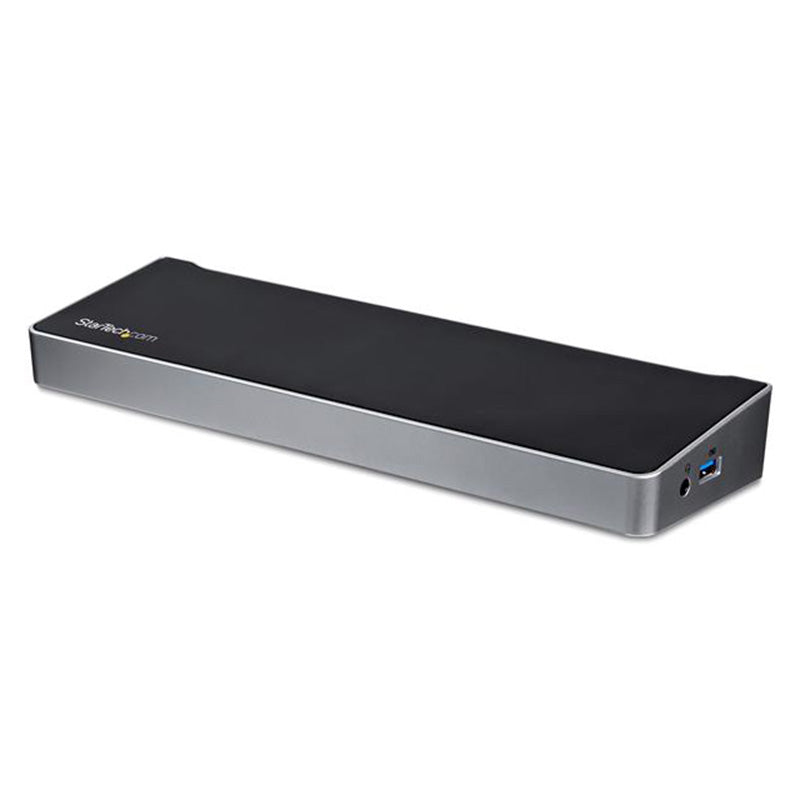

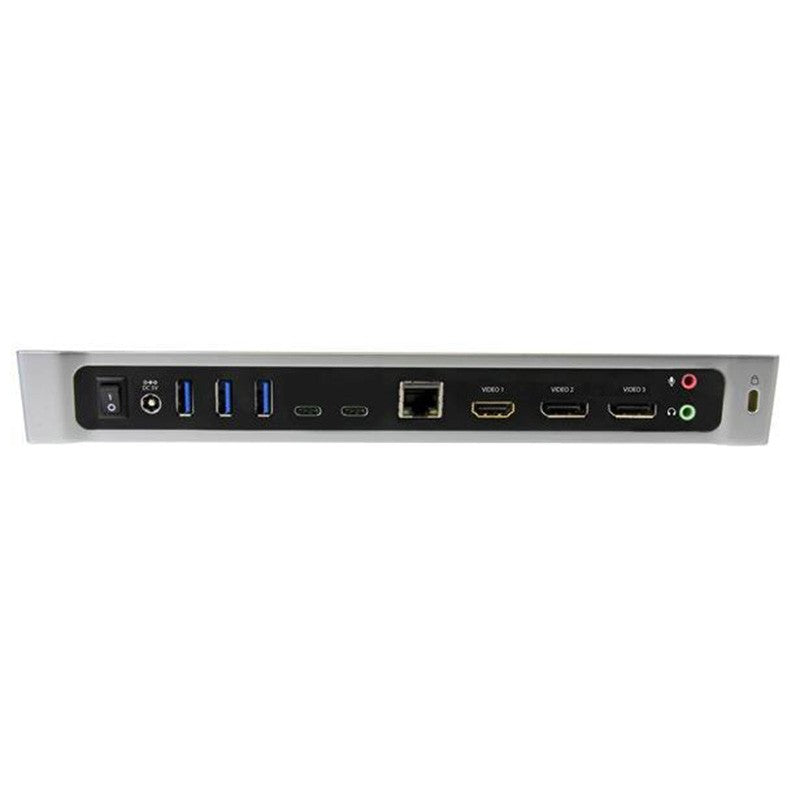

Startech 4K Laptop Docking Station USB-C Triple Monitor 60W PowerDelivery DP+HDMI 5xUSB3.0

Operating Temperature

0°C to 60°C (32°F to 140°F)

Storage Temperature

-20°C to 60°C (-4°F to 140°F)

Humidity

0~95% RH

4K Support

Yes

Fast-Charge Port(s)

Yes

Displays Supported

3

Bus Type

USB-C

Compatible Lock Slot

Kensington Standard Slot (K-Slot)

Industry Standards

USB Power Delivery Specification Rev. 2.0

USB Battery Charging Specification Rev. 1.2

DisplayPort 1.2

IEEE 802.3, IEEE 802.3u, IEEE 802.3ab

USB 3.0 - Backward compatible with USB 2.0 and 1.1

Chipset ID

DisplayLink - DL-6950

Genesys Logic - GL3523

Texas Instruments - TPS65982

Parade Technologies - PS176

Shipping (Package) Weight

3.1 lb [1.4 kg]

Package Quantity

1

Package Length

11.7 in [29.6 cm]

Package Width

6.3 in [16.1 cm]

Package Height

2.8 in [71 mm]

Maximum Data Transfer Rate

5 Gbps (USB 3.0)

2 Gbps (Ethernet; Full-Duplex)

Maximum Digital Resolutions

1x HDMI (DP Alt Mode) - 4096 x 2160p @24Hz / 3840 x 2160p @30Hz

2x DisplayPort (DisplayLink) - 4096 x 2160p @60Hz / 3840 x 2160p   @60Hz

1x 5K DisplayPort using 2 DP video ports - 5120 x 2880 @60Hz

Lower resolutions are also supported. For example, if the max is 3840 x 2160p (4K), it also supports 2560 x 1600p and 2560 x 1440p.

Type and Rate

USB 3.0 - 5 Gbit/s

UASP Support

Yes

Compatible Networks

10/100/1000 Mbps

Auto MDIX

Yes

Full Duplex Support

Yes

Colour

Black & Silver

Material

Plastic

Product Length

10.6 in [27 cm]

Product Width

3.2 in [82 mm]

Product Height

1.3 in [3.4 cm]

Weight of Product

13.6 oz [385 g]

Power Source

AC Adapter Included

Power Delivery

60W

Input Voltage

20V DC

Input Current

2 A

Output Voltage

20V DC

Output Current

6 A

Center Tip Polarity

Positive

Plug Type

N

OS   Compatibility

Windows® 7, 8, 8.1, 10, 11

macOS 10.9 - 10.12, 10.14 - 10.15, 11.0, 12.0, 13.0

Ubuntu 18.04, 20.04

Chrome OS™ v55+

Note

·           Not all USB-C ports support the full functionality of the USB Type-C standard. Ensure that your host USB-C port supports USB Power Delivery 2.0 and DP alt mode.

·           4K resolution is   supported on all 3 video ports. A 4K-capable DisplayPort display is required   to achieve 4Kx2K resolutions

·           If connected to a USB 2.0 host port, or if using a USB 2.0 host connection cable, performance may   be limited (USB 3.0 host cable included)

·           USB 3.0 is also known as USB 3.1 Gen 1; this connectivity standard offers speeds up to 5Gbps

·           5K resolution is supported by connecting the two DisplayPort video ports to a single 5K display. A 5K-capable display is required to achieve 5K (5120 x 2880 60Hz) resolutions

·           The dock connects to the USB-C port on your laptop. The dock can also be connected to the USB-A port on laptops using a USB-C to A cable, sold separately, but only dual display is supported, and Power Delivery to charge your laptop is not available through USB-A

·           DisplayLink docking stations and video adapters support more than one external display on Apple's M1-based Mac. Requires driver installation. Please contact StarTech.com support for a recommendation based on your specific setup.

System and   Cable Requirements

USB-C enabled computer with an available USB Type-C port

Included in Package

1 - docking station

1 - USB-C cable

1 - universal power adapter (NA/JP, ANZ)

1 - instruction manual

1 - add anti-slip rubber pads
