Description

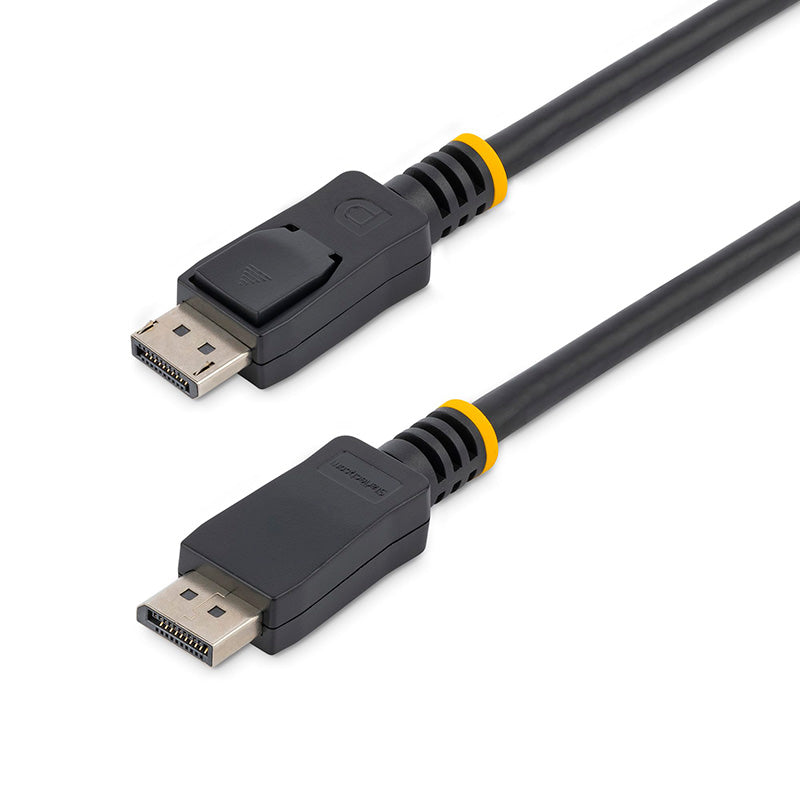

Startech 5m DisplayPort Cable with Latches M/M
The DISPL5M DisplayPort™ 1.2 Cable with latches provides a secure connection between your DisplayPort-equipped devices and allows for a connection distance of up to 5-meters between your source and display.
The DP cable is capable of providing higher performance than either HDMI® or dual link DVI with support for high resolutions of up to 4k x 2k (4096 x 2160) @ 60Hz and a maximum HBR2 bandwidth of 21.6 Gbps.
The cable also supports Multi-Stream (MST) for daisy chaining multiple monitors and provides optional audio support.
SPECIFICATIONS:
Connector A |
1 - DisplayPort (20 pin) |
Connector B |
1 - DisplayPort (20 pin) |
Number of Conductors |
19 |
Connector Plating |
Nickel |
Cable Jacket Material |
PVC - Polyvinyl Chloride |
Cable Shield Material |
Aluminum-Mylar Foil with Braid |
Fire Rating |
CMG Rated (General Purpose) |
Package Height |
1.7 in [4.3 cm] |
Package Length |
13.0 in [33.0 cm] |
Package Width |
9.9 in [25.2 cm] |
Package Quantity |
1 |
Shipping (Package) Weight |
13.8 oz [390.0 g] |
Product Height |
0.4 in [1.1 cm] |
Product Width |
0.8 in [2.0 cm] |
Colour |
Black |
Connector Style |
Latching |
Wire Gauge |
26/28 AWG |
Cable Length |
16.4 ft [5 m] |
Cable OD |
0.3 in [7.3 mm] |
Product Length |
16.4 ft [5.0 m] |
Weight of Product |
13.3 oz [378.0 g] |
Included in Package |
1 - 5m Latching DisplayPort Cable |
