Description

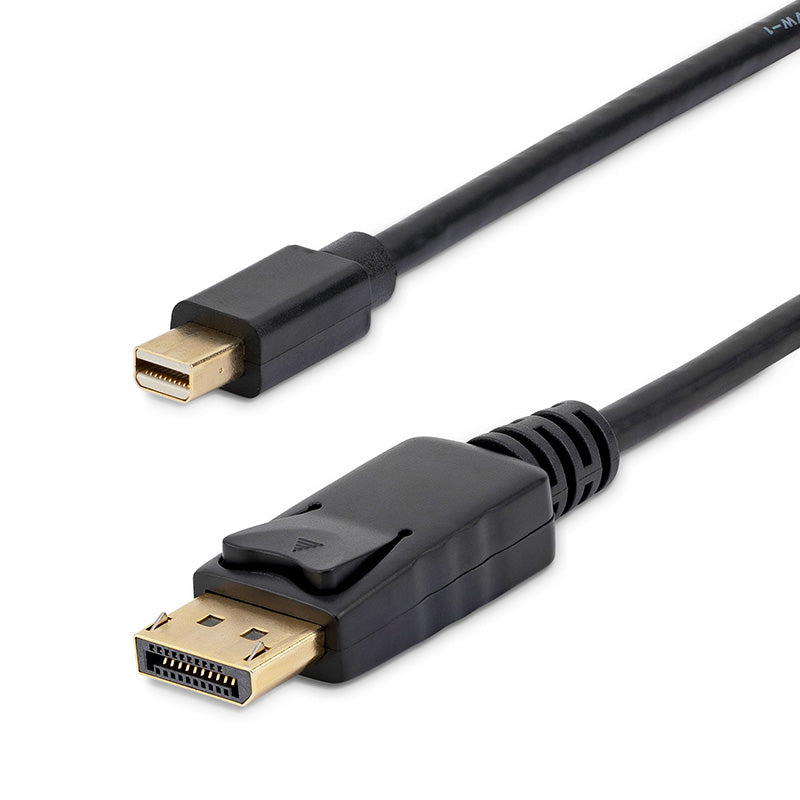

Startech 6 ft / 2m Mini DisplayPort to DisplayPort Adapter Cable
The MDP2DPMM6 6ft Mini DisplayPort™ to DisplayPort Adapter Cable, features a Mini DP male connector on one end, and a DP male connector on the other, allowing you to connect any Mini DisplayPort-equipped laptop (including the Mac® family of products) to an HDTV, monitor or projector that uses a standard DisplayPort connection. The mDP to DP cable supports high resolutions of up to 4k x 2k (3840 x 2160) @ 60Hz with a maximum HBR2 bandwidth of 21.6 Gbps. The cable also supports Multi-Stream (MST) for daisy chaining multiple monitors and provides optional audio support.
SPECIFICATIONS:
Connector A |
1 - Mini-DisplayPort (20 pin) |
Connector B |
1 - DisplayPort (20 pin) |
Operating Temperature |
0°C to 45°C (32°F to 113°F) |
Storage Temperature |
-10°C to 70°C (14°F to 158°F) |
Humidity |
10%-85% RH |
Number of Conductors |
19 |
Connector Plating |
Gold |
Cable Jacket Material |
PVC - Polyvinyl Chloride |
Fire Rating |
CMG Rated (General Purpose) |
Package Height |
0.4 in [1.1 cm] |
Package Length |
8.7 in [22.0 cm] |
Shipping (Package) Weight |
2.8 oz [78.0 g] |
Package Width |
7.9 in [20.0 cm] |
Package Quantity |
1 |
Maximum Digital Resolutions |
4k x 2k (3840 x 2160) @ 60Hz |
Weight of Product |
2.4 oz [69.0 g] |
Colour |
Black |
Wire Gauge |
32 AWG |
Cable Length |
6.0 ft [1.8 m] |
Cable OD |
0.2 in [4.8 mm] |
Product Length |
6.0 ft [1.8 m] |
Product Width |
0.8 in [2.0 cm] |
Product Height |
0.5 in [1.2 cm] |
Included in Package |
1 - 6ft Mini-DisplayPort to DisplayPort 1.2 Cable |
