Description

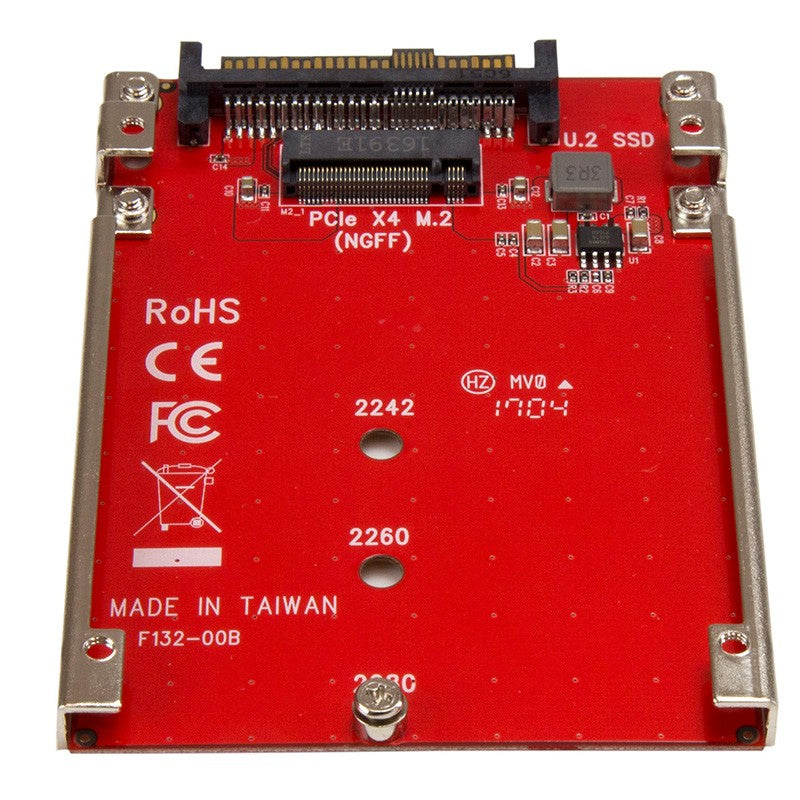

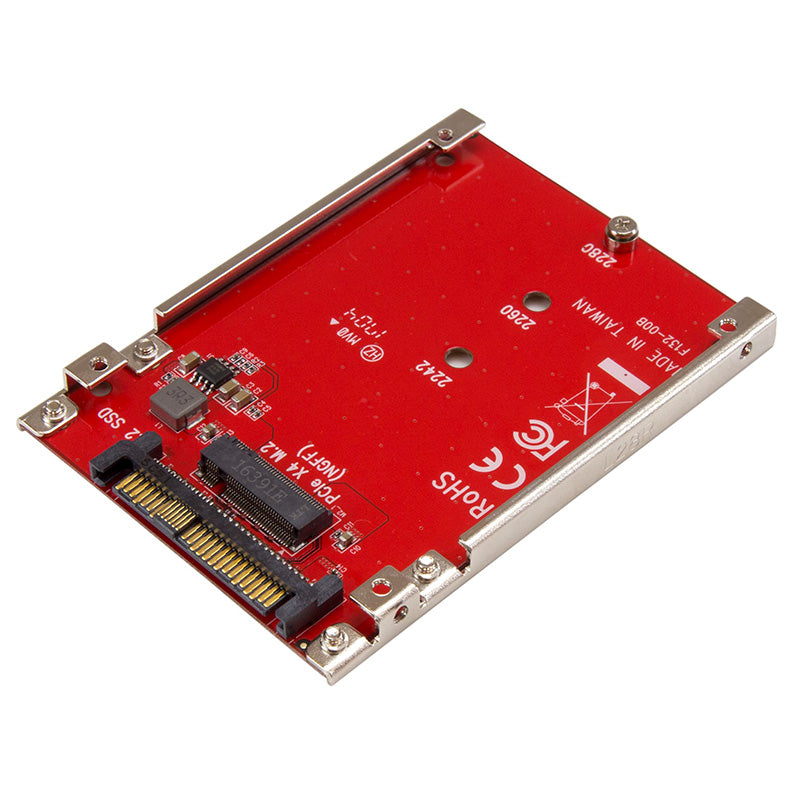

This PCI Express M.2 to U.2 adapter makes it easy to install an M.2 PCIe NVMe SSD into your desktop PC or server, and connect to the drive through an available U.2 (SFF-8639) compatible interface on your motherboard.
Upgrade your system cost-effectively
The M.2 to U.2 adapter is ideal for IT professionals, system integrators and installers, and enthusiasts who are building or upgrading a server or desktop computer. It supports one M.2 PCIe NVMe SSD (M-Key), providing a cost-effective way to add M.2 NVMe performance to your computer or server through an available U.2 (SFF-8639) compatible interface on your motherboard.
Easy installation
The M.2 to U.2 adapter works with all desktop PCs and servers that have an available drive bay or a U.2 (SFF-8639) compatible host interface. The adapter card is OS independent, so there are no drivers or software required for installation.
SPECIFICATIONS:
Drive Connectors |
1 - M.2 (PCIe, M-Key, AHCI/NVMe, NGFF) |
Host Connectors |
1 - U.2 (PCIe, SFF-8639, AHCI/NVMe) |
Operating Temperature |
+5⁰C to +50⁰C (41°F to 122°F) |
Storage Temperature |
-25⁰C to +70⁰C (-13°F to 158°F) |
Humidity |
15% - 90% RH |
Fan(s) |
No |
Supported Drive Height(s) |
2242 2260 2280 |
Interface |
U.2 (SFF-8639; PCIe x4) |
Bus Type |
PCI Express |
Number of Drives |
1 |
Compatible Drive Types |
M.2 (PCIe, AHCI, M-Key, NGFF) |
Drive Installation |
Fixed |
Shipping (Package) Weight |
3.6 oz [102 g] |
Package Quantity |
1 |
Package Length |
6.9 in [17.5 cm] |
Package Width |
5.7 in [14.5 cm] |
Package Height |
1.2 in [30 mm] |
Hardware Raid Supported |
No |
Colour |
Red |
Material |
Steel |
Max Drive Height |
89.8 in [2280 mm] |
Product Length |
3.9 in [10 cm] |
Product Width |
2.8 in [70 mm] |
Product Height |
0.3 in [0.7 cm] |
Weight of Product |
1.3 oz [36 g] |
OS Compatibility |
OS independent; No software or drivers required |
Included in Package |
1 - M.2 drive to U.2 adapter 4 - adapter-mounting screws 1 - set of drive-mounting hardware 1 - quick-start guide |
