Description
|

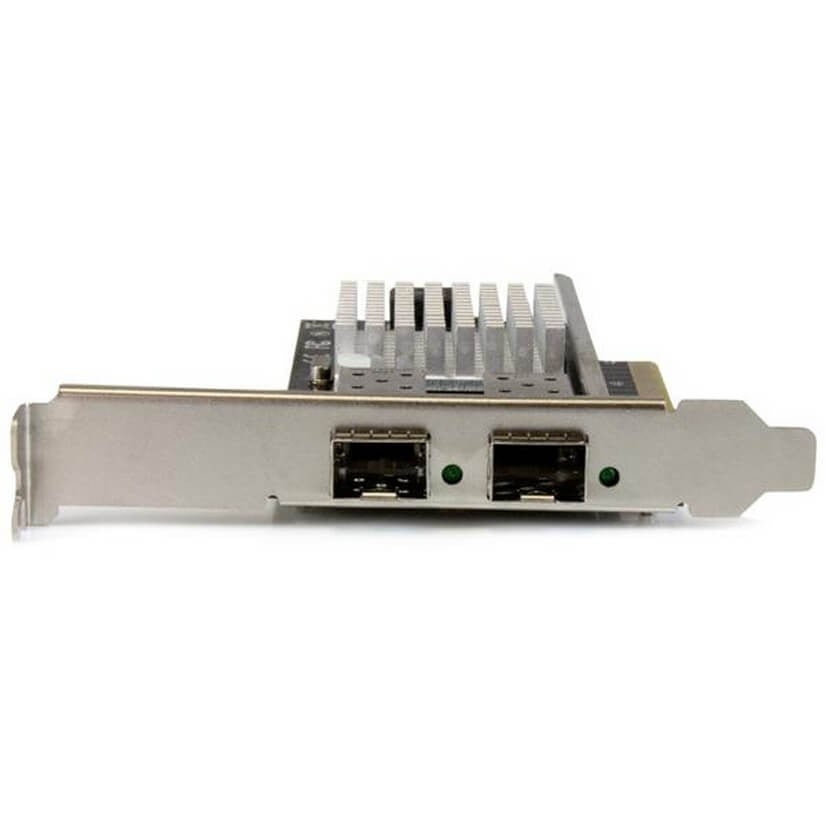

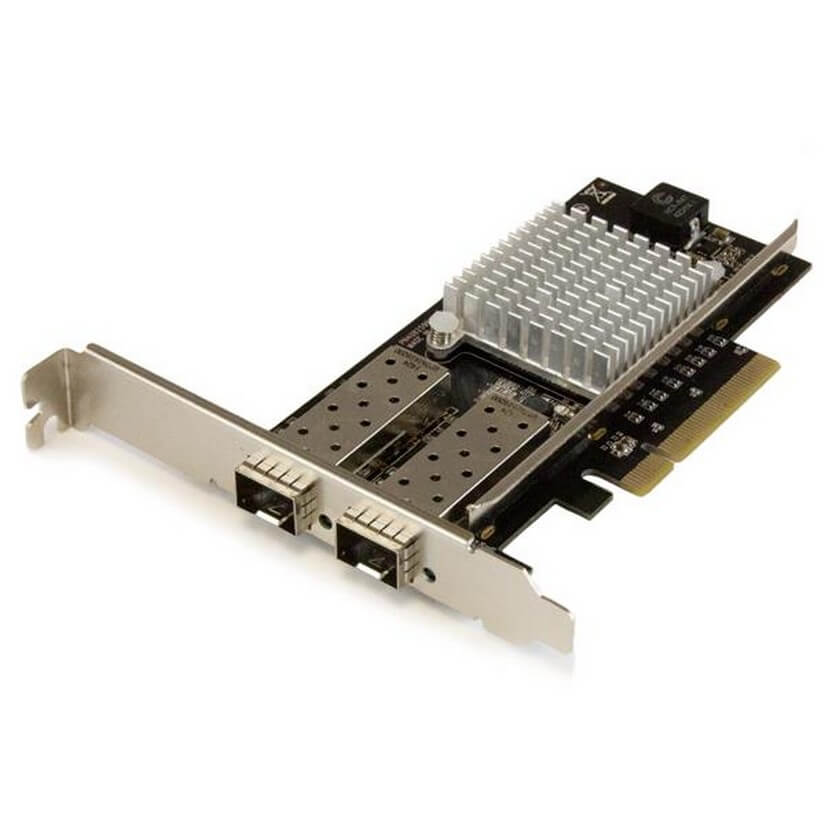

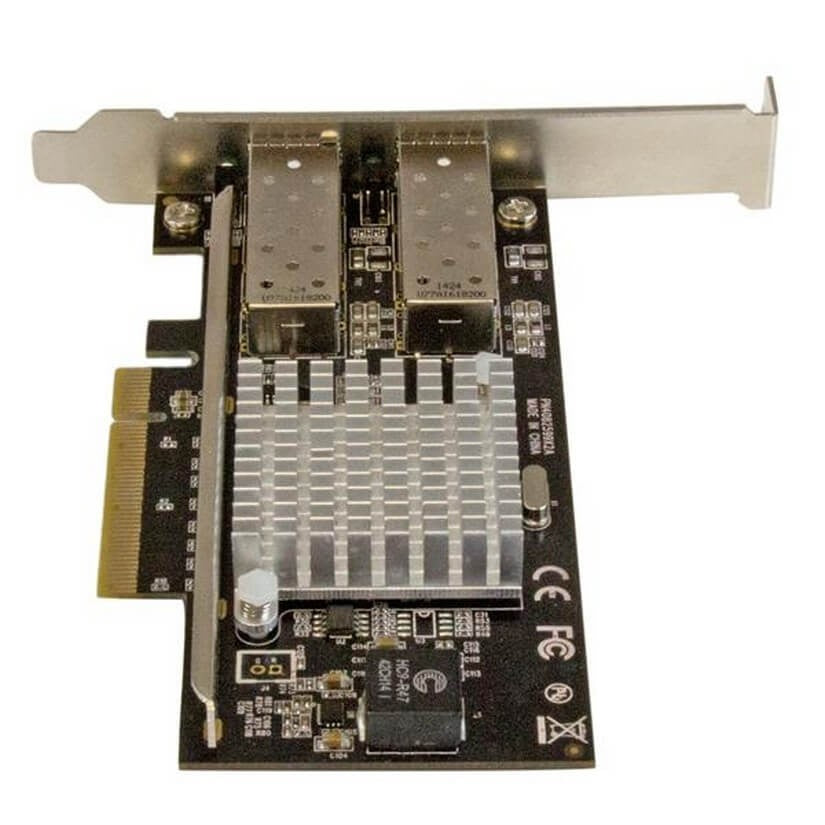

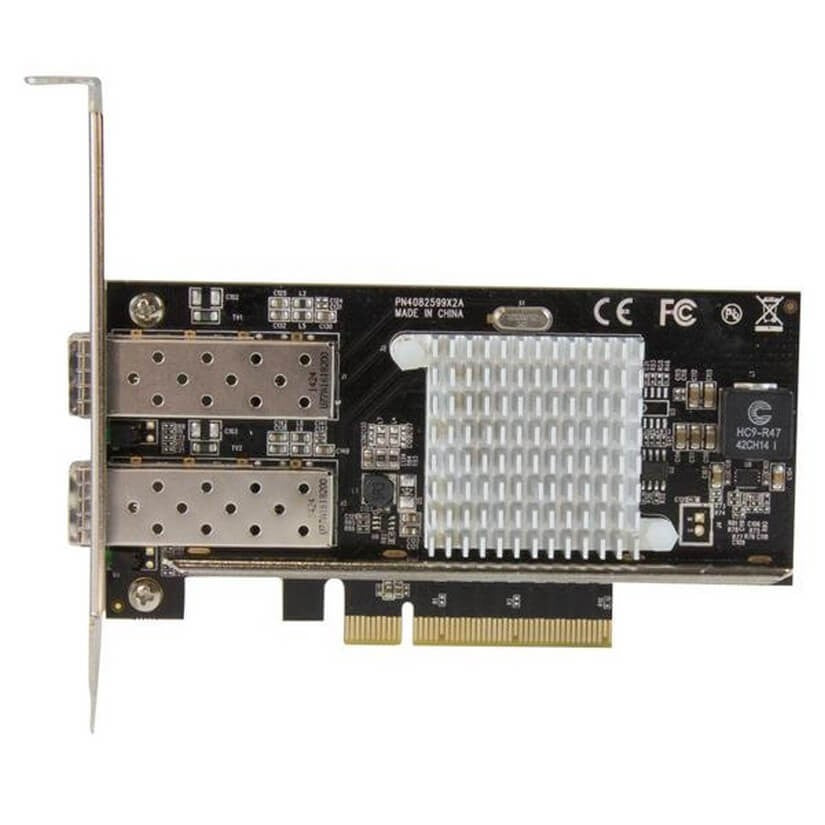

Add two 10GbE SPF+ slots to server or workstation for fast, high bandwidth connectivity Intel 82599 chipset with Intel® Virtualization Technology for connectivity Up to 20Gbps (full duplex) bandwidth per port PXE network boot support Compliant with IEEE 802.3ae (10GBASE-LR/SR only) and IEEE 802.3aq (10GBASE-LRM) Compliant with PCI Express Rev 2.0 specification, using PCIe x8 (or higher) slot Supports IEEE 802.1Q VLAN tagging Support for 802.3ad Link Aggregation Up to 15K jumbo frame support Dual profile (LP bracket included) |
| Warranty | 2 Years |
| Hardware |
Bus Type PCI Express Card Type Standard Profile (LP bracket incl.) Chipset ID Intel - 82599 Industry Standards IEEE 802.3ae (10GBASE-LR/SR only), IEEE 802.3aq (10GBASE-LRM) PCI Express Rev 2.0, using PCIe x8 (or higher) slot Interface Fiber (10 Gigabit Ethernet) Ports 2 |
| Performance | Compatible Networks 10 Gbps Full Duplex Support Yes Jumbo Frame Support 15K max. Maximum Data Transfer Rate 20000 Mbps (20 Gbps) - Full-Duplex Promiscuous Mode Yes Supported Protocols IEEE 802.3ad (Link Aggregation) IEEE 802.3x (2005 Flow Control Support) IEEE 802.1Q (VLAN tagging) |
| Connector(s) |
Connector Type(s) 1 - PCI Express x8 Male Internal Ports 2 - SFP+ Slot Female |
| Physical Characteristics |
Color Black Product Height 4.7 in [120 mm] Product Length 5.3 in [135 mm] Product Weight 3.6 oz [102 g] Product Width 0.7 in [18 mm] |

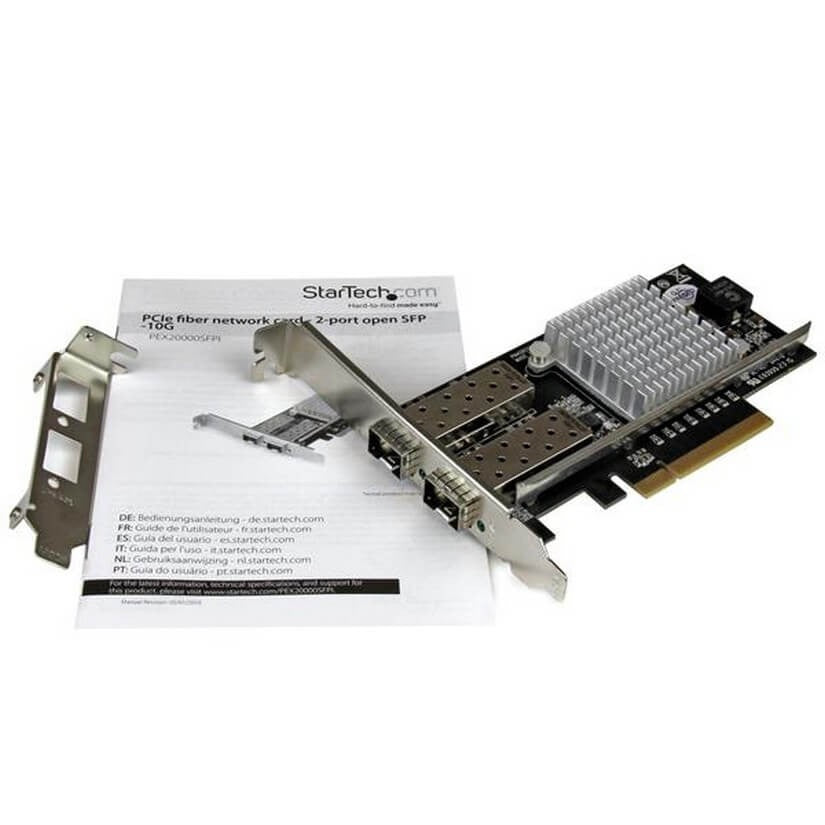

| Included in Package | 1 - PCIe 10GBase Fiber Card 1 - Low-profile bracket 1 - Quick install guide |
