Description
|
Product Name: StarTech ST1000SPEX2L 1-Port PCI Express PCIe Gigabit NIC Server Adapter Network Card - Low Profile
|
|
Model Number: ST1000SPEX2L
|
|
Brand: STARTECH
|
| Manufacturer Warranty: 2 Year- |

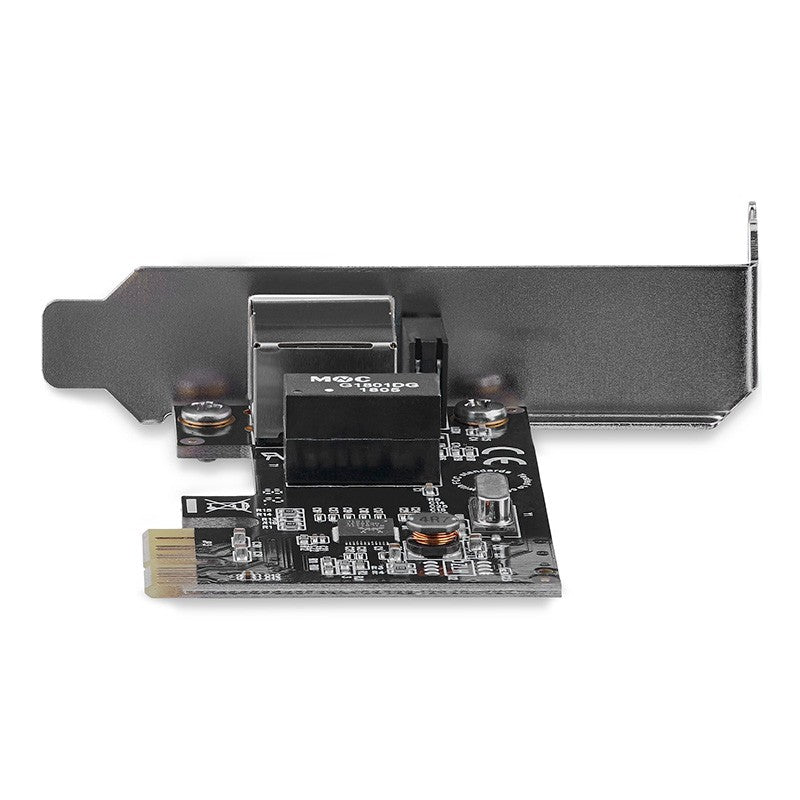

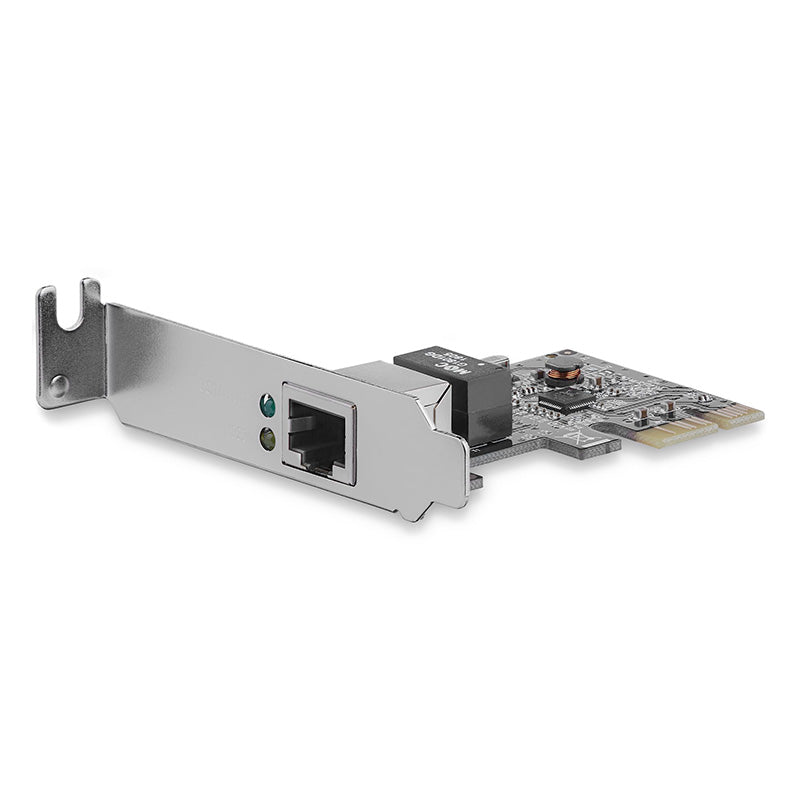

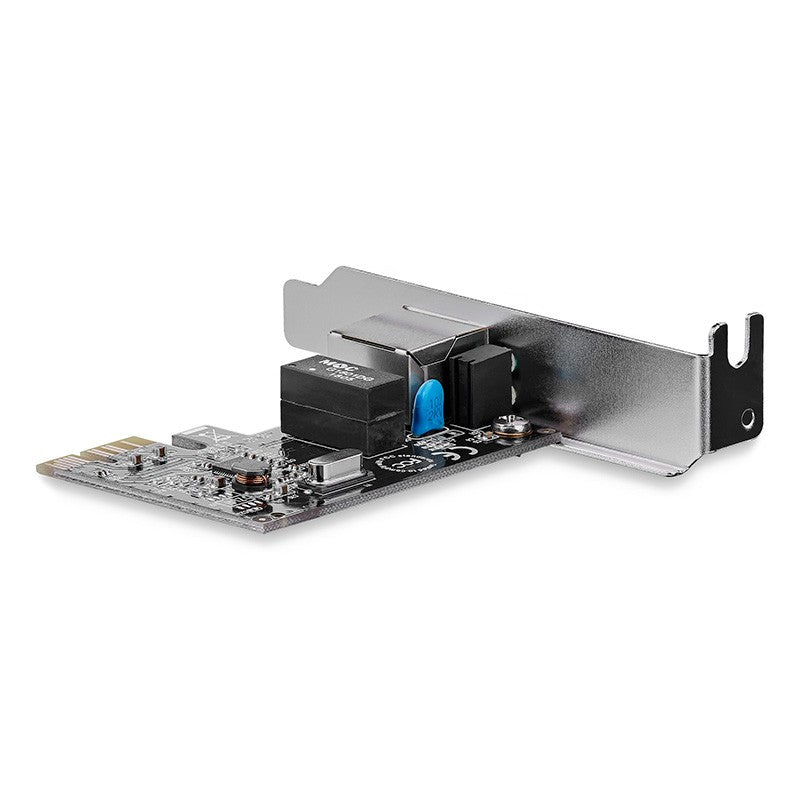

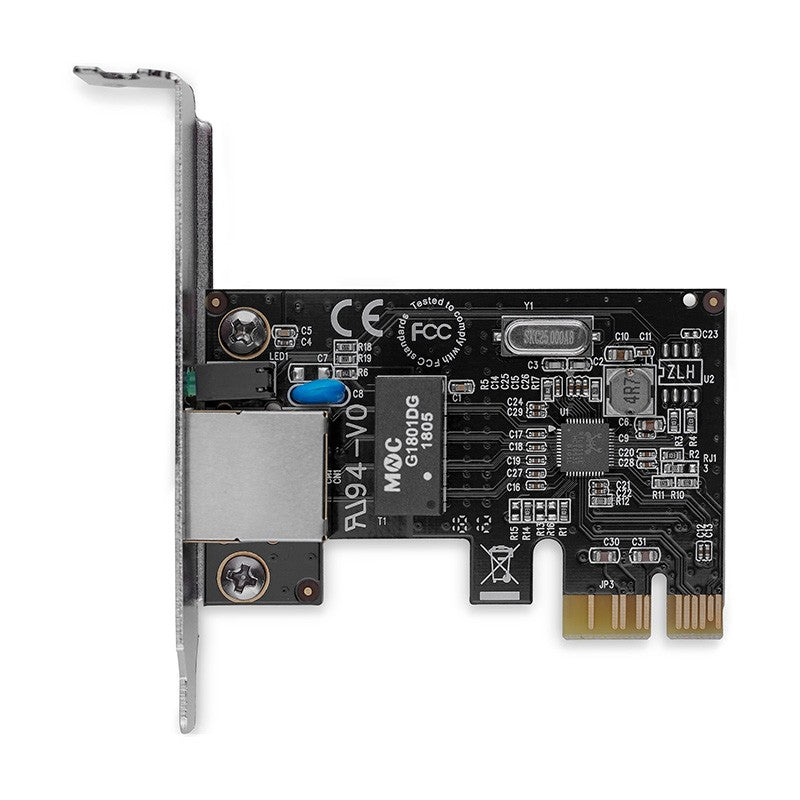

StarTech ST1000SPEX2L 1-Port PCI Express PCIe Gigabit NIC Server Adapter Network Card - Low Profile
The ST1000SPEX2L Low-Profile PCIe Gigabit Network Card adds a 10/100/1000 Mbps compatible RJ45 Ethernet port to a PCI Express-enabled client, server or workstation, providing a convenient addition or replacement networking interface.
Compliant with IEEE 802.3/u/ab standards, and with support for 9K Jumbo Frames, VLAN tagging and Wake on LAN (WOL), this versatile Gigabit NIC/Server Adapter offers effective network performance.
The card comes pre-configured with a low-profile/half-height installation bracket and includes a standard profile bracket for installation in a wide range of computer/server chassis, regardless of form factor.
SPECIFICATIONS:
|
Connector Type(s) |
1 - PCI Express x1 |
|
External Ports |
1 - RJ-45 |
|
Operating Temperature |
0°C to 70°C (32°F to 158°F) |
|
Storage Temperature |
0°C to 100°C (32°F to 212°F) |
|
Humidity |
10% ~ 90% RH |
|
Ports |
1 |
|
Interface |
RJ45 (Gigabit Ethernet) |
|
Bus Type |
PCI Express |
|
Card Type |
Low Profile (SP bracket incl.) |
|
Industry Standards |
IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab |
|
Chipset ID |
Realtek - RTL8111 |
|
LED Indicators |
1 - Gigabit Detect (Yellow) 1 - Link/Activity (Green) |
|
Package Height |
1.2 in [31 mm] |
|
Package Length |
5.7 in [14.4 cm] |
|
Shipping (Package) Weight |
4.4 oz [125 g] |
|
Package Width |
6.8 in [17.3 cm] |
|
Package Quantity |
1 |
|
Maximum Data Transfer Rate |
1000 Mbps |
|
Compatible Networks |
10/100/1000 Mbps |
|
Auto MDIX |
Yes |
|
Full Duplex Support |
Yes |
|
Jumbo Frame Support |
9K max. |
|
Supported Protocols |
CSMA/CD |
|
Weight of Product |
1.0 oz [27 g] |
|
Colour |
Black |
|
Material |
Steel |
|
Product Length |
2.8 in [70 mm] |
|
Product Width |
0.7 in [18 mm] |
|
Product Height |
1.9 in [4.9 cm] |
|
Input Voltage |
12V DC |
|
Output Voltage |
12V DC |
|
OS Compatibility |
Windows® 2000, XP, Vista, 7, 8, 8.1, 10, 11 Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016, 2019 Mac OS X® 10.6 to 10.9 Linux 2.4.x and up - LTS Versions only |
|
System and Cable Requirements |
Available PCI Express expansion card slot |
|
Included in Package |
1 - Gigabit Ethernet PCI Express Card 1 - Standard Profile Bracket 1 - Instruction Manual |
